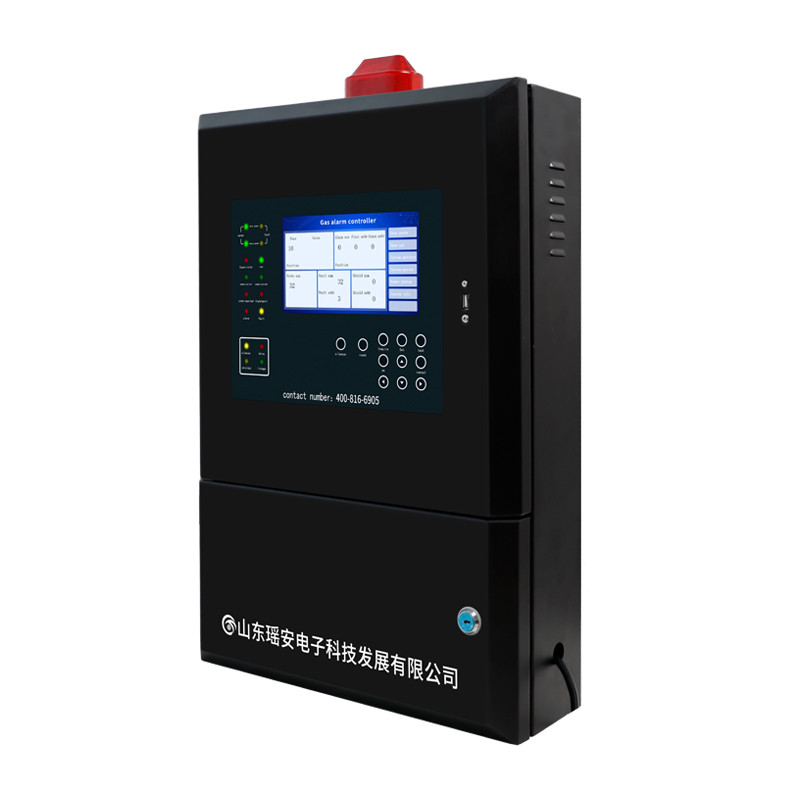

Wall mounted Gas alarm control panel gas detector controller with LED display gas detector controller

Contact Now

Quick Details (View All)

Place of Origin	Shandong, China	Brand Name	YAOAN
Model Number	YA-K210	Product name	Intelligent multi-channel Gas Alarm Detection Controller
Certification	CE	Power supply	AC220Vu00b115% 50~60Hz
Language support	ENGLISH	Alarm Output	RS485,4-20mA
Display	LCD display	Backup Battery	Optionable
Operating Temperature	-20~50u2103;<95%RH	Warranty	12 Months Gurantee
Keyword	Multifunction Gas Alarm Detection Controller

Product Details

Product Discription

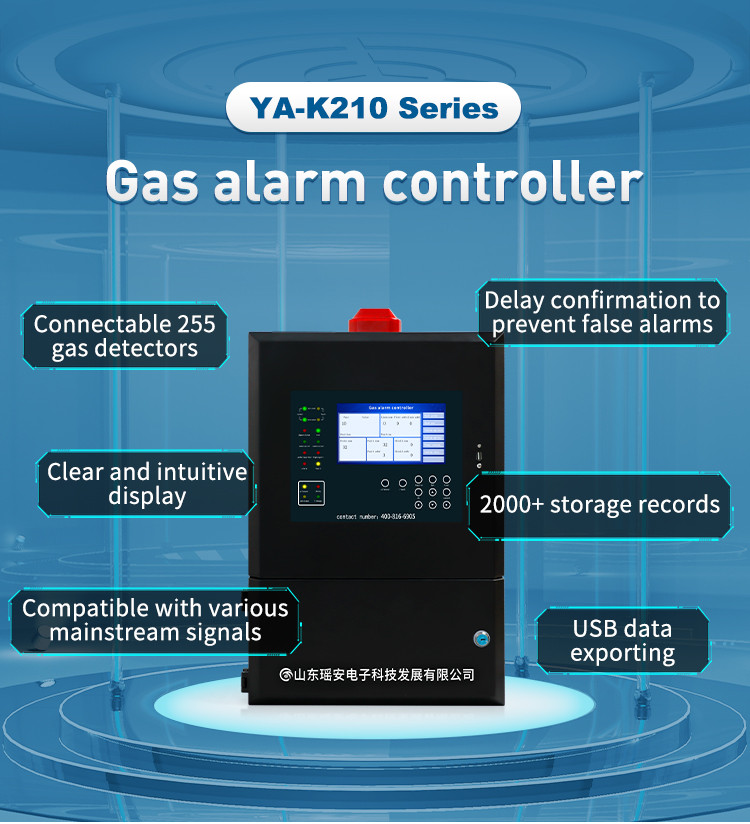

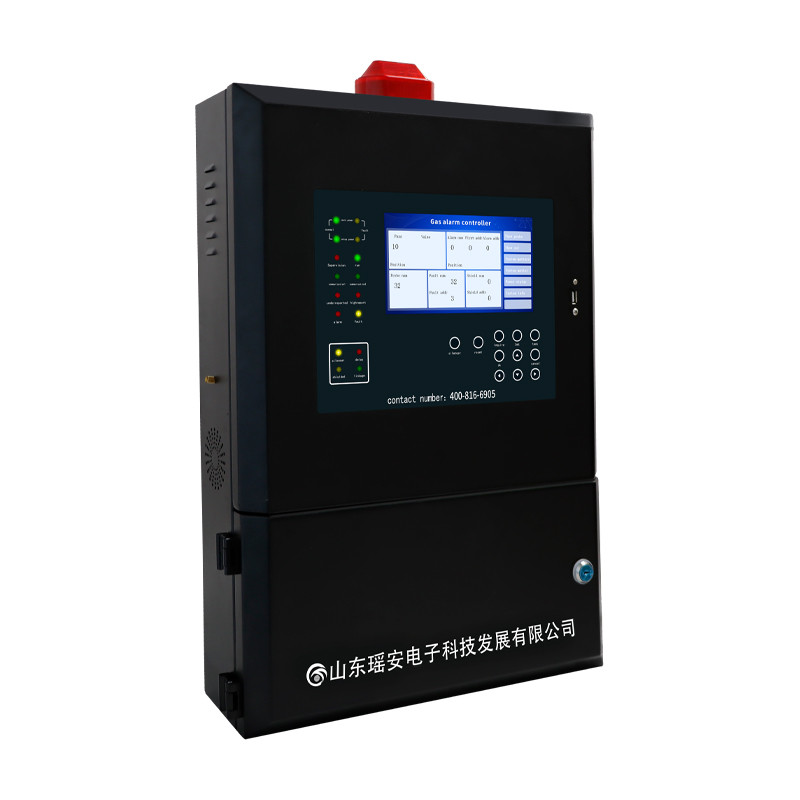

Gas alarm control panel

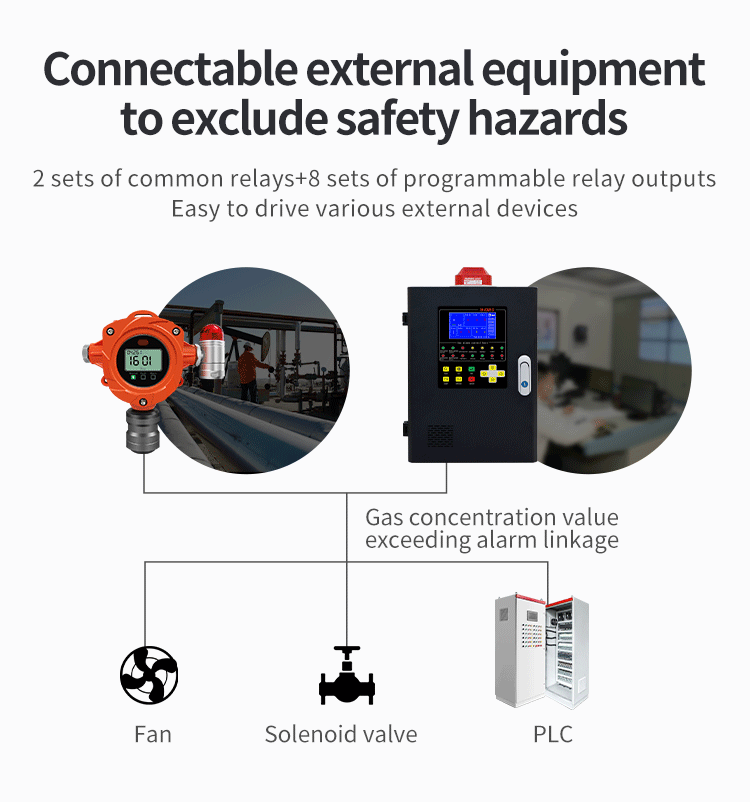

YA-K210 This alarm is a hot-selling multi-channel gas alarm controller of our company. It can continuously monitor and display the concentration of flammable and toxic gases in the environment, and can also monitor oxygen, temperature and humidity, and dust related values. Real-time display and sound and light alarm can be displayed in the control room or duty room, and it can be linked with other external equipment for control. The alarm also adopts domestic advanced PWM power control technology, which makes the alarm stable and reliable. It has the advantages of fast response speed and strong anti-interference ability. At the same time, the alarm can be customized according to the requirements of the site environment, and is suitable for various complex monitoring environments. Continuous operation with optional high-performance backup power

ITEM	VALUE
Power supply	Main power supply: AC220V±15% 50～60Hz Backup power supply: two DC12V 9AH rechargeable lead-acid batteries
Power	≤20W
Output power supply voltage	DC24V±25%
Supporting detector model	Supporting detector model YA-D series

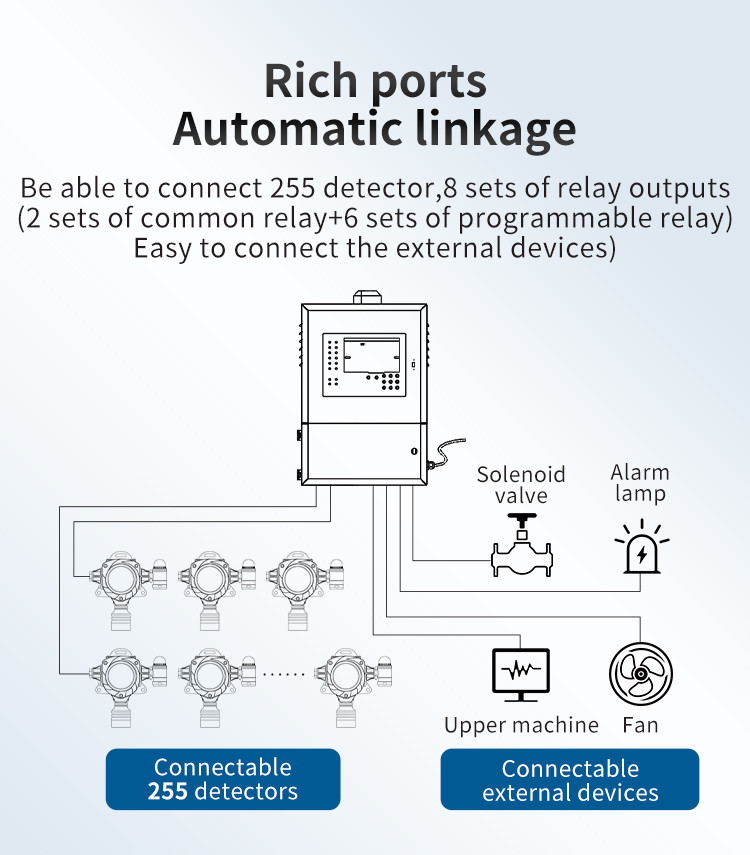

Number of mount detectors	Optional onboard 32-channel 4-20mA signal (Multiple expansion boards can be connected externally, and each expansion board supports 8 channels of 4-20mA signals) On board 4-way two-bus signals can be selected (up to 256 bus signals are supported) 【The number of detectors connected at the same time shall not exceed 32 when using the backup power supply】

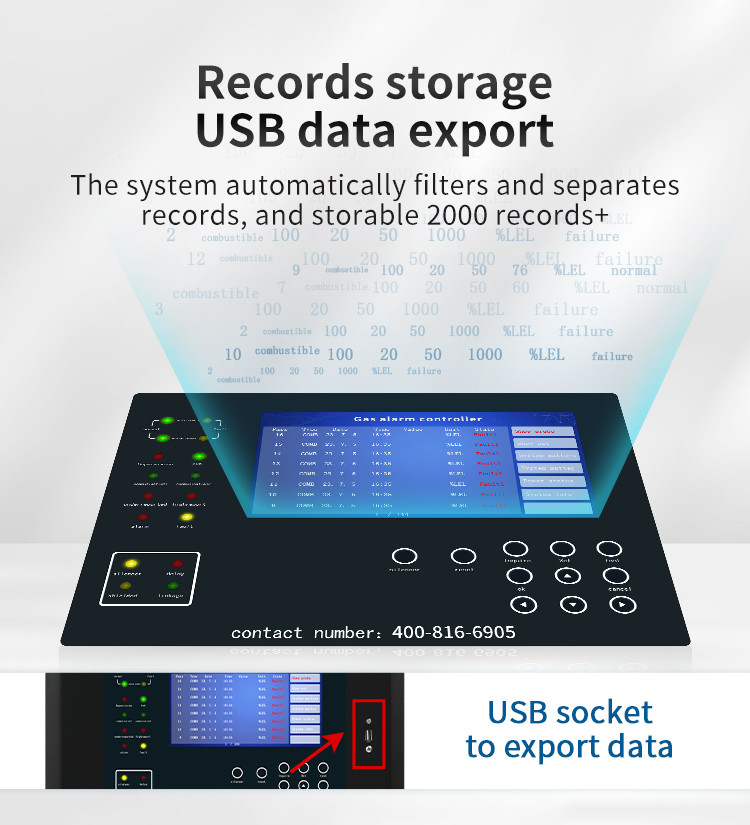

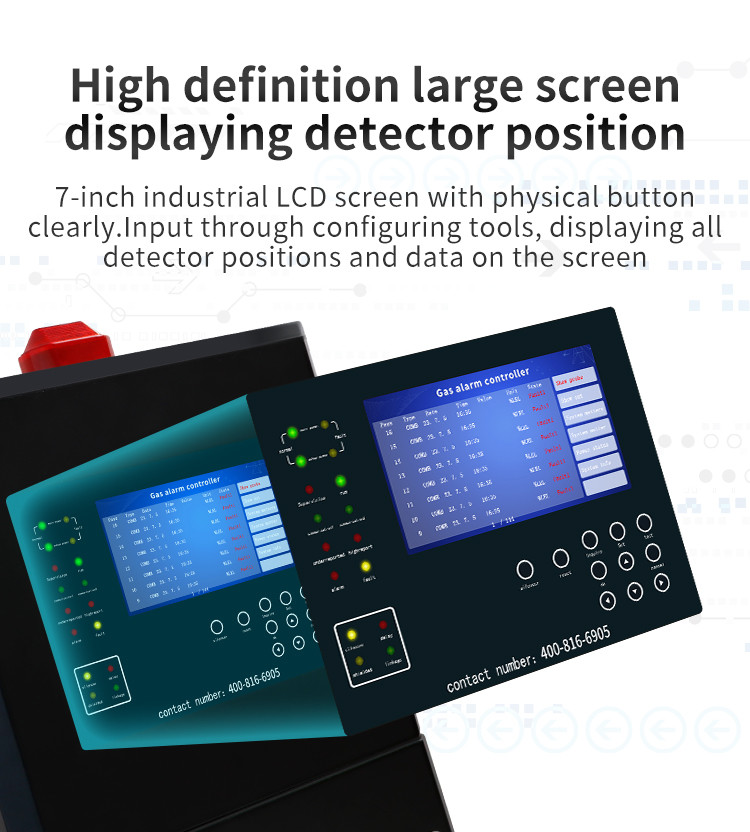

Instructions	 The indicator light indicates the status of the detector and the machine  The LCD screen displays the detector concentration and alarm detector number, the first report address, and the alarm address cycle  Alarm and fault status are indicated by different voice alarm sounds
Response time	≤30 seconds
Protection class	IP30
Detector connected to controller line requirements	Connecting split line detector: RVVP3×1.5mm²; Connect 485 bus type detector: RVVSP4×1.5mm² Connect two bus detectors:RVVSP2×1.5mm²
Communication between the detector and the controller distance	≤1200m
Output signal	4-20mA, RS485, LoRa, 4G, PC

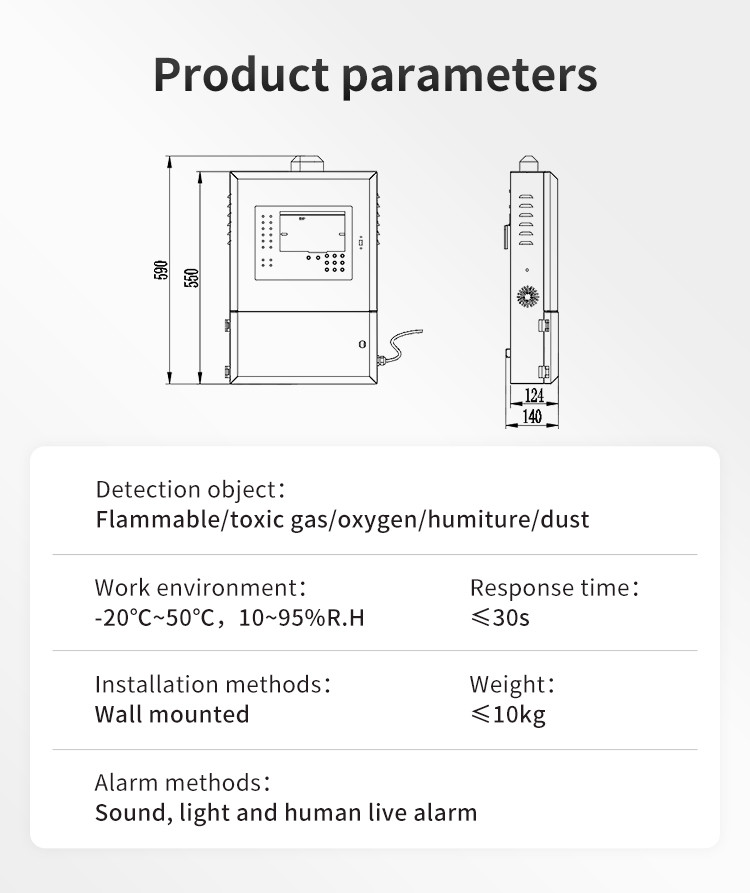

Installation method	Wall-mounted

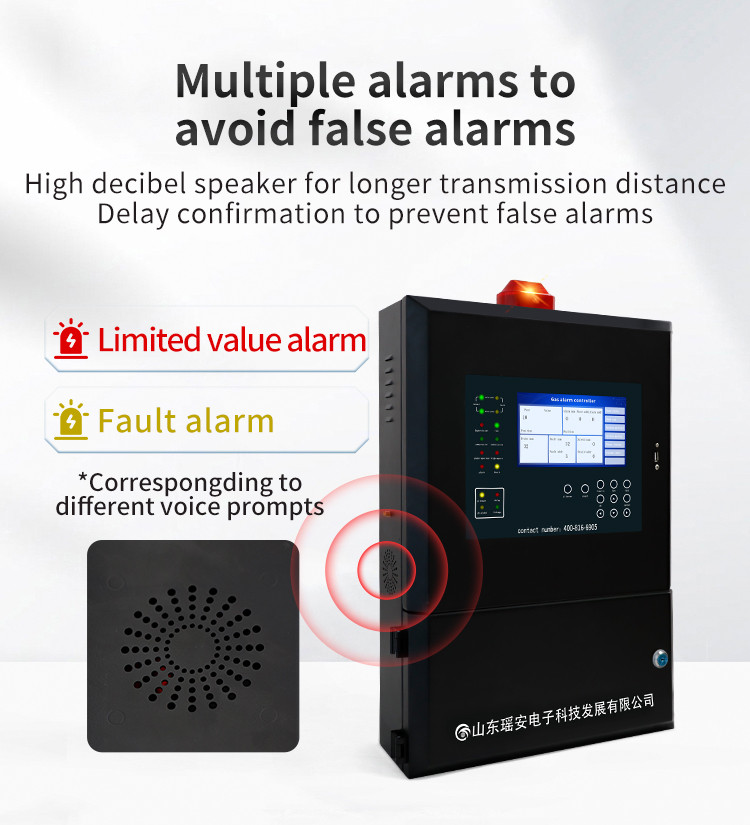

Alarm methods	Sound (sound pressure level above 70dB and below 115dB at a distance of 1 meter), light, voice broadcast alarm

Product Features

CLICK MORE＞＞＞

FAQ

Q1: How many MOQ?
A: MOQ= 1piece
Q2: How about the Lead time?
A: We can dispatch within 1-3 days after order confirmed.
Q3: Who take charge transportation fee?
A: We can quote it based on your order,you can choose.
Q4: Do you offer the guarantee for your products?
A:Yes, we offer 12 months warranty for our products.
Q5: What certificates can you support?
A: Explosion-proof CNEX,ISO9001, CE and ATEX.
Q6:Is it ok to print my logo on the gas detector?
A: Yes, OEM and ODE are available.
Q7:Can I get some discount?
A: Different products have different discount,please contact us for details.
Q8: Can I pay by T/T?
A: Yes,you can,T/T and paypal are supported.
Q9: Do you have after sales technical guidance?
A:Yes,any questions you can show us and our technical team will service for you at any time.
