Technical Parameters &
Characteristics
| Product Description | Plastic UPVC, CPVC, PPH, PVDF, FRPP Plastic Flanged Diaphragm Valve |
| Nominal Diameter | 1/2"~10"(DN15~DN250) |
| Operating Temperature | -10 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN6, PN10, PN16 or lower |
| Main Materials | CPVC, UPVC, PVDF, PPH, FRPP |
| Gasket Materials | EPDM, IIR |
| Diaphragm | FEP, PFA, PTFE |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | RF, FF |
| Ends Standard | ASME B16.5, EN 1092, BS 4504 |
| Test standard | ISO5208 |
| Operation method | Handwheel, Pneumatic and Electric |
| Application | Metallurgical, Chemical, Water Management, Pharmaceutical, Photovoltaic, Food Industry |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Small Operating Torque |
| Other Features 3 | Weir Type, A Type |
| Other Features 4 | Bare Shaft With Top Mounting Flange |
| Other Features 5 | Stock is available |
| Other Features 6 | Compact and Portable |

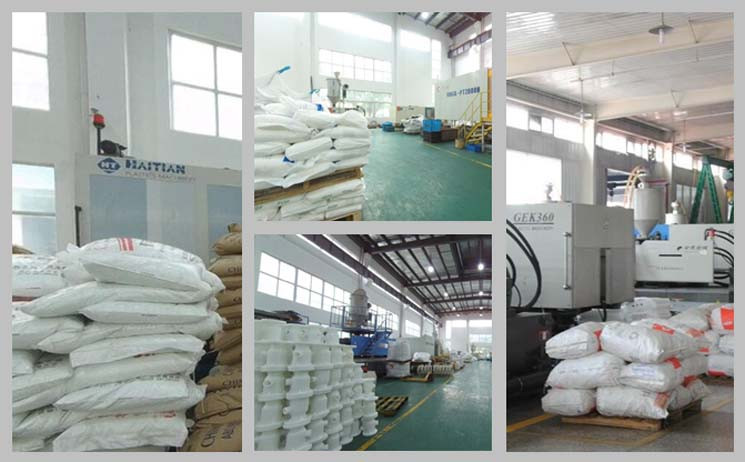

Workshop

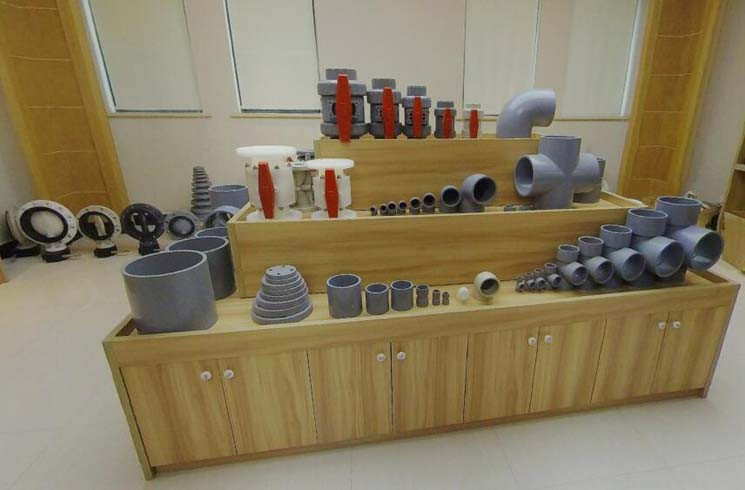

Show

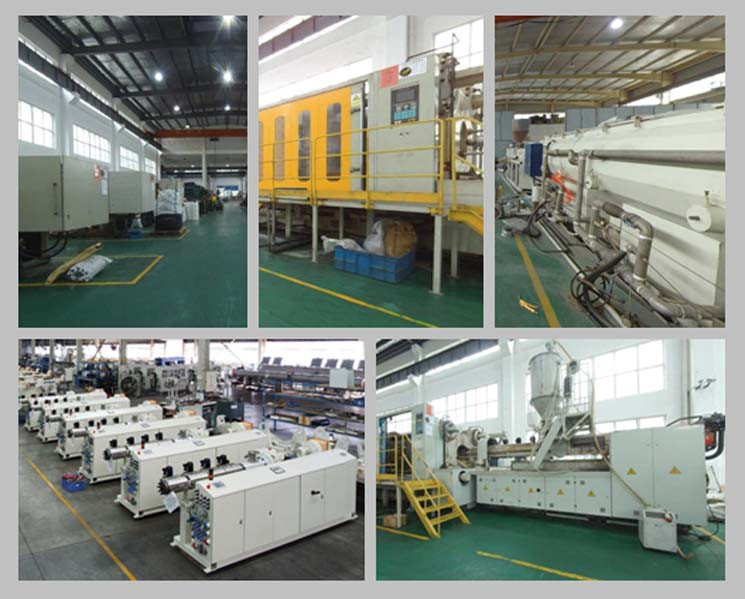

Production Equipments

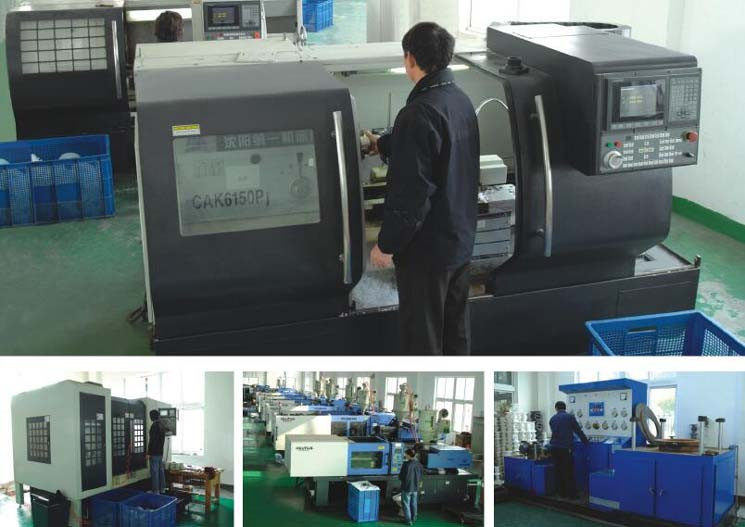

Machining

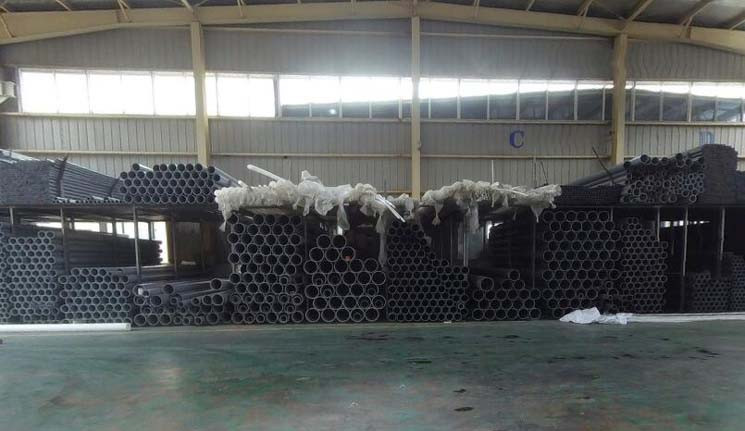

Finished Products
Packing &
Shipping
Service
Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm ValvePlastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Valve Plastic Flanged Diaphragm Val
