Technical Parameters &
Characteristics
| Product Description | Plastic Flanged Foot Valve |
| Nominal Diameter | 1/2"~10"(DN15~DN250) |
| Operating Temperature | -10 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN6, PN10, PN16 or lower |
| Main Materials | CPVC, UPVC, PVDF, PPH, FRPP |
| Gasket Materials | EPDM, IIR |
| Disc | CPVC, UPVC, PVDF, PPH, FRPP |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | RF, FF |
| Ends Standard | ASME B16.5, EN 1092, BS 4504 |
| Test standard | ISO5208 |
| Application | Metallurgical, Chemical, Water Management, Pharmaceutical, Photovoltaic, Food Industry |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Bottom Valve |
| Other Features 3 | Stock is available |
| Other Features 4 | Compact and Portable |

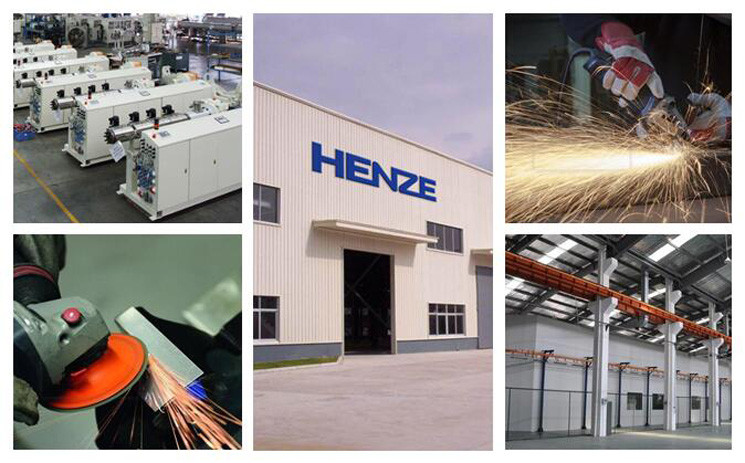

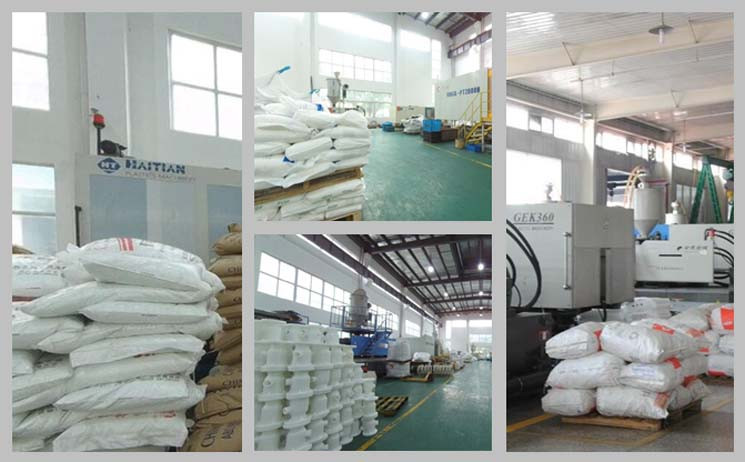

Workshop

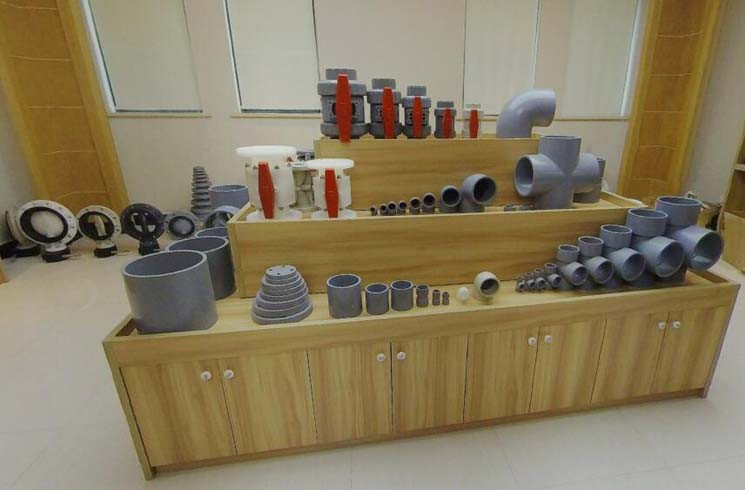

Show

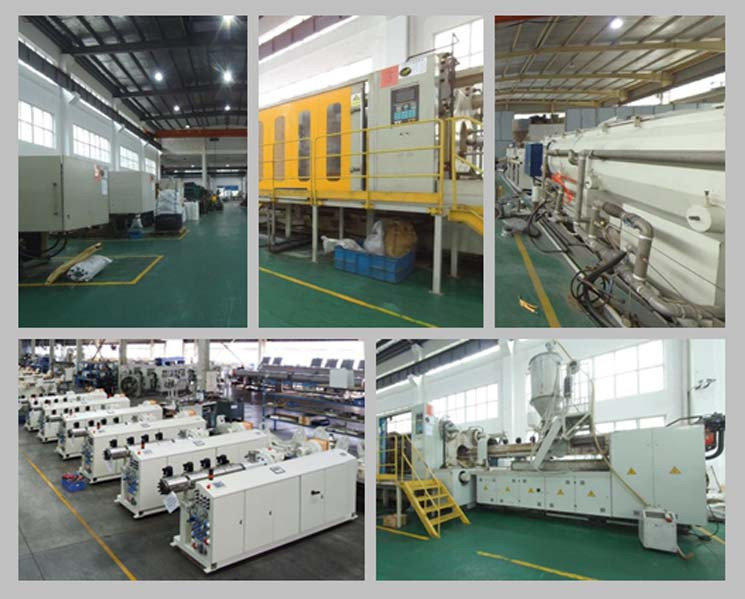

Production Equipments

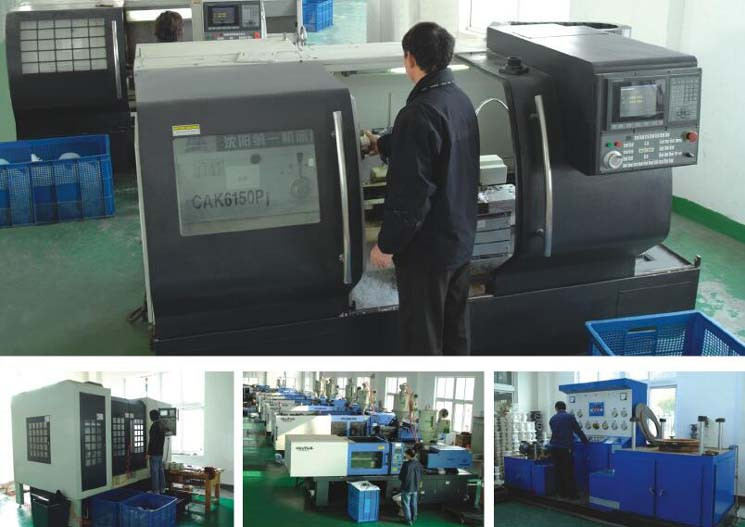

Machining

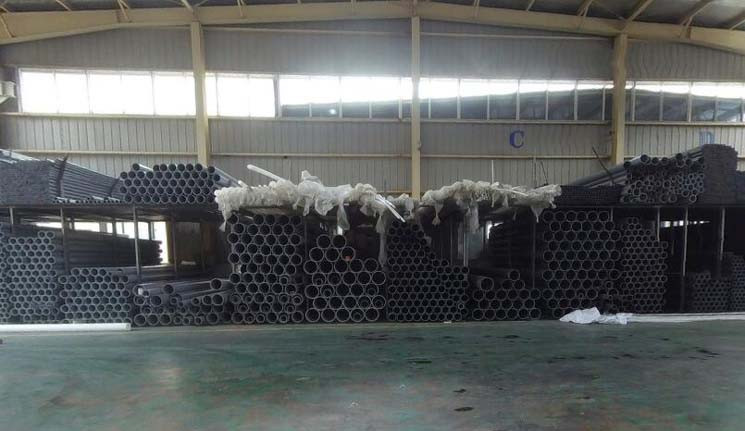

Finished Products
Packing &
Shipping
Service
Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve Plastic Flanged Foot Valve
