OLT GPON 8 ports 10GE SFP Layer3 networking device

Contact Now

Quick Details (View All)

Model Number	TLG-8DA	Type	OLT
Place of Origin	Guangdong, China	Brand Name	Tometek/OEM/ODM
Use	FTTx & fttm	Warranty Time	1 Year
Network	Wired LAN, POE	Chassis	1U 19Inch Rack Box
Uplink GE ports	x2 RJ45	Uplink SFP ports	x2 SFP+
GPON Ports	x4 SFP Slots	Max Splitting ratio	1:128
Management Ports	x1 Console, x1 USB	PON Port Upstream	1.244Gbps
PON Port Downstream	2.88Gbps	Supported PON module Level	Class B+, C, C+, C++, C+++
Management Mode	EMS, WEB, SNMP, Telnet, CLI

Product Details

Product Description

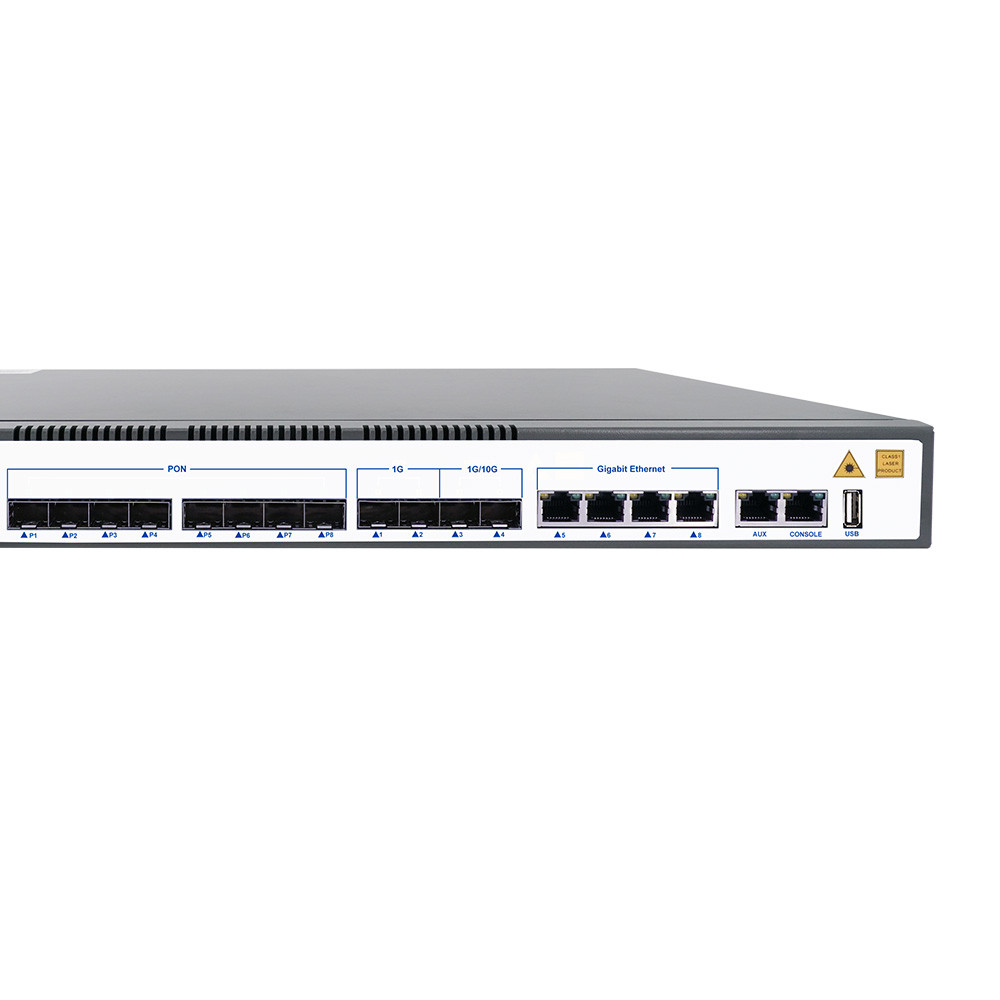

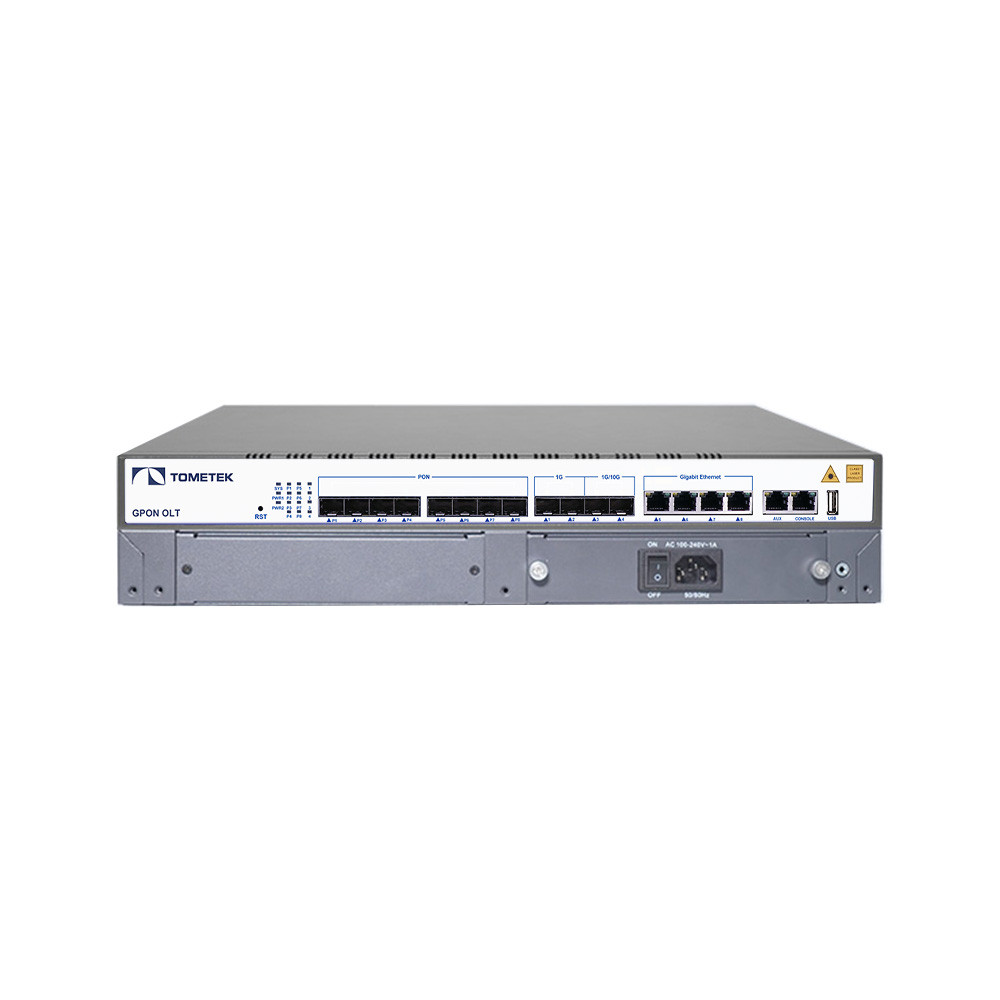

Model Name			TLG-8DA
Chassis	Rack	1U 19 Inch Standard Box
Uplink Port	QTY	8
		RJ45(GE)	4
		SFP(GE)	2
		SFP+(10GE)	2
GPON Port	QTY	8
		Physical Interface	SFP Slots
		Max Splitting ratio	1：128
Management Ports			1x 10/100/1000 BASE-T out-band port 1x CONSOLE port 1x USB 2.0
Backplane Bandwidth (Gbps)			104
65.472Port Forwarding Rate (Mpps)			47.616
PON Port Specification	Transmission Distance	20KM
		GPON port speed	Upstream 1.244Gbps, Downstream 2.488Gbps
		Wavelength	TX 1490nm, RX 1310nm
		Connector	SC/UPC
		Fiber Type	9/125μm SMF
		Supported PON module level	Class B+, C, C+, C++, C+++
Management Mode			EMS, WEB, SNMP, Telnet , CLI

FAQ

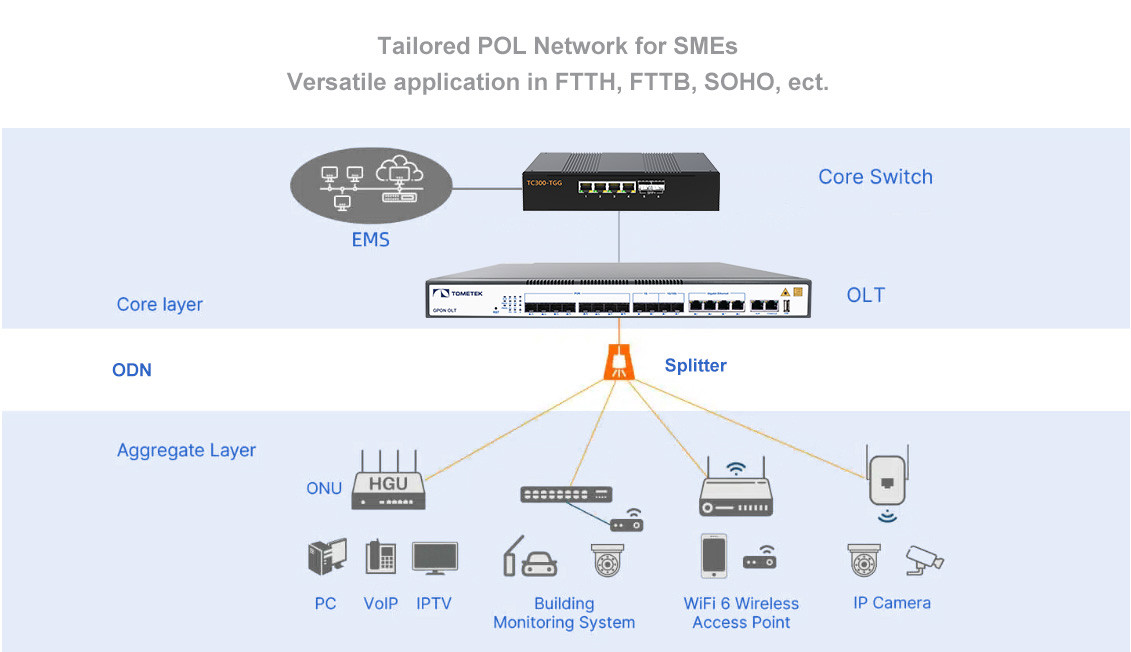

Q1: What is a GPON OLT?

A1: GPON (Gigabit Passive Optical Network) OLT (Optical Line Terminal) is a key component in a fiber optic network. It serves as the central point of control for connecting multiple end-users to the network.

Q2: What can I use a single-port GPON OLT for?

A2: You can use it for various purposes, including providing internet access to homes, connecting small businesses, schools, hospitals, hotels, retail stores, government offices, remote workstations, wireless back haul for remote areas, and IoT deployments.
