New Telescopic Forklift Crane 2ton 3ton 4ton 5ton Telescopic Forklift Crane Diesel Telescopic Handler

Quantity	1 - 4	5 - 9	10+ - 10+
Price	US $3,199.00	US $3,149.00	US $3,099.00

Contact Now

Quick Details (View All)

Model NO.	T3507	Condition	New
Rated Load	1-3t	Transmission	Hydraulic - Mechanical
Load and Unload Mode	Front Discharge	Walking Mode	Wheeled
Type	Medium-sized Loader	Overall Size (Lxwxh)	465021502300mm
Operating Weight	6800kg	Engine Type	Yunnei4102, Turbo
Engine Power	76kw	Tyre Size	16/70-20
Bucket Capacity	1m3	Bucket Width	2000mm
Inside Width of Cab	800mm	Front Track	1750mm
Wheelbase	3150mm	Ground Clearance	350mm
Fuel Tank	95L	Hydraulic Oil Tan	70L
Drive Speed	23km	Transport Package	Nude Packed
Specification	Customizable	Trademark	Customizable
Origin	China	HS Code	8428909090
Production Capacity	1000 Units/Year

Product Details

Product Description

Company Info.

Product Description

Product Description for Telescopic forklift

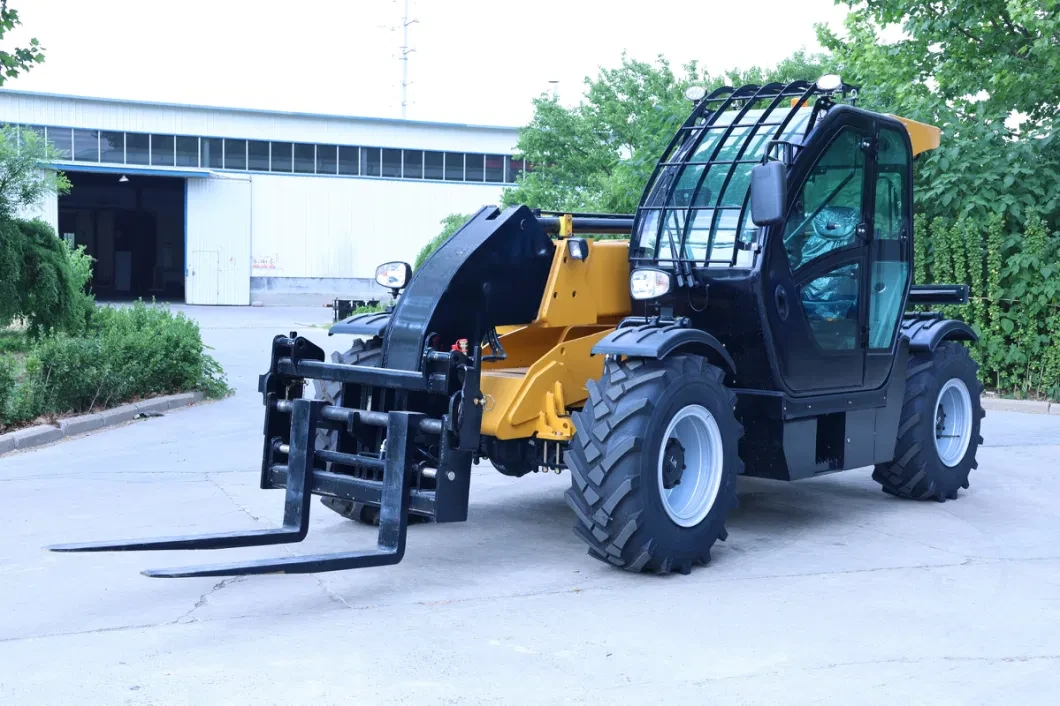

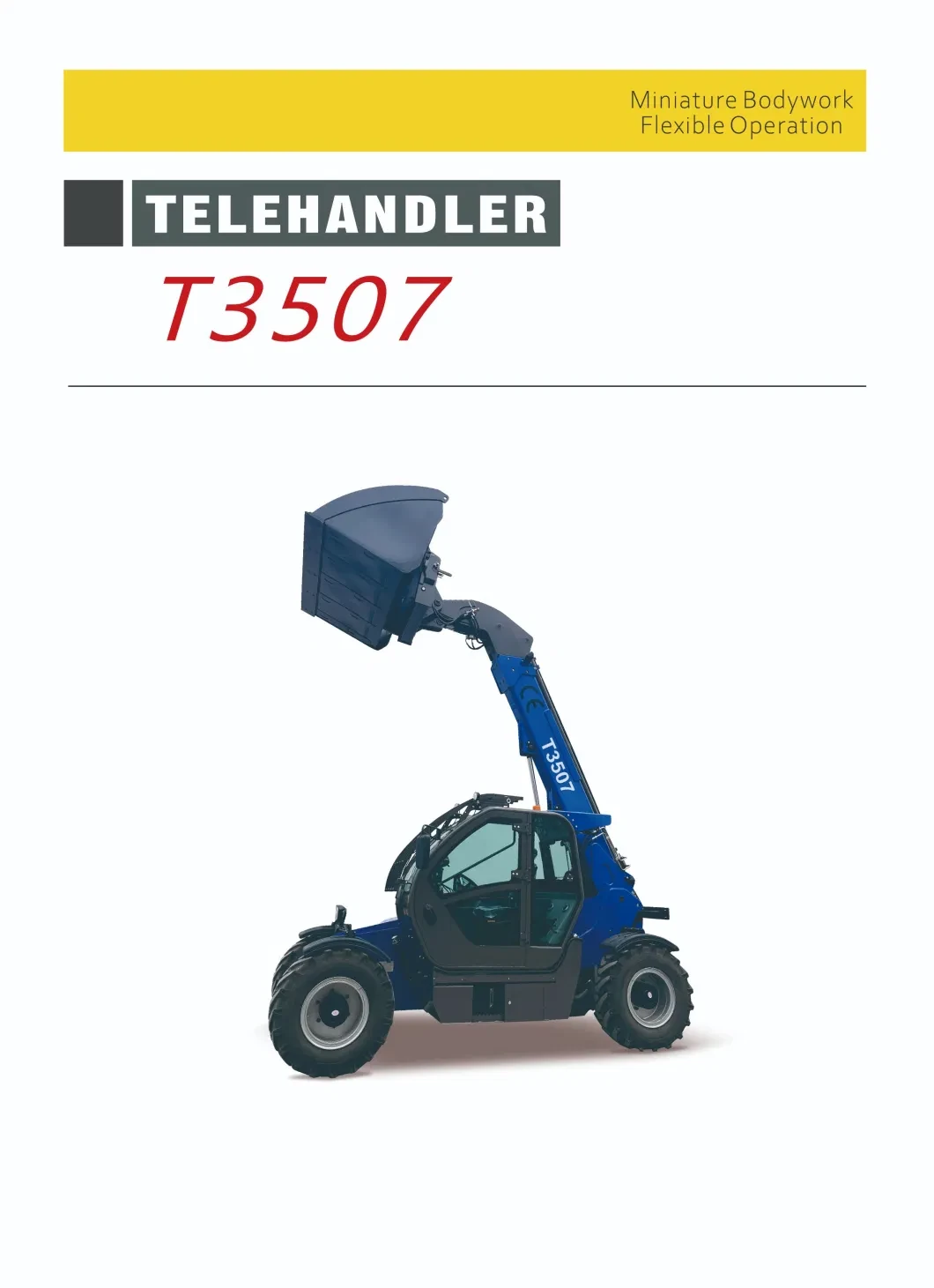

T3507 4X4 telehandler forklift does everything a masted forklift does.....and more.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturers products,
interchangeability of good, reliable, well-resourced parts.

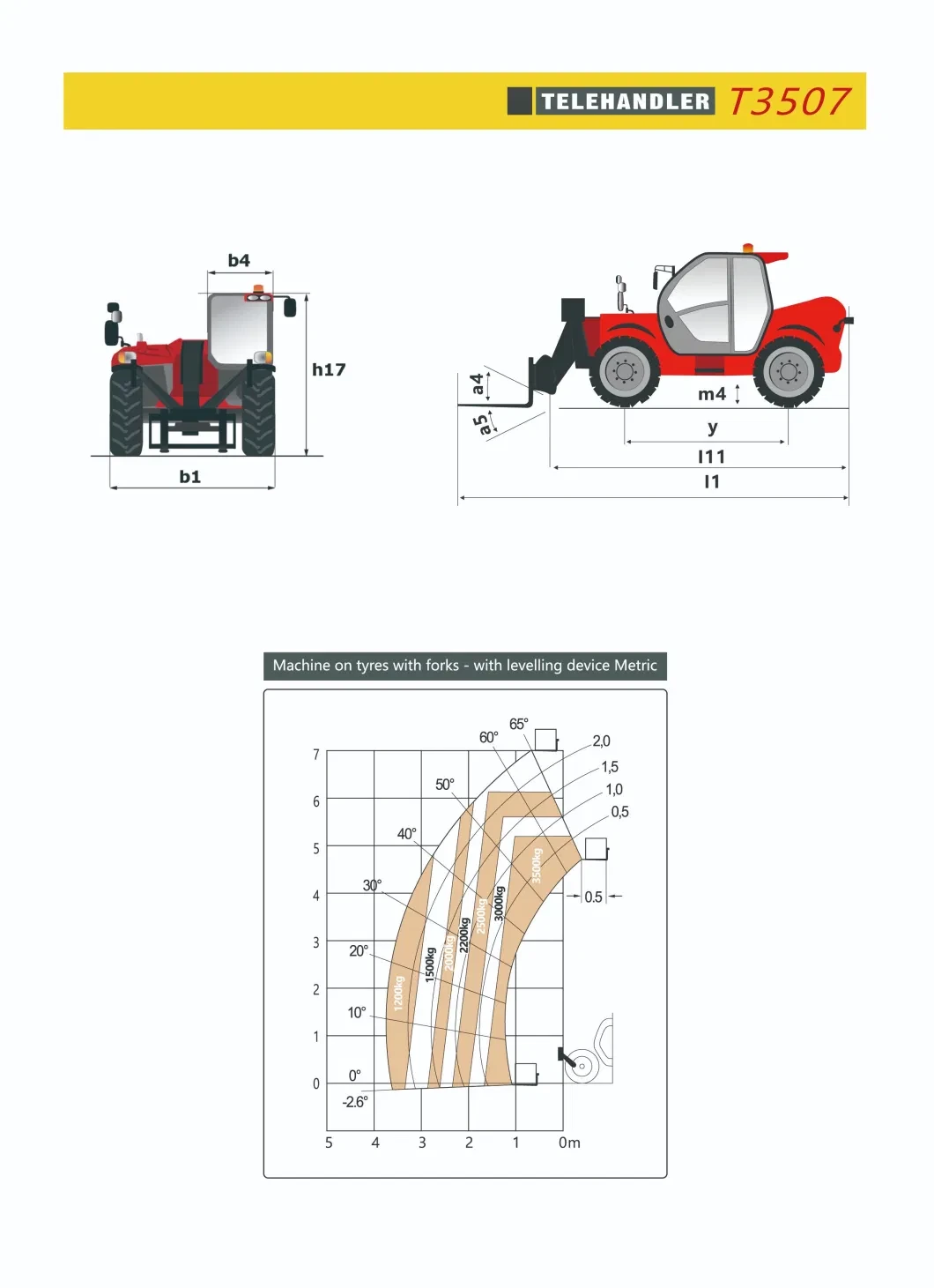

Specifications for T3507 Telescopic handler
Specification	Overall length to front carriage	4650mm
	Overall length to front tyres	4200mm
	Overall width(over tyres)	2150mm
	Overall height	2300 mm
	Inside width of cab	800 mm
	Front track	1750 mm
	Wheelbase	3150mm
	Ground clearance	350mm
	Outside turn radius(over tyres)	4250mm
	Carriage roll back angle (degrees)	46.5°
	Carriage dump angle (degrees)	37.5°
	Weight unladen	6900kg
	Tyres	16/70-20
	Fuel tank	95L
	Hydraulic oil tank	70L
	Drive speed	23km/h
Engine Equipped	Brand	YUNNEI
	Model	YN38GBZ
	Rated Power/Speed	76 kW/ 2200 rpm
	Max. Torque/ Speed	350 N.m /1600-1800 rpm
	Borex Stroke	102 x105 mm
	Displacement	3.8 L
	Type	4-Cylinder, 4-Stroke, In-line, Direct Injection, Water-cooled and Turbo-charged
	Emission Standard	CUM MIN S II,YANMAR II
Engine Optional	CUM MIN S(4BT3.9-C100 )	75kw,2400r/min
Engine Optional	YANMAR	61kw,2500r/min
Brake & Tyre	Service Brake	Air pressure activated,Drum brakes.
	Parking Brake	Hand operated disc brake on output of gear box.
	Tyre Size	16/70-20

Quiet safe and comfortable cab (Standard engine in idling) with ≤72 dBA Tinted glass all round.
Front windows and skylight FOPS.
Over weight warning system, Hourmeter, engine and oil temperature,Gear indicator, Fuel gaugeHydraulic Joystick, quick hitch buttom,Adjustable deluxe seat. Adjustable steer column with stall powershift changeand forward reverse shuttle.

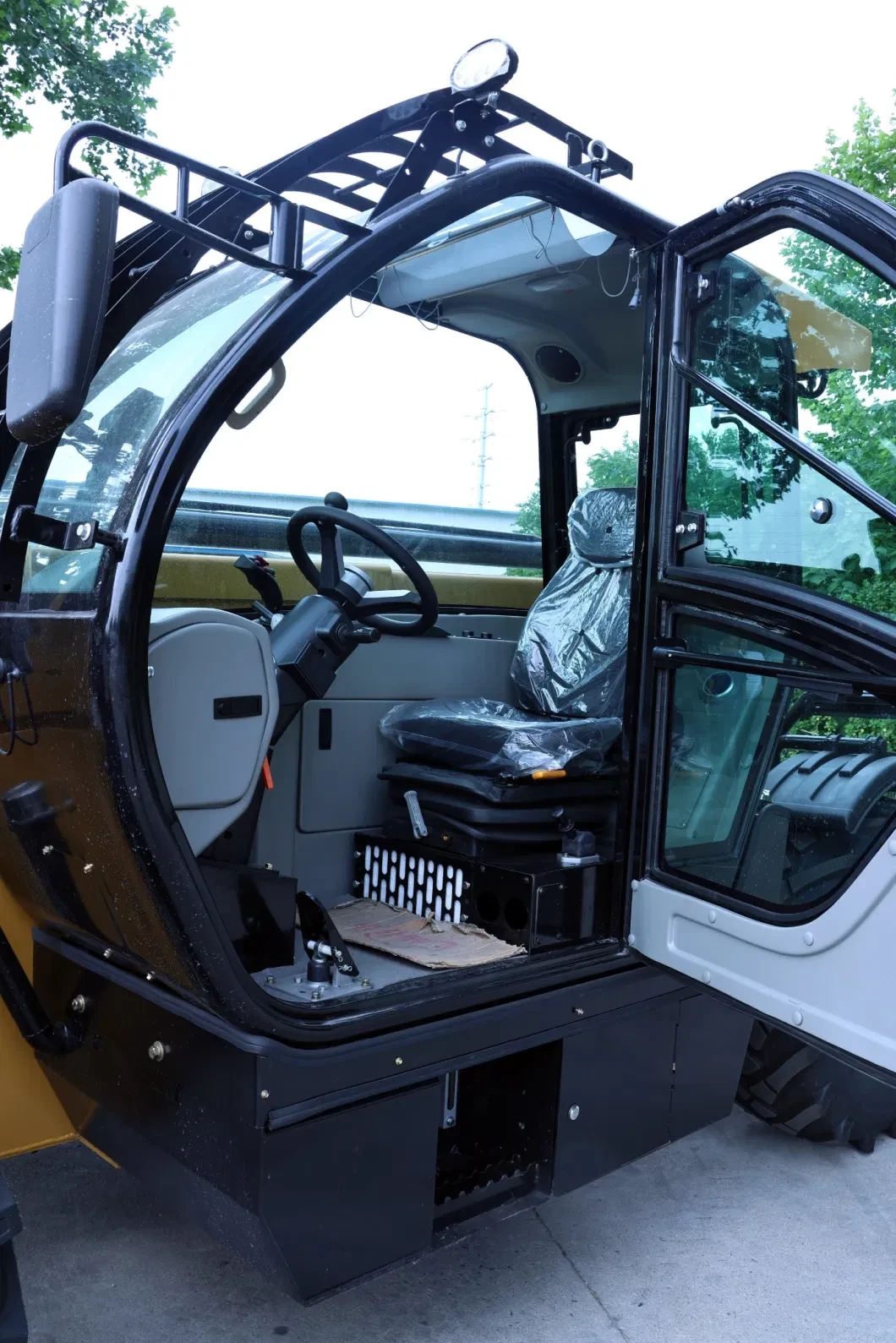

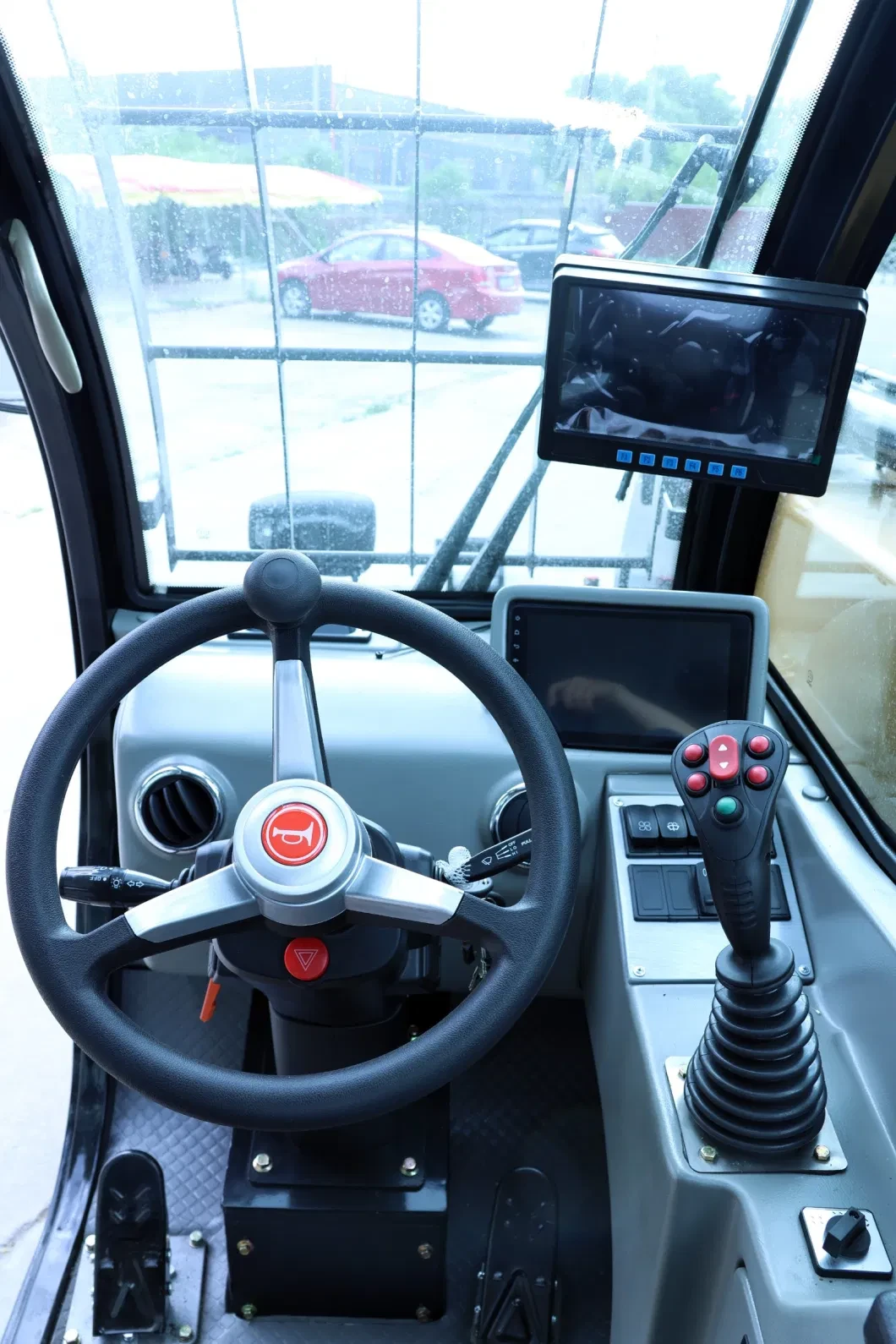

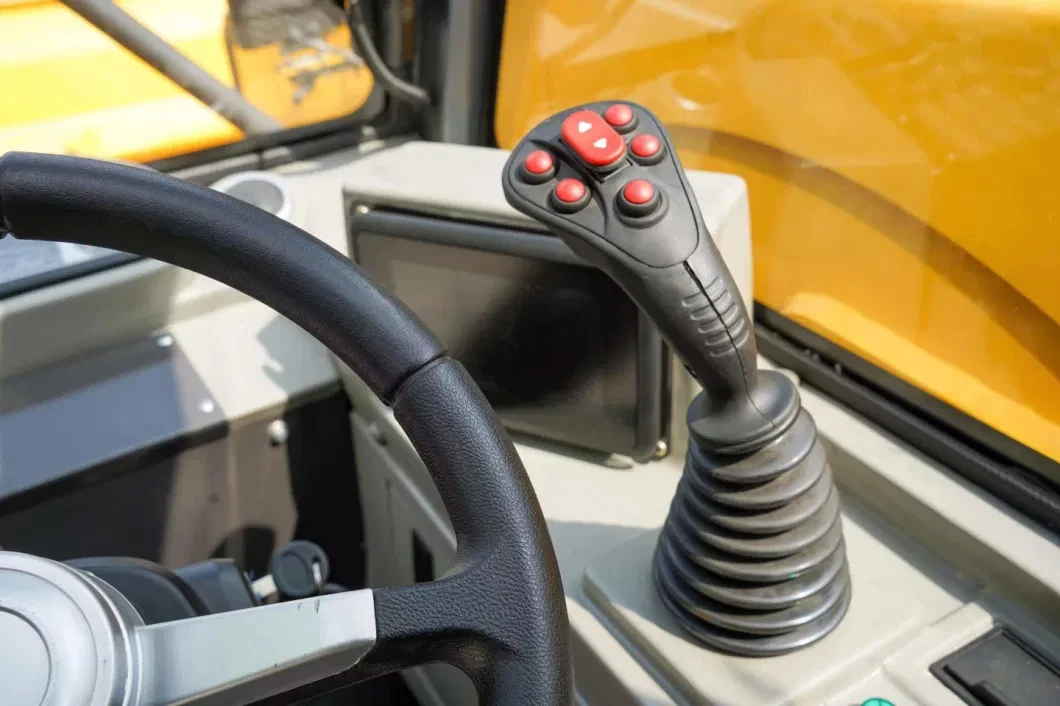

Deluxe Drivers Cab with Hydraulic Joystick, Ergonomic Seat,Colored Dashboard, Adjustable Steering Wheel and Back View Camera,During the driving backwards process, the back view camera will light up , the alarm lamp will flash and the buzzer will horn , which could improve driving safety. The air conditioner is also standard configuration.

Hydraulic cylinder power steering on both axles.
Three steer model options: front wheel steer, All wheel steer; crab steer.
All operated from in the cab by a selection switch.

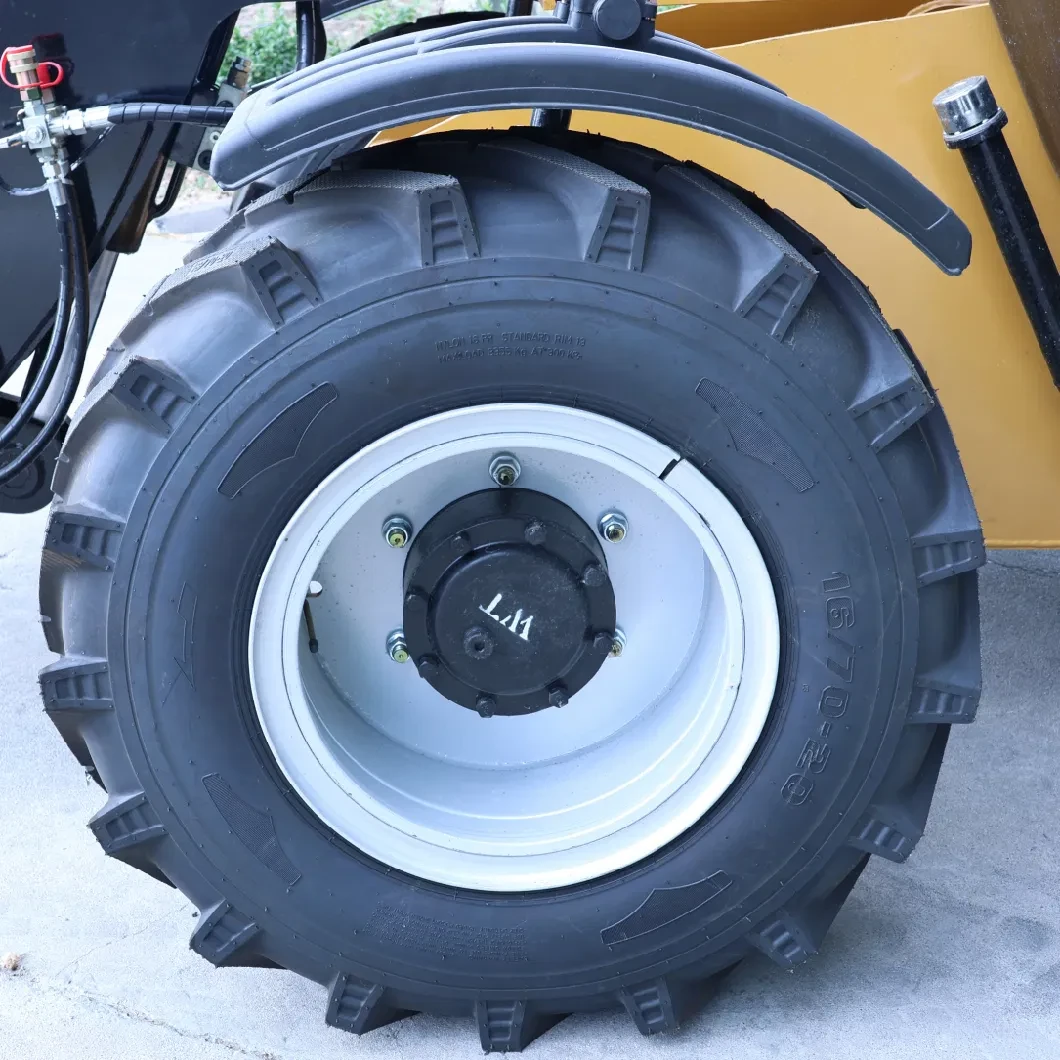

Medium Hub Reduction Axle fitted with 16/70-20 Engineering Tyre

The drive axle adopted is Medium Hub Reduction Axle . The Tyre model is 16/70-20 and its width and diameter is 370 mm and Ø1030 mm respectively, which could ensure our loader work safe on muddy and bumpy road.

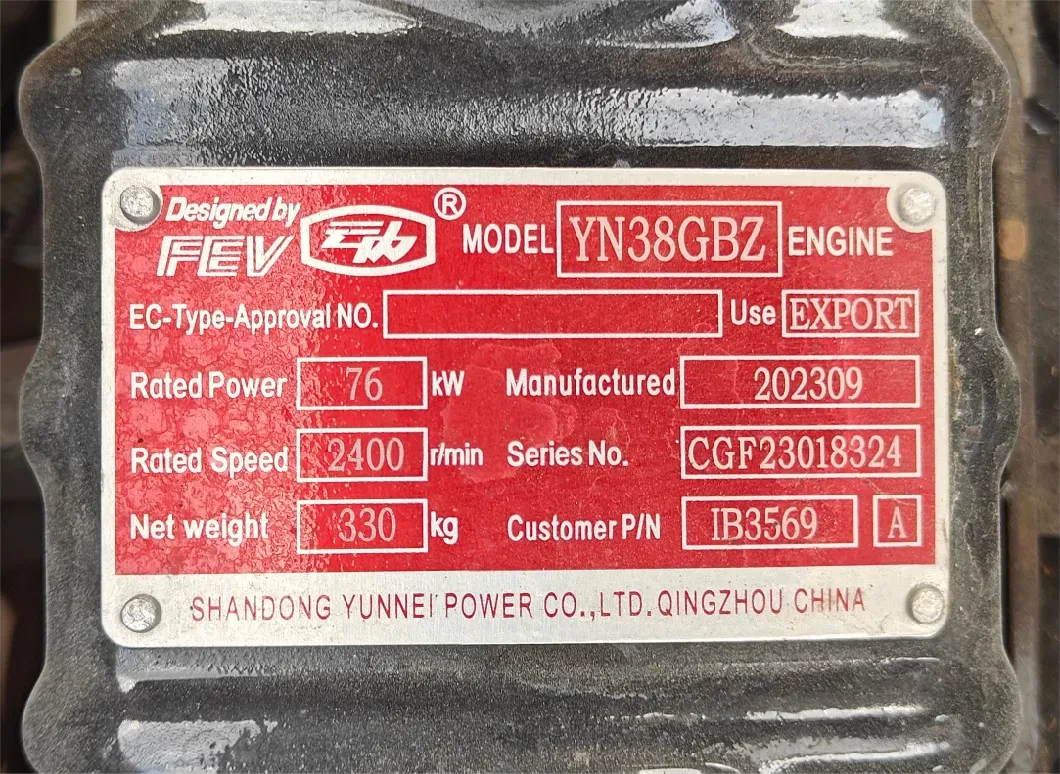

China Top Brand -YUNNEI , 76kW, Turbo-charged, Water-cooled Diesel Engine
This loader is driven by YUNNEI, 76kW, Turbo-charged, Fuel-Efficient, Water-cooled Diesel Engine, which makes this 2Ton wheel loader have strong power and high acceleration. Engine door is connected by hydraulic pole. Main Engine Brand Optional: DONGFENG CUM MIN S,YARMAN

Reducing cost of ownership, saves you time, fuel, manpower and yard.
Loading space, and telescopic forklift potential to replace several machines, which means you dont need as
Many masted forklifts in your fleet, and the result is maximum efficiency and productivity.
Thanks to the telescopic boom T3507 4X4, you can load and unload a lorry trailer from only one side, this resules in up 50% yard
loading space saving, you can use the rest of the loading space for other duties and there is also no need to spend extra time
repositioning vehicles around work yards.
Telescopic forklift T3507 4X4 attachments, plus compatibility with the full range of industry specific attachments, gives you huge
flexbility and the ability to work in a wide range of applications.
The telescopic boom allows single-side loading, loading to the far side of rail wagons by reaching across the platform gap,
reaching inside sprinter cans and loading of ship by reaching across from the quayside.
Front wheels steering, four wheels steering,crab drive.

We have been constantly improving and updating our products according to customers feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customers trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.

To develop more customers, we would like to give the following preferable policies:
1. OEM/ODM orders and customers design are welcomed.
2. No minimum order limit.
3. One-year Quality Warranty .

Our is ready to work for you. Let our many years of production experience and extraordinary service ensure that the goods you take out your pocket to buy is well worth.

lf you need to learn more about features or other models of products, please click here to contact us!

Worldwide Sales, Marketing and Service Network

During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
