ND Type Wire Rope Electric Hoist For Overhead/Bridge Crane With CE Certificate

Quantity 1 - 2 3 - 4 5+ - 5+
Price US $4,000.00 US $3,600.00 US $3,000.00

Quick Details (View All)

Model NO.ND Type Maximum Lifting Height12m
Chain Falls2 CertificationCE, ISO9001:2000, SGS
ConditionNew ColorCustomized
Warehouse StorageMany Type for You to Choose HookForged
Power SourceElectric UsageConstruction Hoist
Transport PackageStandard Package TrademarkHuasui
OriginHenan China HS Code842611200
Production Capacity5400pieces/Year

Product Details

Product Description

Company Info.

  • Overview
  • Product Description
  • Main Features
  • Technical parameters
  • company information
  • Our Advantages
  • packaging and transportation
  • Factory picture
  • Certifications
Overview

Product Description

Product Description

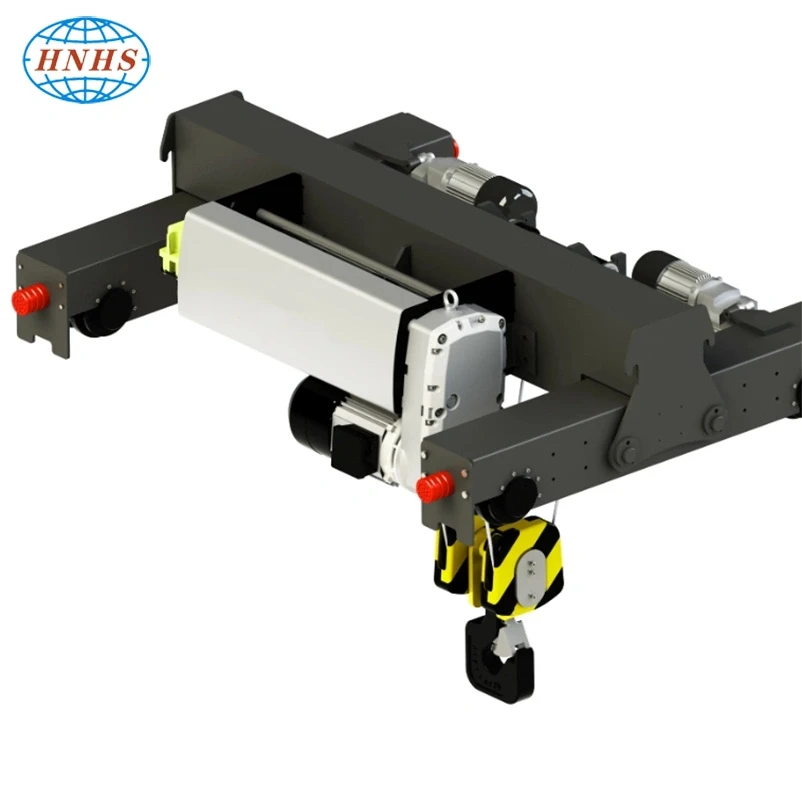

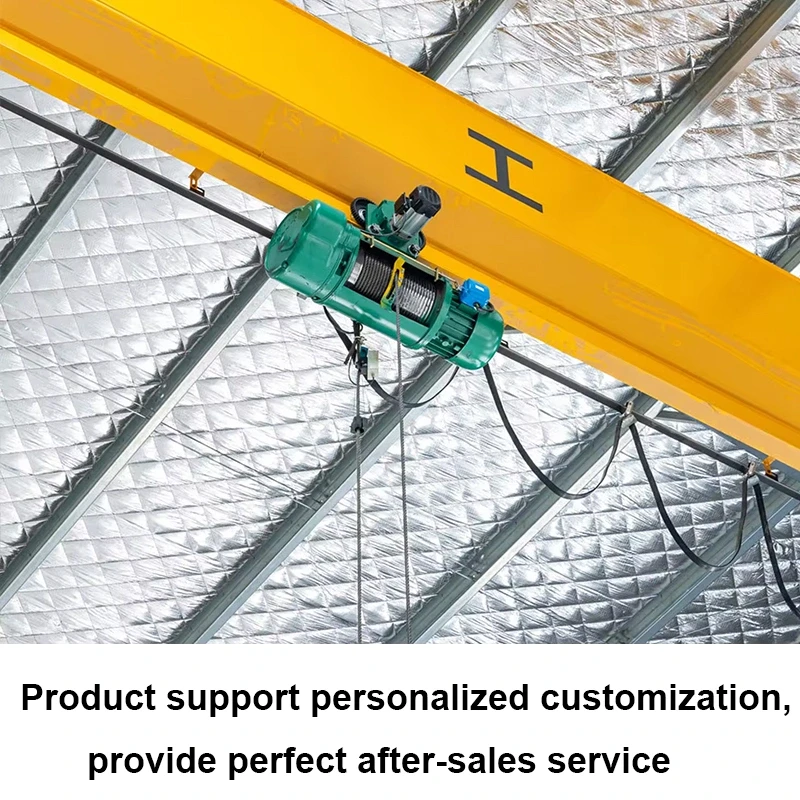

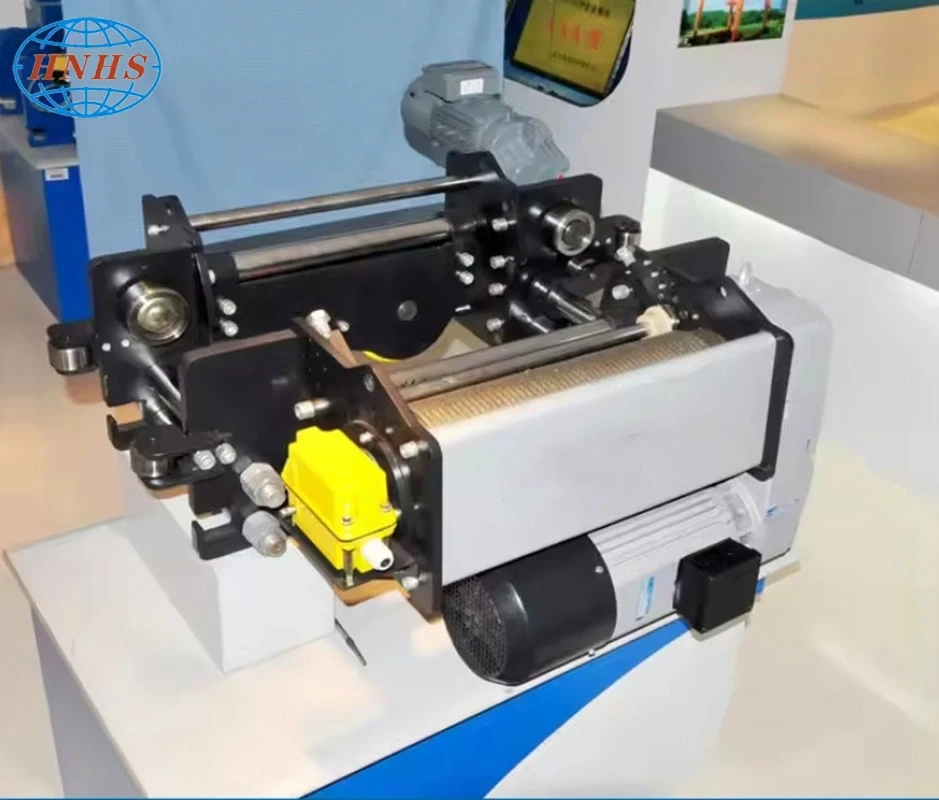

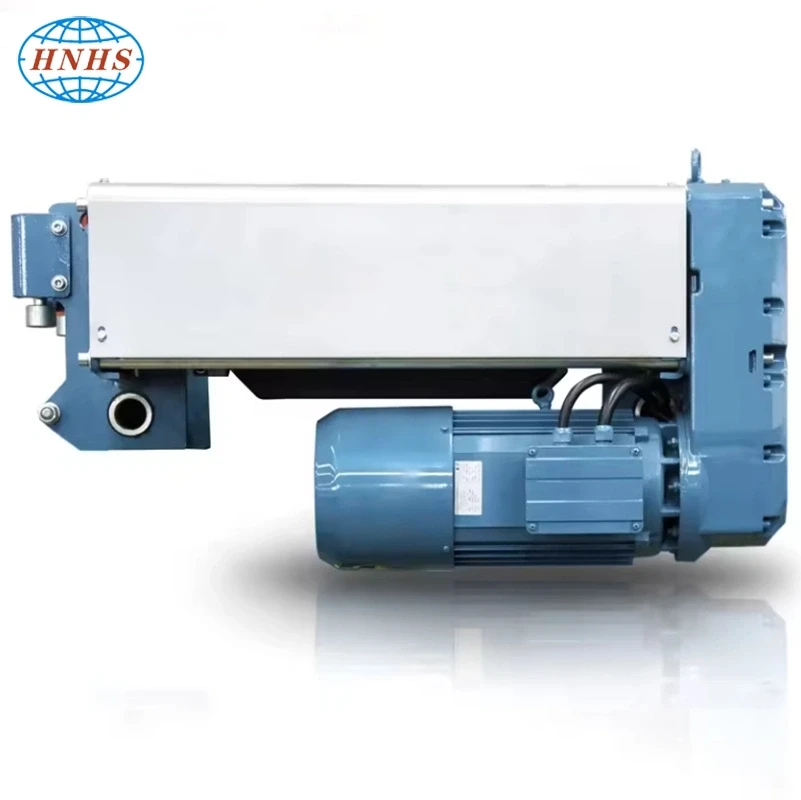

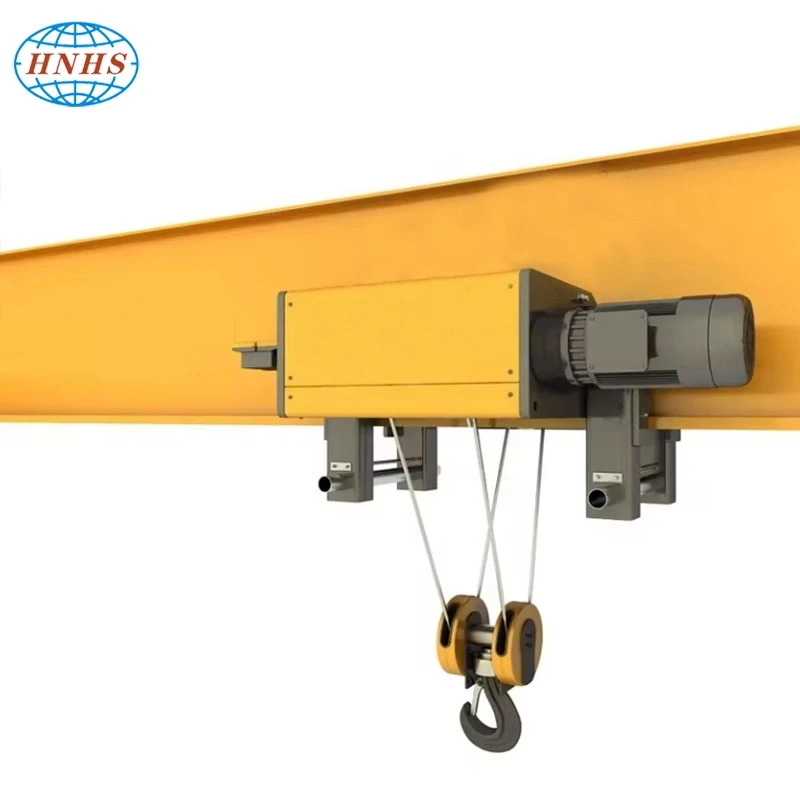

Euro Type Electric Hoist 12.5-ton Travelling Electric Wire Rope Hoist

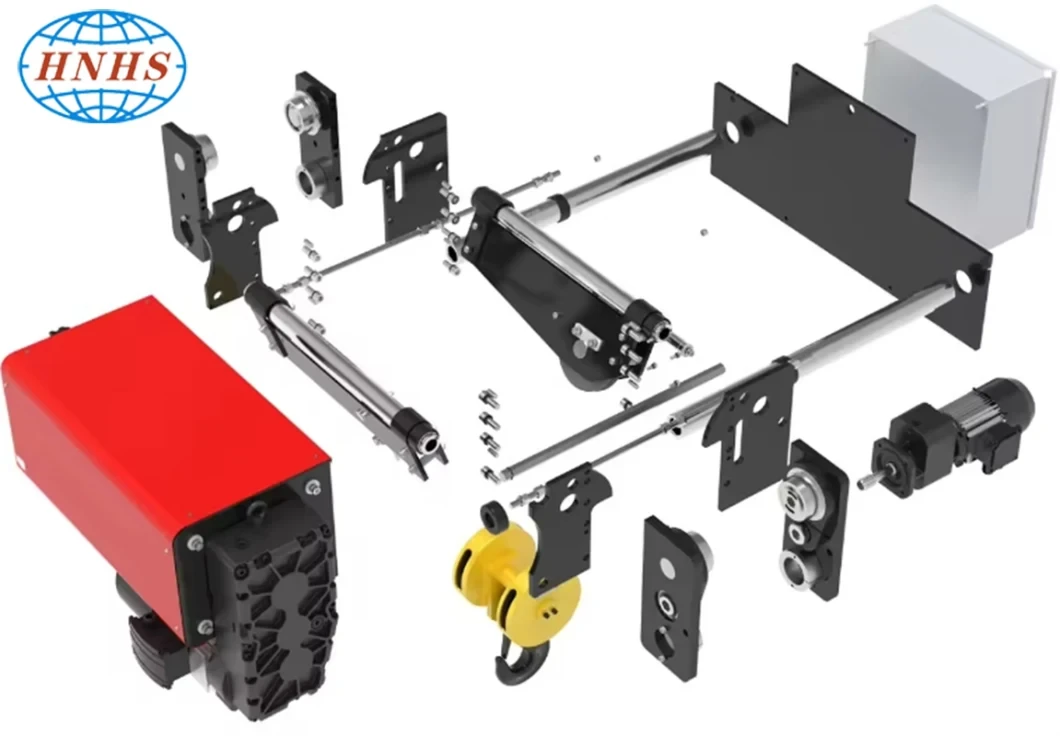

New type of electric hoist employs motor of hoisting mechanism and reducer imported from Germany. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter, with speed of 20m/min, which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.

Main Features

1> With aluminum allory shell of reducer
2> Steady running and low noise
3> Lifetime lubricating
4> Double-disk electromagnetic brake

Technical parameters

Lifting capacity 1t / 2t / 3.2t / 5t / 6.3t / 10t / 12t
Traveling speed 2.0~20m/min
Lifting speed 0.8/5m/min
Lifting
Capacity(t)
Lifting
Height(m)
Lifting
Speed(m/min)
Traveling
Speed(m/min)
b (mm) K1 (mm) K2 (mm) (mm) h (mm) Max Wheel Load(kN) Weight(kg)
1 6 0.8/5 2.0~20 250~400 440 455 1093 540 6.57 340
9 1313 6.66 360
12 1533 6.76 380
2 6 0.8/5 2.0~20 250~400 440 455 1093 540 11.47 340
9 1313 11.56 360
12 1533 11.66 380
3.2 6 0.8/5 2.0~20 250~400 440 455 1093 540 17.35 340
9 1313 17.44 360
12 1533 17.54 380
5 6 0.8/5 2.0~20 300-400 480 530 1093 630 26.61 431
9 1323 26.76 462
12 1553 26.91 491
6.3 6 0.8/5 2.0~20 300~400 480 530 1093 630 32.98 431
9 1323 32.99 462
12 1553 33.28 491
10 6 0.8/5 2.0~20 350~450 600 610 1260 700 52.03 619
9 1430 52.15 642
12 1600 52.25 664
12.5 6 0.8/5 2.0~20 350~450 600 610 1290 700 64.28 619
9 1470 64.4 642
12 1650 64.5 664

Advantages
Compact design
Absolutely reliability

Soft and safe acceleration, smooth operation, low noise

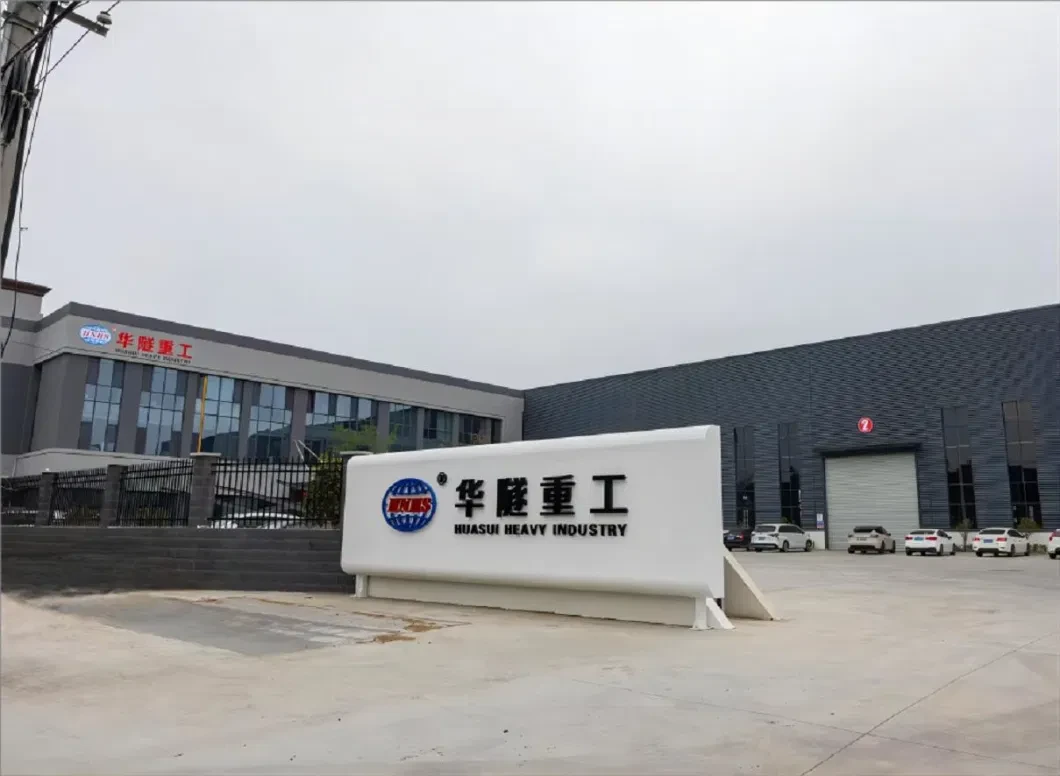

company information

Huasui has 15 years of experience in crane and hoist design and manufacturing, 3 production factories covering an area of 168000 square meters, 10 production lines with annual production capacity 500 sets. It has more than 800 employees, including more than 20 technicians and more than 10% senior engineers. The factories have modern crane manufacturing and assembly equipment, and introduces European advanced management, process flow and quality control system to ensure safe, reliable and high quality cranes for customers, making customers logistics operations easier and creating long-term value for customers.

Our Advantages

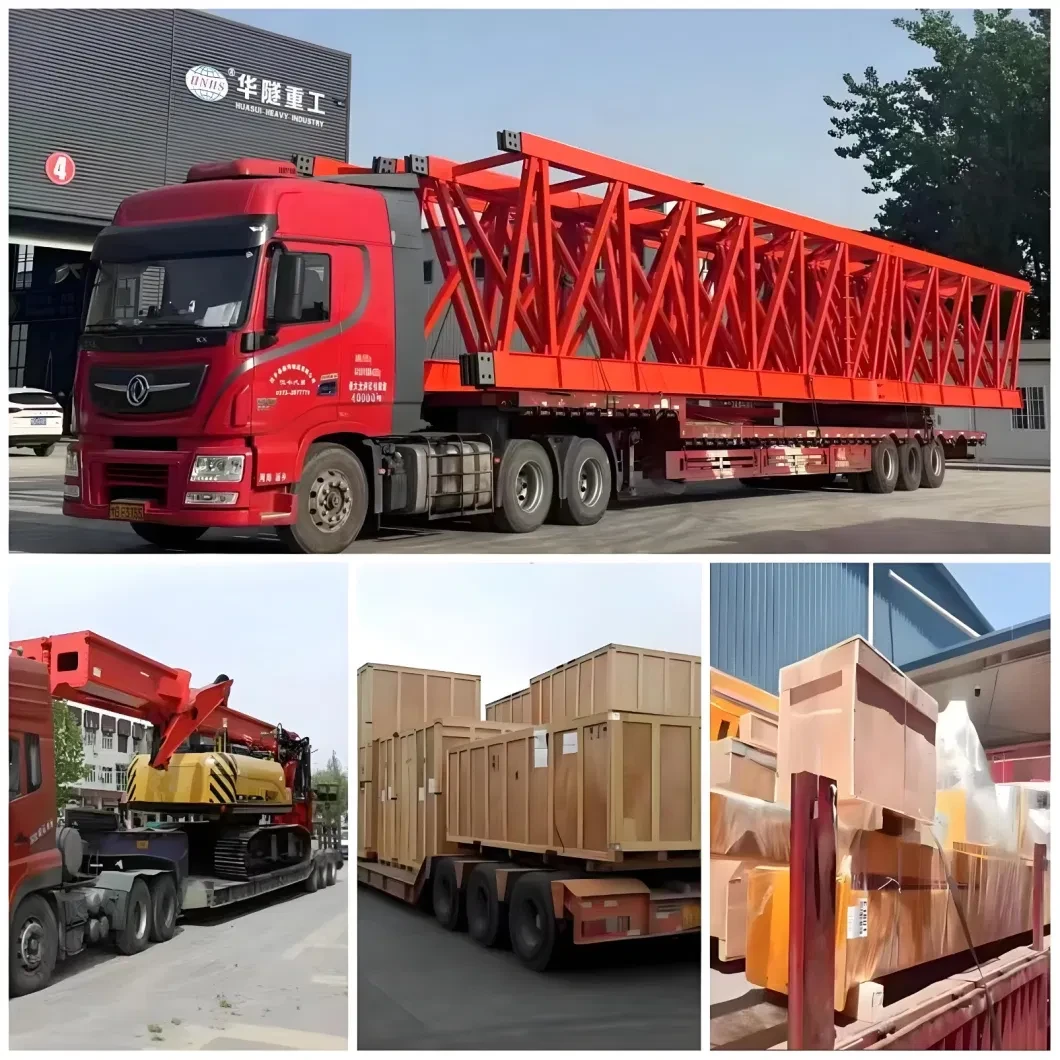

packaging and transportation

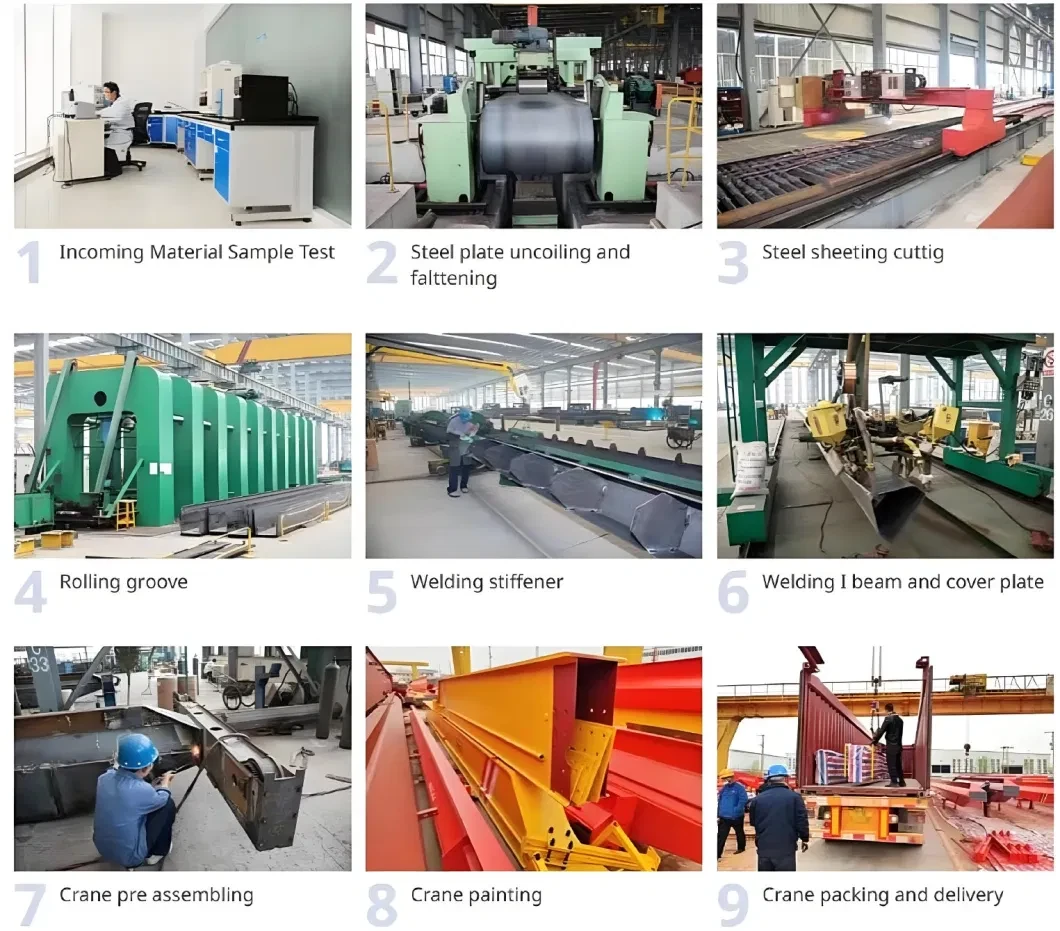

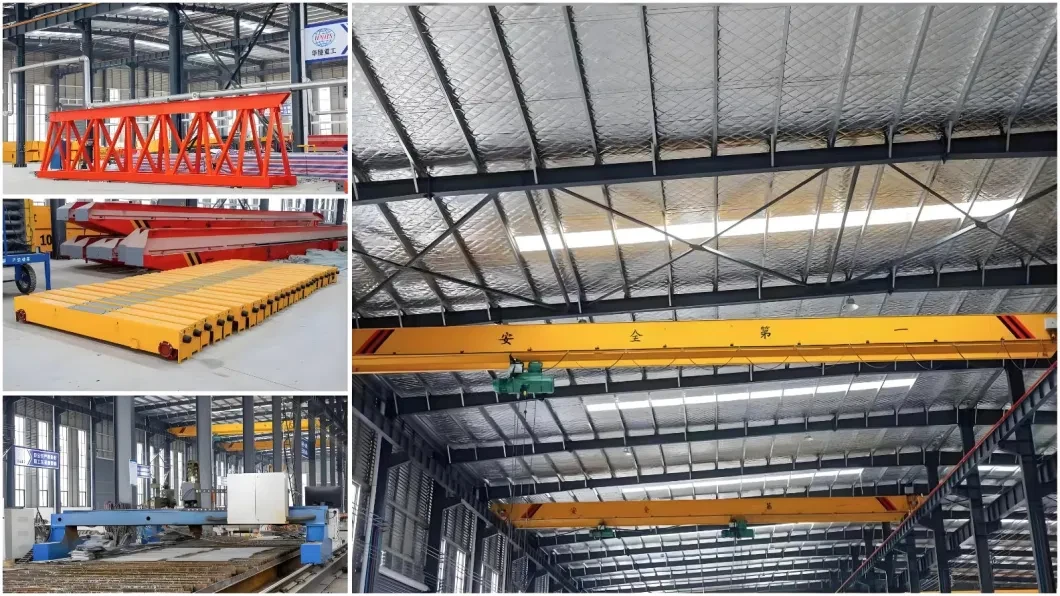

Factory picture

Certifications

FAQ

A: Can you provide custom service?
B: Yes! We can customize all kinds of cranes according to your requirements. You just need to tell us your demands.
A:Which industries do you service?
B: We service many industries including machinery, metallurgy, railway and so on. High quality products in different fields will play an important role.
A:Which areas do you service?
B: We have a huge market both at home and abroad. We have exported our cranes to many countries, especially European, Africa and so on.
A: How do you guarantee the quality?
B: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.
A:What are the main products?
B: Our main products are overhead and gantry cranes. Different products have different models and application scenarios.
A:What international certifications has your company passed?
B: Our cranes has passed CE, lSO, GOST, SGS, TUV, BV, and so on.
