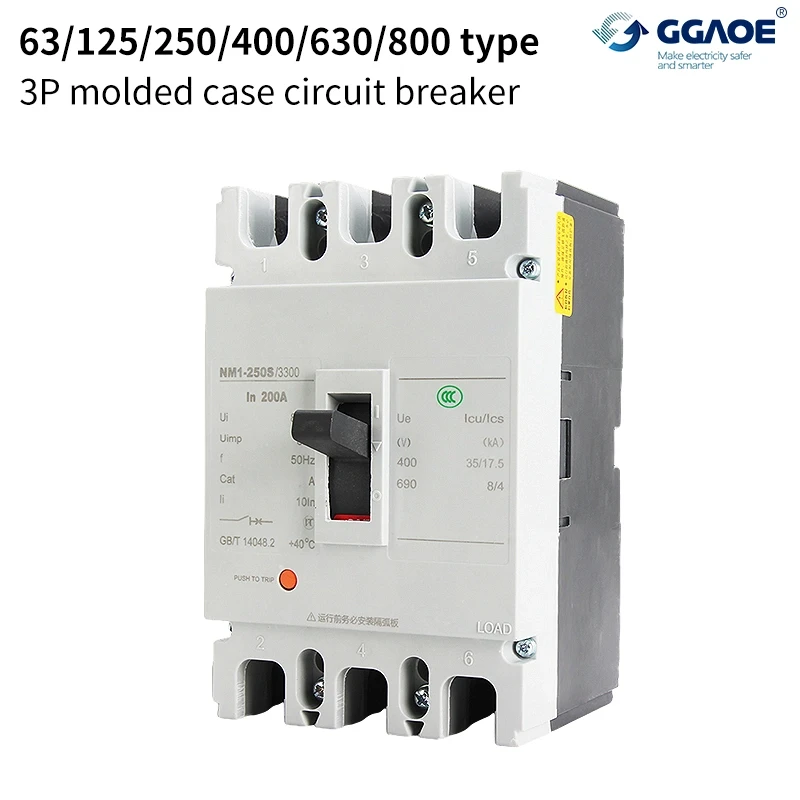

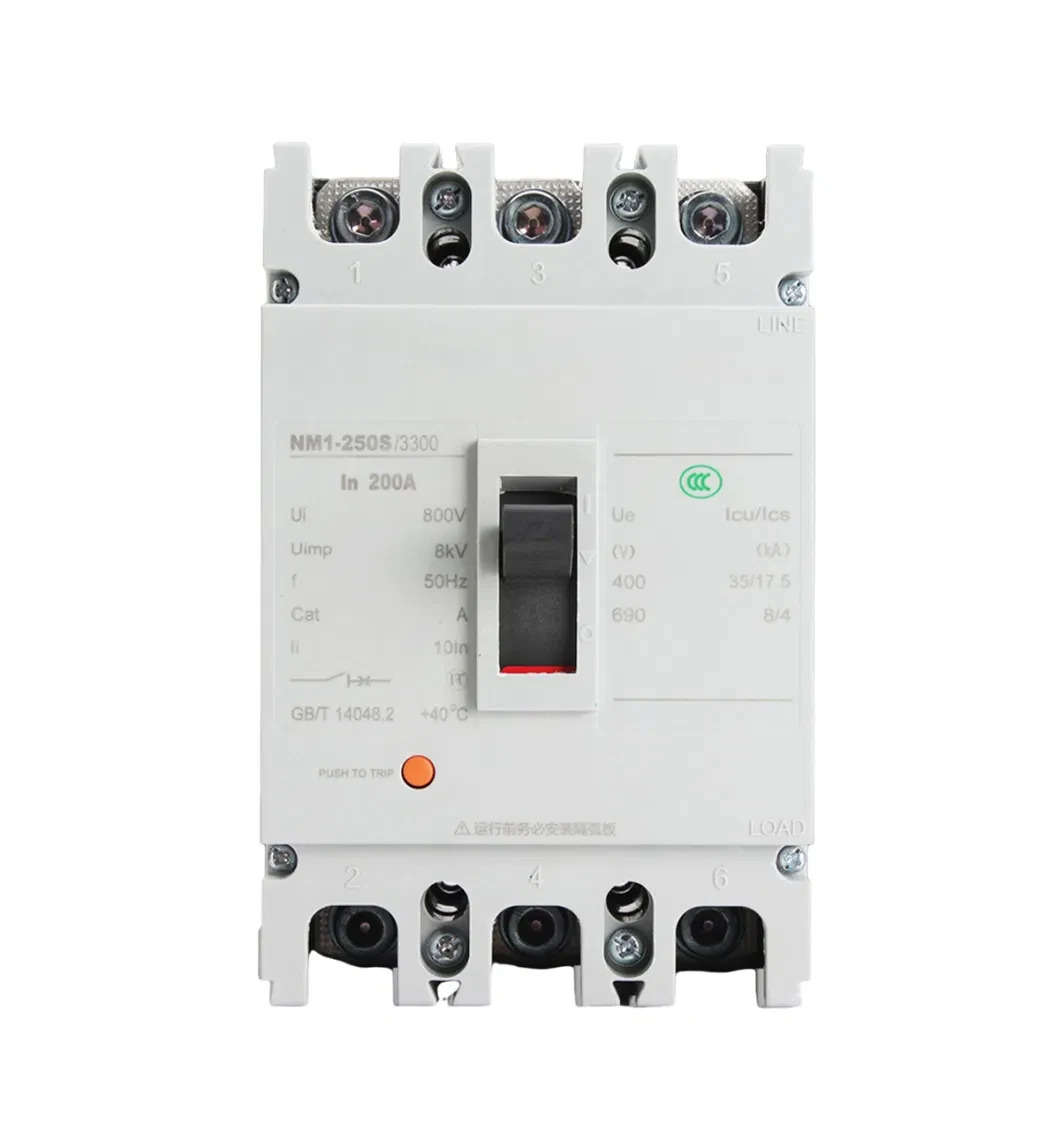

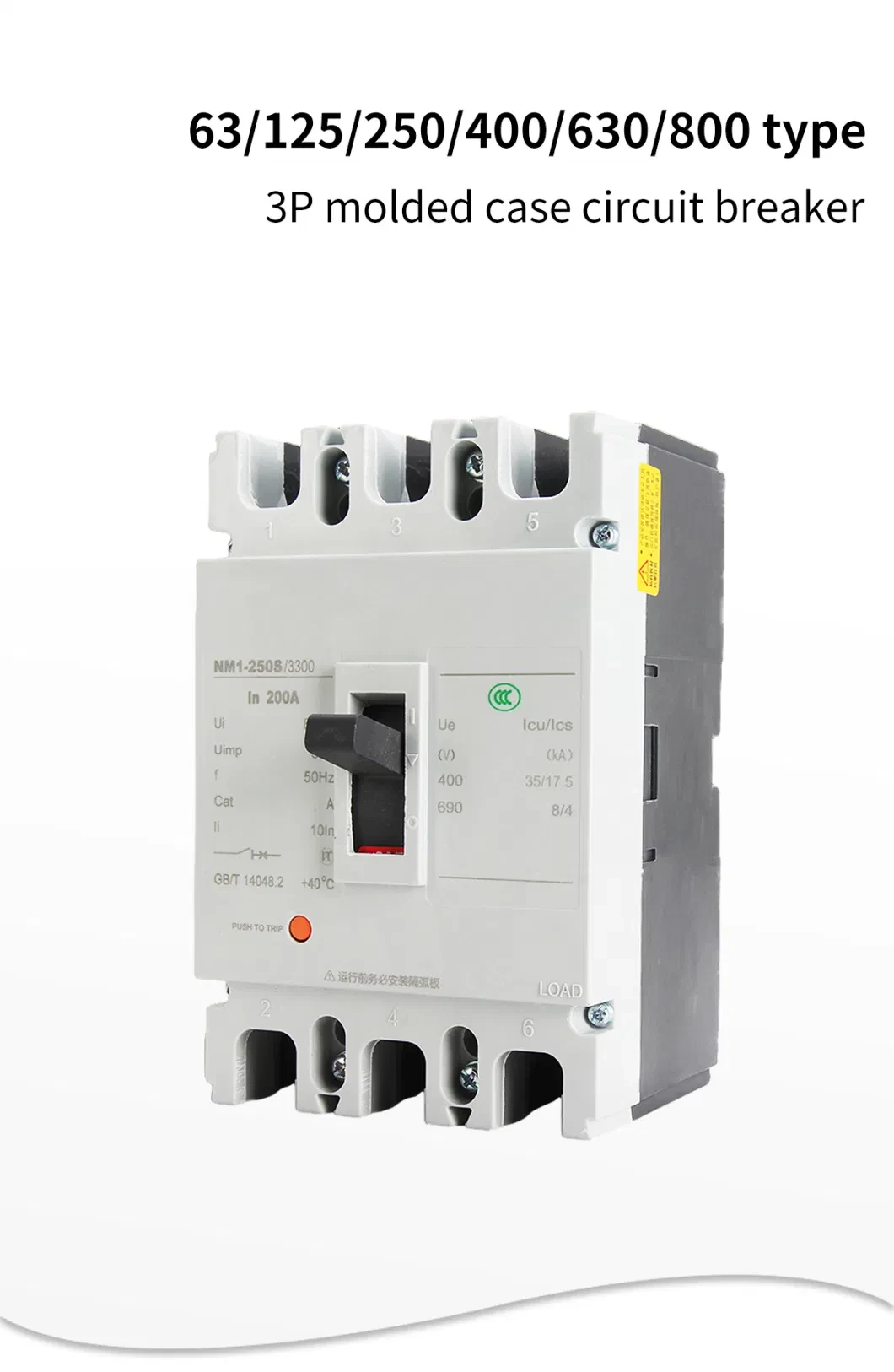

Moulded Case Circuit Breaker ODM/OEM CB CE ISO Customizable 63A MCCB

Quantity	5 - 9	10 - 19	20+ - 20+
Price	US $35.00	US $33.00	US $30.00

Contact Now

Quick Details (View All)

Model NO.	GM1	Poles Number	3
Type	Circuit Breaker	Function	Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification	VDE, ISO9001-2000, CE, CB, CCC, ISO9001:2008	Rated Frequency (Hz)	50
Product Name	MCCB	Rated Current	63
Application	Electric Power Transmission	MOQ	1 Piece
Rated Voltage	400V	Trademark	GGAOE
Origin	Zhejiang, China	HS Code	7201500010
Production Capacity	100000 Piece/Pieces Per Month

Product Details

Product Description

Company Info.

Overview
Product Description
Felds of Application

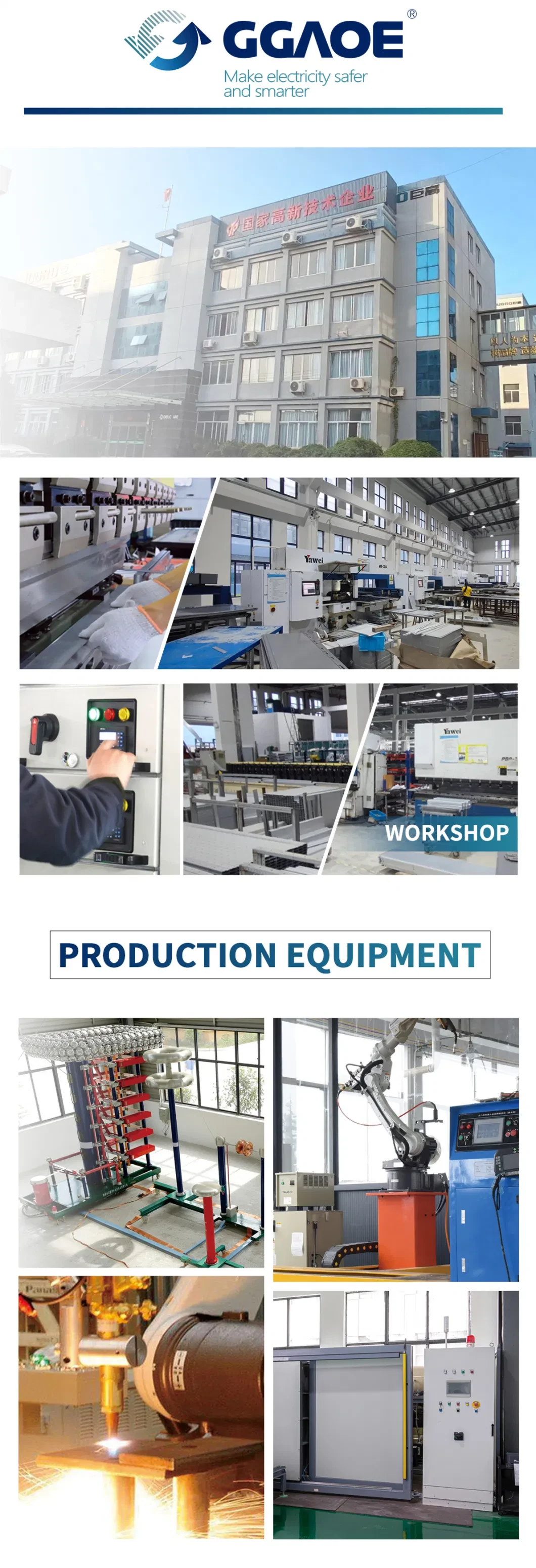

Company Profile
Certifications
Delivery
FAQ

Product Description

overview

GM1 series moulded case circuit breaker (MCCB for short) is one of updated type MCCBs researched and developed by the company by using advanced design and manufacture technology internationally. The rated insulated voltage is 800V (500V for WCM1-63). It applies for infrequent switch of the line of AC 50Hz, rated operation voltage 690V and below (400V for WCM1-63), and for infrequent starting of the motor. The MCCB with overload, short circuit and under-voltage protection fitting can protect the line and power device from damage. The MCCB is classified into four types individually as Type C (low breaking), Type L (standard),
Type M (higher breaking), Type H (very high breaking) according to the rated ultimate short circuit breaking capacity (Icu) ranking. The MCCB is small in volume, high breaking capacity, short flashover (zero flashover of some spare parts), and vibration resistance, is the ideal product for using on land and at ship. The MCCB can be installed vertical (vertical mounting), and horizontally (horizontal mounting).

Model	Frame level rated current (A)	Current Rating (A)	Rated operation voltage (V)	Rated insulation voltage (V)	Rated ultimate short circuit breaking capacity (kA 400V)	Rated operation short circuit breaking capacity (kA 400V)
GM1-63L	63	(6), 10, 16, 20, 25, 32, 40, 50, 63	AC400	AC500	25	18
GM1-63M	50	35	-	-	-	-
GM1-125C	100	(10), 16, 20, 25, 32, 40, 50, 63, 80, 100	AC690	AC800	20	10
GM1-125L	35	17.5	-	-	-	-
GM1-125M	50	35	-	-	-	-
GM1-125H	85	50	-	-	-	-
GM1-250L	225	100, 125, 140, 160, 180, 200, 225	AC690	AC800	35	18
GM1-250M	50	35	-	-	-	-
GM1-250H	85	50	-	-	-	-
GM1-400L	400	225, 250, 315, 350, 400	AC690	AC800	50	25
GM1-400M	65	42	-	-	-	-
GM1-400H	100	65	-	-	-	-
GM1-630L	630	400, 500, 630	AC690	AC800	50	25
GM1-630M	65	42	-	-	-	-
GM1-630H	100	65	-	-	-	-
GM1-800M	800	630, 700, 800	AC690	AC800	75	50
GM1-800H	100	65	-	-	-	-
GM1-1250	800	1000, 1250	AC690	AC800	65	40
GM1-2000	1250	1400, 1600, 1800, 2000	AC690	AC800	65	40

Ordering Instructions:

The following technical information should be provided when placing an order: Main wiring scheme number, purpose and single line system diagram, rated voltage and rated current rated short-circuit breaking current/distribution room layout plan and arrangement and configuration diagram of switchgear;
Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;
The models specifications and quantities of the main electrical components inside the switchgear;
When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;

Q:whats your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear

Q: Can your product be customized?
A: Considering differences in voltage, frequency and other special transformer product in different countries and regions, our product can be customized according to your requirements.

Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?
A: 15 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
