Hot Sell ATBM6031-X, 4x4 QFN28 package, Wi-Fi transceiver chip with SDIO interface For TV, IPC, Set Top Box (STB), IP camera

Name: Hot Sell ATBM6031-X, 4x4 QFN28 package, Wi-Fi transceiver chip with SDIO interface For TV, IPC, Set Top Box (STB), IP camera
Brand: Golden Time Trading Limited
SKU: Tradewheel_2768546
Availability: InStock

FOB Price 3 - 3 USD / pieces

Contact Now

Quick Details (View All)

Model Number	ATBM6031-X	Place of Origin	Guangdong, China
Brand Name	For ALTOBEAM	Chipset	AltoBeam ATBM6031-X Wi-Fi and BLE chip
Supplier Type	Manufacturing	Application	Digital TV set, Set-Top-Box
Operating frequency	2.4GHz	Wi-Fi Standard	IEEE 802.11b/g/n 1T1R
BLE Standard	Bluetooth LE v5.0	Host interface	SDIO 2.0
Operation range	More than 150 meters in open space	RF antenna	External antenna (2.4GHz 50Ohm Resistance)
Security	WEP, WPA, WPA2, WPA3 personal	Power consumption	DC3.3V Max.300mA
Dimension	Typical L12.0W12.0H2.25mm	Package	28pin 4x4 QFN

Product Details

Product Description

Hot Sell ATBM6031-X, 4x4 QFN28 package, Wi-Fi transceiver chip with SDIO interface For TV, IPC, Set Top Box (STB), IP camera

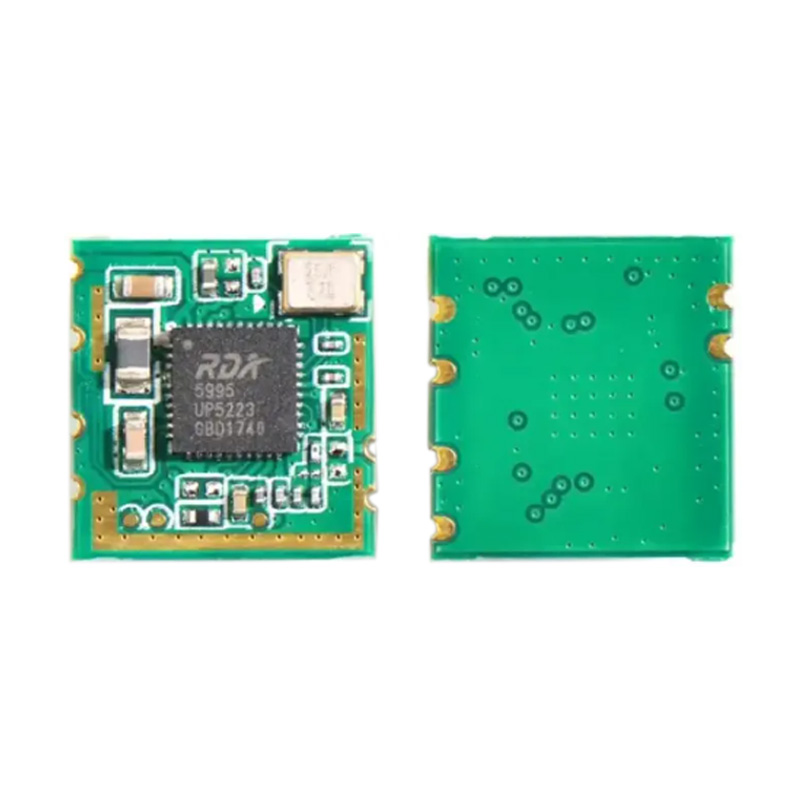

Product Name	ALTOBEAM AB6031X WiFi and BLE Module
Main chipset	AltoBeam ATBM6031-X Wi-Fi and BLE chip
Operating frequency	Operating frequency 2.412 ~ 2.472 GHz
Wi-Fi Standard	IEEE 802.11b/g/n 1T1R
BLE Standard	Bluetooth LE v5.0
Wi-Fi Modulation	802.11b: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5, 11Mbps) 802.11g/n: OFDM
Wi-Fi Bandwidth	802.11b/g/n 20MHz: ≤20MHz 802.11n 40MHz: ≤40MHz
Wi-Fi PHY data rates	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MSC0~7, up to 150Mbps
Wi-Fi sensitivity	802.11b 1Mbps: -97.5dBm; 802.11b 11Mbps: -90.0dBm; 802.11g 6Mbps: -93.5dBm; 802.11g 54Mbps: -76.5dBm; 802.11n MSC7 HT20: -74.0dBm;802.11n MSC7 HT40: -71.0dBm
Wi-Fi transmitting power	802.11b 11Mbps: 19.19dBm; 802.11g 54Mbps: 16.92dBm; 802.11n HT20 MSC7: 15.89dBm; 802.11n HT40 MCS7: 13.67dBm
BLE transmitting power	12.1dBm
BLE sensitivity	1Mbps: -99.5dBm
Host interface	SDIO 2.0
Operation range	More than 150 meters in open space
RF antenna	External antenna (2.4GHz 50Ohm Resistance)
Security	WEP, WPA, WPA2, WPA3 personal
Power consumption	DC3.3V Max.300mA
Operating temperature	-20 ~ +70℃ ambient temperature
Storage temperature	-40~ +125℃ ambient temperature
Humidity	5% to 90% maximum (non-condensing)
Dimension	Typical L12.0W12.0H2.25mm
Package	28pin 4x4 QFN

ATBM6031-X is a highly integrated 2.4GHz, 1T1R, IEEE 802.11b/g/n Wi-Fi transceiver chip with SDIO interface.

General features

• Intergrated low power MCU, 2.4GHz RF, IEEE 802.11b/g/n 1T1R MAC and baseband
• Integrated PA, LNA, Balun and T/R switch
• Compatible with 802.11 b/g/e/i/n/w specifications
• Support 802.11n Short-GI
• Support both 20MHz (HT20 )and 40MHz (HT40) channel bandwidth
• Support STA and AP function
• Support BSS, P2P and Miracast function
• Support A-MSDU and STBC stream reception
• Hardware Crypto Engine for Advanced Fast Security, including WEP, TKIP, AES and 802.11w
• Integrated LDO, only need 3.3V power supply
• Support 24MHz(default) and 40MHz crystal and external clock
• 4x4 QFN28 package

Peripheral interface

• SDIO 2.0
• I2C master/slave
• UART
• SPI master/slave
• PWM, GPIO
