High Quality DB720S FC SAN Switch 1000Mbps Transmission Rate Fibre Channel Switch Automatic Management SFP Fiber Port POE

Name: High Quality DB720S FC SAN Switch 1000Mbps Transmission Rate Fibre Channel Switch Automatic Management SFP Fiber Port POE
Brand: Beijing Yuanshengyuan Technology Co., Ltd.
SKU: Tradewheel_2735769
Availability: InStock

FOB Price 25700 - 25700 USD / units

Contact Now

Quick Details (View All)

Private Mold	NO	Products Status	Used
Ports	u2265 48	Transmission Rate	10/100/1000Mbps
Function	stackable, VLAN Support	Communication Mode	Full-Duplex
Brand Name	Brocade	Model Number	DB720S
Place of Origin	Beijing, China	Product Name	High quality Fibre Channel switch
Processor Type	Customization	FRONT Storage	The chassis contains hard disks up to 12x3.5 inches
Processor	Third generation Intel Xeon scalable processors	Warranty	3Year Service
Power Supply	800W	MOQ	50pices
RAID Controller	C2,RAID 0 for HDDs or SSDs(matching type/speed/capacity)	Processor speed	Maximum Depending
Model	2U 2-socket Rack Server

Product Details

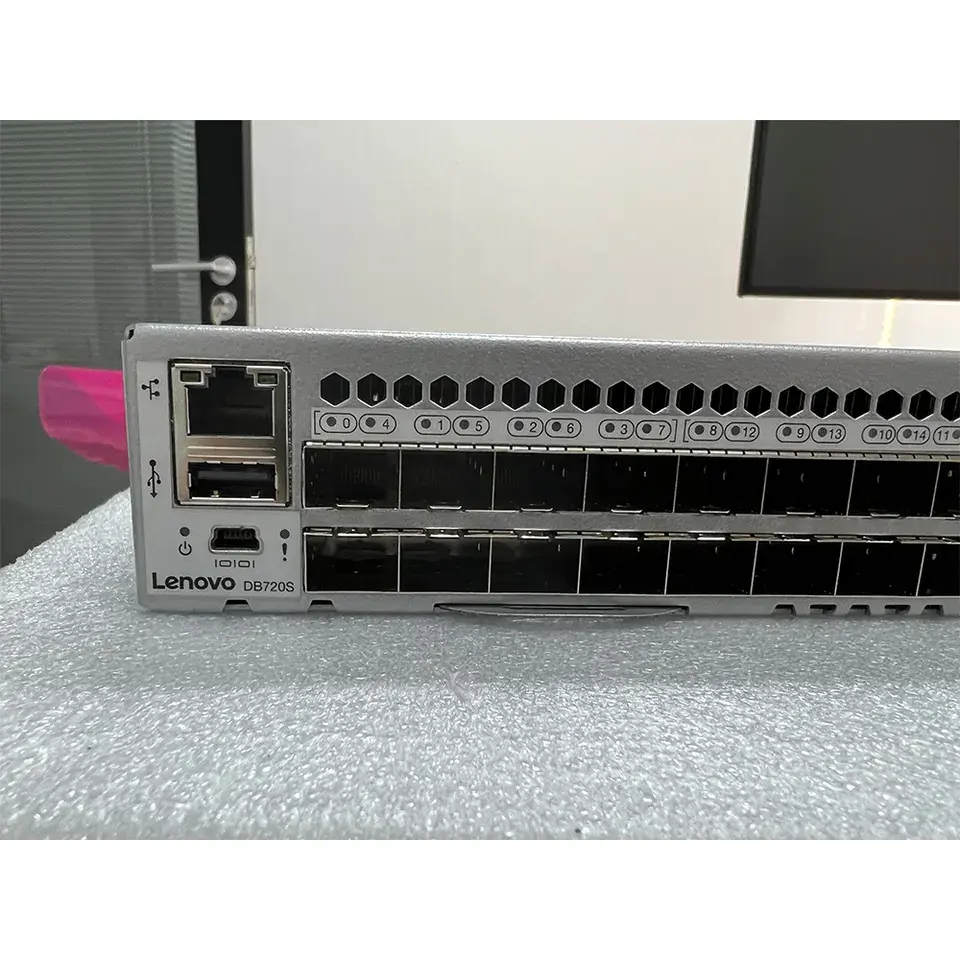

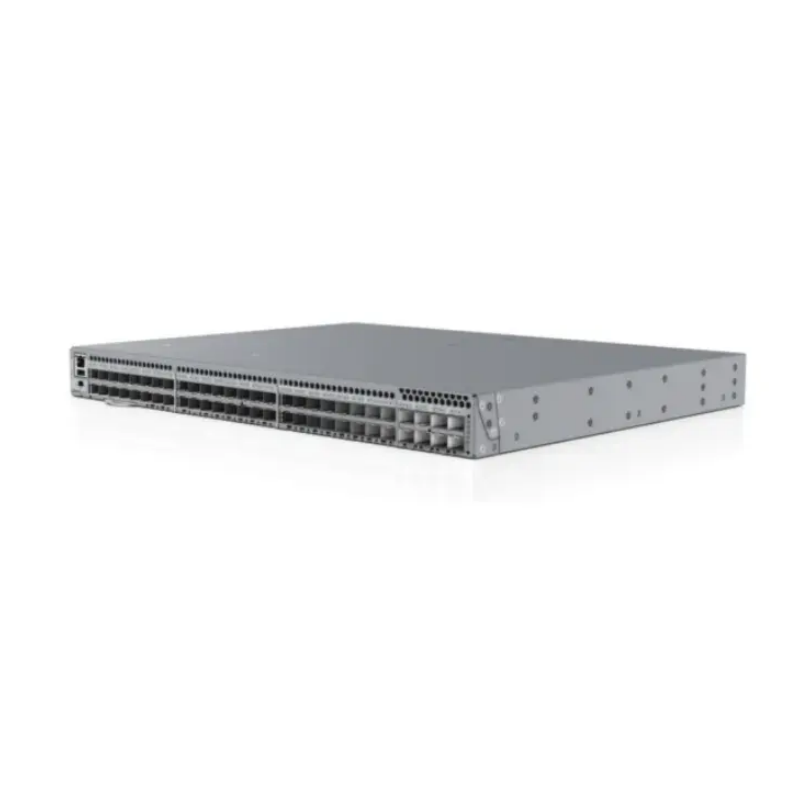

Fibre Channel switch DB720S FC SAN switch High-quality SAN switches for automatic management

Form factor	Standalone or 1U rack mount
Fibre Channel Ports	Switch mode (default): Minimum of 24 ports and maximum of 64 ports. Ports are enabled in increments of 8 ports up to 64 ports via Ports on Demand (PoD) licenses; E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. * Up to 48 autosensing ports that support 32Gb or 64Gb SFP+ transceivers * Up to 8 double density (DD) ports that support either SFP+ (32Gb or 64Gb) transceivers for a single connection, or SFP-DD transceivers that each support two 64G connections, thus providing an additional 16 ports at 64Gb. Access Gateway default port mapping: 56x SFP+ F_Ports, 8x SFP+ N_Ports. The SFP+ ports are capable of auto-negotiating to 8, 16, 32, or 64Gb speeds depending on the SFP+ model and the minimum supported speed of the optical transceiver at the other end of the link.
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	4K active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics
Performance	Non-blocking architecture with wire-speed forwarding of traffic: * 8GFC: 8.5 Gb/sec line speed, full duplex * 10GFC: 10.53Gb/s line speed, full duplex; 10Gb/s optionally programmable to fixed port speed. * 16GFC: 14.025 Gb/sec line speed, full duplex * 32GFC: 28.05 Gb/sec line speed, full duplex * 64GFC: 57.8 Gb/sec line speed, full duplex

Company Information

Beijing Yuanshengyuan Technology Co., Ltd. is a high-tech enterprise integrating independent research and development, sales and service. Its headquarters and R&D base are located in the scenic Zhongguancun Science and Technology Park in Beijing. The companys sales network covers the whole country, strong technology and research and development strength, and is committed to becoming a "high-tech enterprise" recognized by the government.

Since its establishment, the company has always adhered to the corporate philosophy of "service first, mutual benefit and win-win", gathered the industry elites, combined the advanced foreign information technology, management methods and enterprise experience with the specific reality of domestic enterprises, and took "embedded, intelligent, systematic and integrated" as the technology orientation. To provide users with reliable automated communication transmission products and embedded innovative solutions, to provide comprehensive system integration, hardware, software, user-centered design services.

Our business involves industrial Ethernet communication, industrial fieldbus transmission, industrial optical fiber access, industrial computer and power management system and other professional fields. The main products have independent knowledge and monopoly, and many international certifications such as CE, FCC, RoHS, IEC61850 and various industry standard certifications such as EMC and electromagnetic compatibility in the power industry. And strive to pass the State Grid Electric Power Research Institute A class certification test and many other domestic professional organizations organized technical testing and certification, to meet the smart grid, coal mine safety, rail transit and other industry standards.

Packaging & Shipping

FAQ

Q1. You are factory or trading campany?
A1: We are OEM/ODM factory specialized in all in one pc, laptop and mini pc.

Q2.What is your shipping way?
A2:We are usually ship it via DHL/UPS/Fedex//Aramex.

Q3.Can I take a sample for quality check?
A3:Of course, we support sample order for testing the quality.

Q4.Can you add logo on the products?
A4:Yes,we can. Laser print,Silk print for your choose.

Q5.Can you customize package box for us?
A5:Sure,our factory produces OEM/ODM.

Q6.How can you slove the problem if we receive the defective goods.
A6:Send us the pictures or video first time,we will send free replacement spare parts for you.
