GOOTU Dual Output Smart Wifi Monitor 4KW 6KW 7KW 8KW 10KW Hybrid Solar Inverter WIth MPPT Solar Charge Controller

Name: GOOTU Dual Output Smart Wifi Monitor 4KW 6KW 7KW 8KW 10KW Hybrid Solar Inverter WIth MPPT Solar Charge Controller
Brand: Shenzhen Jiesaiyuan Electricity Co., Ltd.
SKU: Tradewheel_2735489
Availability: InStock

FOB Price 21 - 21 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Model Number	JSY Series
Brand Name	GOOTU	Input Voltage	220/230Vac
Output Voltage	230Vac	Output Current	44.3A
Output Frequency	50Hz/ 60Hz	Output Type	Single, DUAL
Type	DC/AC Inverters	Inverter Efficiency	98%
Weight	9.8KG	Product name	6200W Hybrid Solar Inverter
Application	Home Solar Power System	Inverter type	On Off Solar Inverter
Protection	Short Circuit Overload Overvolt Overtemp	Display	LCD Display
Certificate	CE FCC ROHS	Rated power	4200W/6200W
Communication	RS232/WIFI/Remove LCD/GPRS	Waveform	Pure Sine Wave
OEM/ODM	Warmly Welcomed

Product Details

Products Description

What is dual output solar inverter?

GOOTU dual output solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.

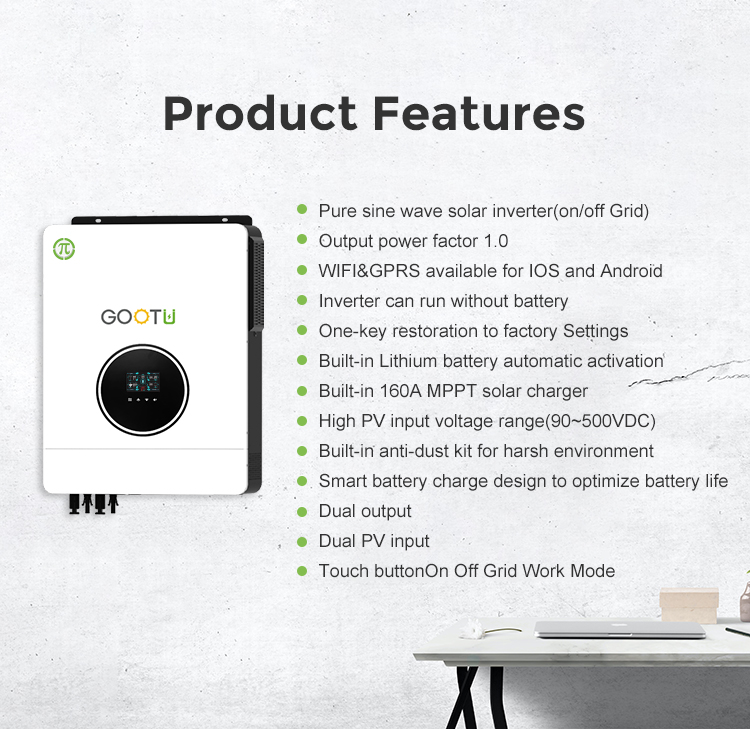

GOOTU Dual Output Solar Inverter Main Features

* Pure sine wave solar inverter (Grid Tie / Off Grid).

* 1.0 output power factor.

* WIFI & GPRS available for IOS and android.

* Support running without battery.

* One click to restore factory settings.

* Built-in 120/160A MPPT solar charger.

* Built-in lithium battery automatic activation.

* Built-in anti-dusk kit for harsh environment(optional).

* High PV input voltage range(360~500VDC)

* Smart battery charge design to optimize battery life.

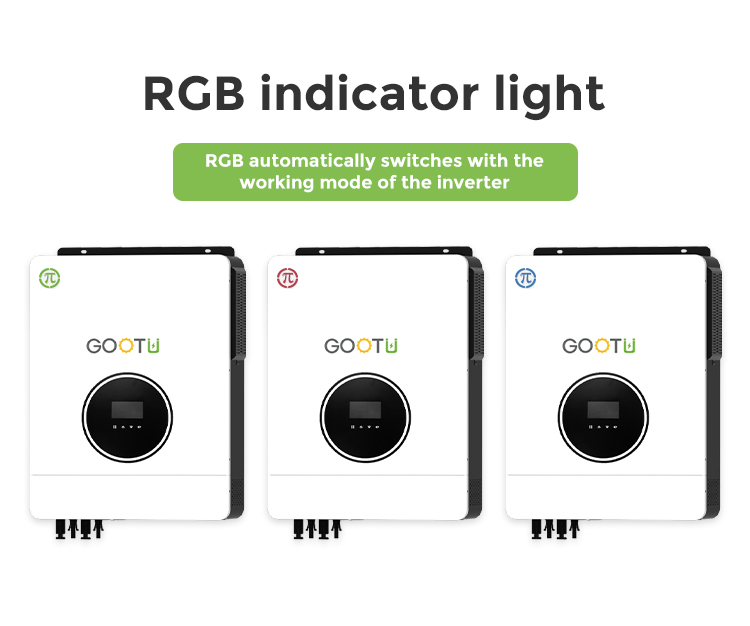

* Touch button, RGB light.

* Dual output.

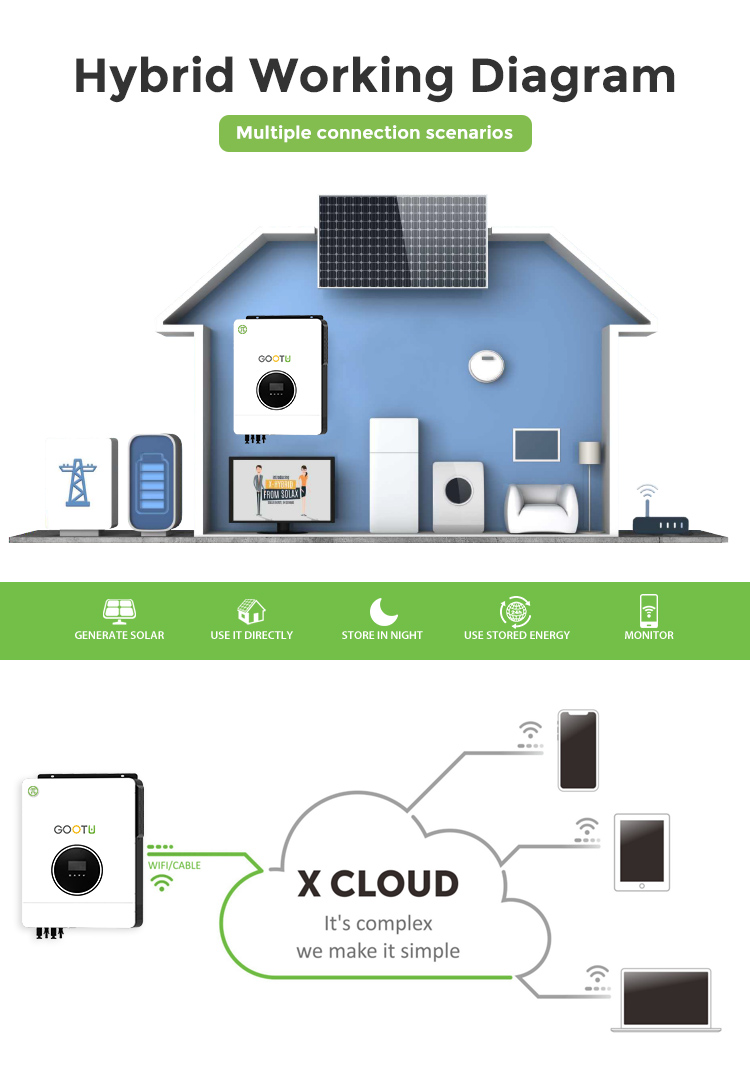

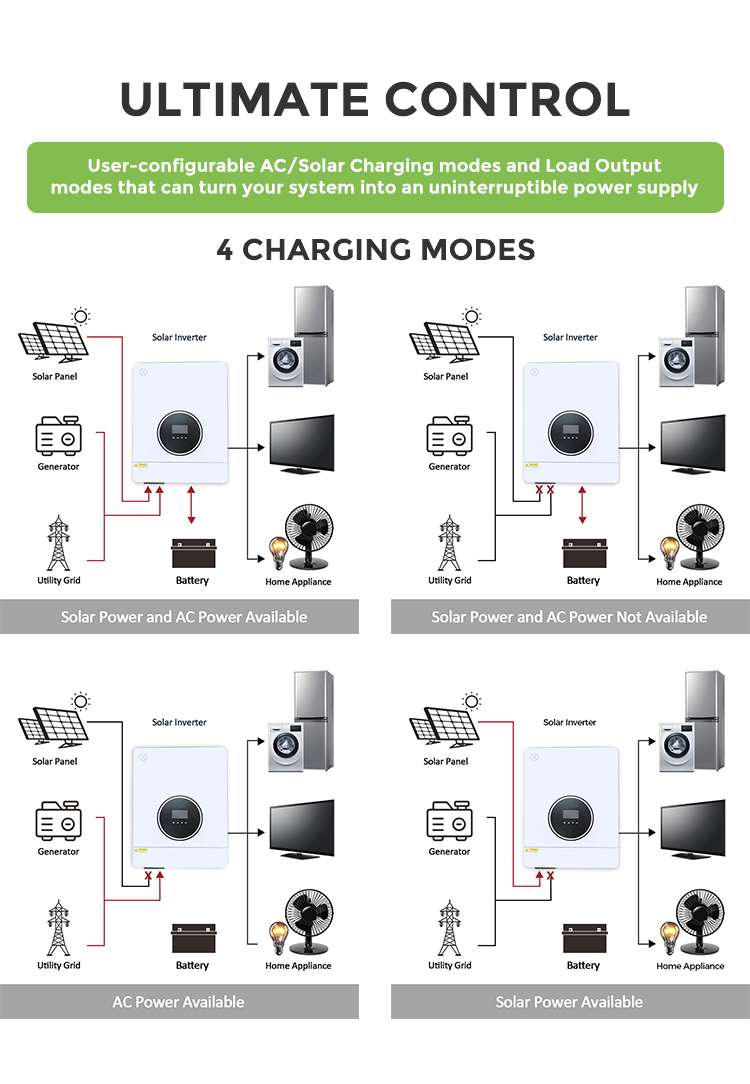

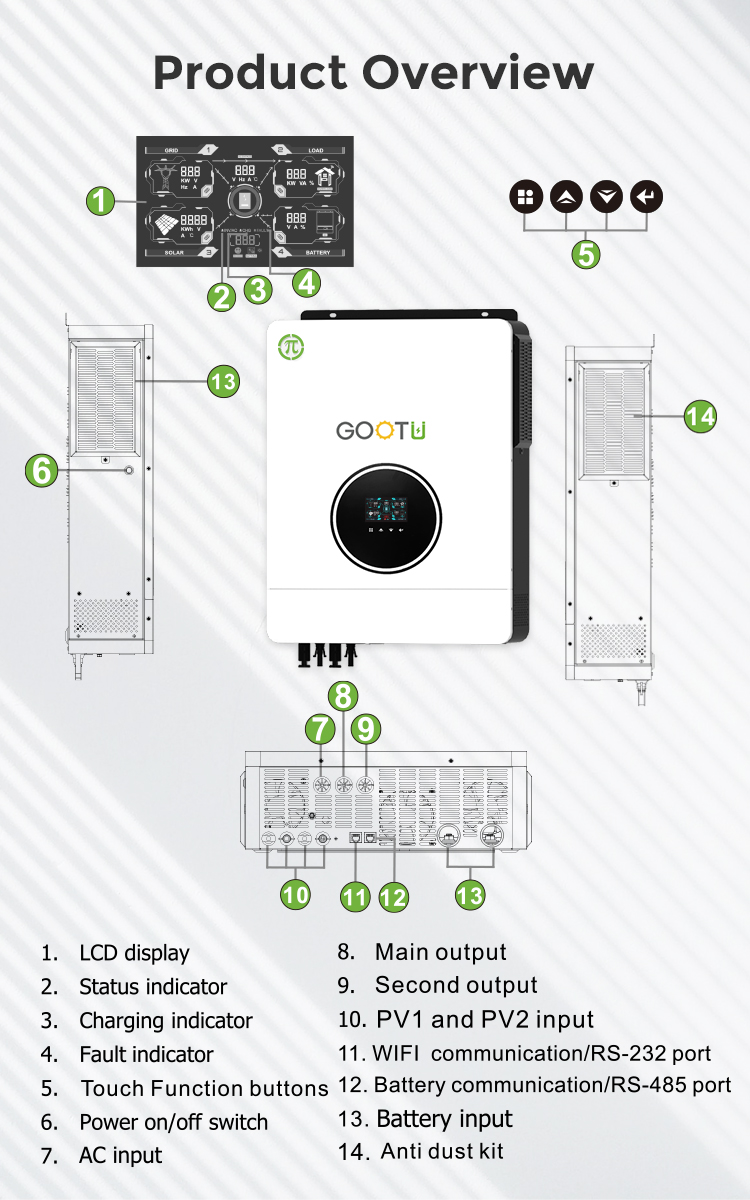

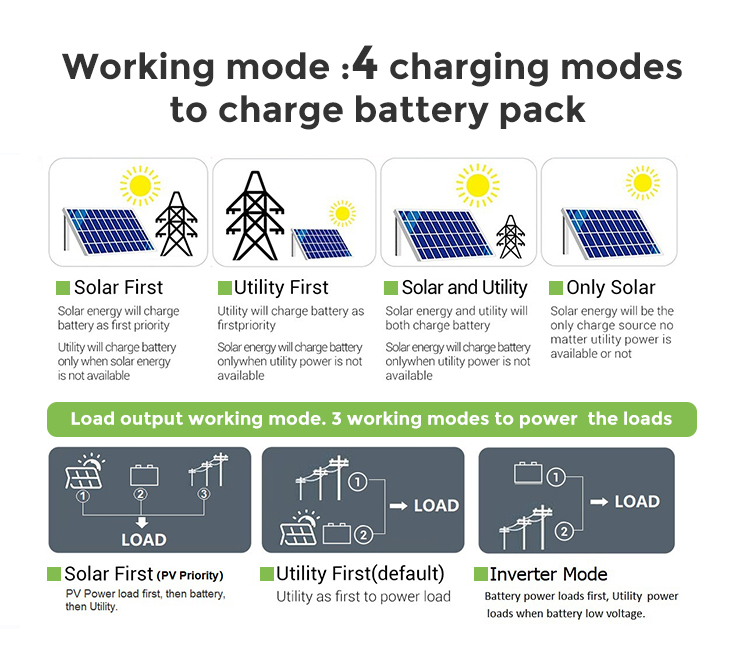

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Details Images

NOTE:

The JSY Series Inverters are wide voltage Hybrid Inverters. The voltage that starts to connect to the solar panels must be above 120V for the Hybrid Inverter to work normally. If you have any questions before order, please feel free to contact us, thank you!

Data Sheet

Model	JSY-H4862E120-D
Maximum PV Input Power	6500W
Rated Output Power	6200W
Maximum Solar Charging Current	120A
GRID TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC / 500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC / 120VDC
MPPT Voltage Range	90VDC - 450VDC
Number of MPPT Trackers/Maximum Input Current	1 / 27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5-253VAC
Nominal Output Current	27A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	6200W
Maximum Main Load	6200W
Maximum Second Load(battery mode)	2067W
Main Load Cut Off Voltage	44V DC
Main Load Return Voltage	54V DC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140V AC/180V AC
Acceptable Input Voltage Range	90-280 V AC or 170-280V AC
Maximum AC Input Current	40A
Nominal operating frequency	50/60Hz
Surge power	12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240V AC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	48V DC
Maximum Solar Charging Current	120A
Maximum AC Charging Current	100A
GENERAL
PHYSICAL
Dimension,D X W X H(mm)	420310110
Net Weight(kgs)	11
INTERFACE
Communication Port	RS232/WIFI/Remove LCD/GPRS
ENVIRONMENT
Operating Temperature	-10-50℃

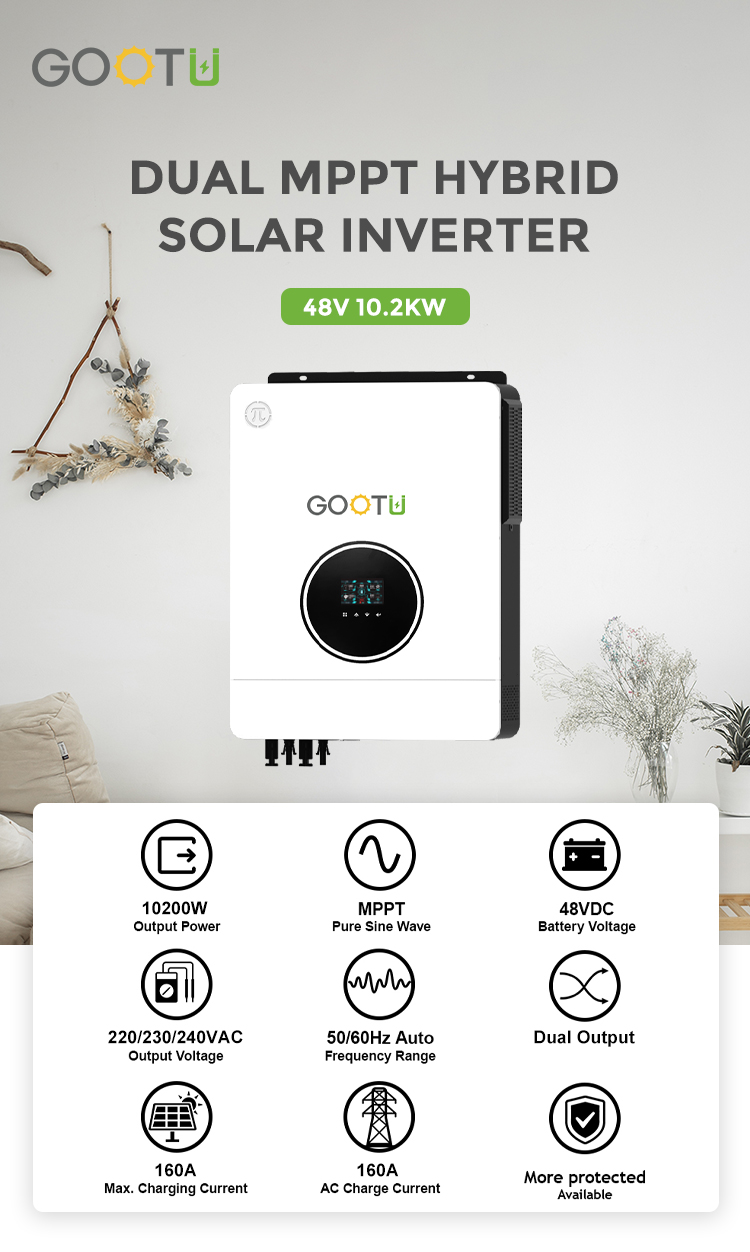

Model	JSY-H4872E140-D	JSY-H4882E160-D	JSY-H48102E160-D
Rated Output Power	7200W/7200VA	8200W/8000VA	10200W/10200VA
Max. PV Input Power	8200W	8200W	10200W
Max. Solar Charging Current	160A	160A	160A
Grid Tie Operation
PV Input(DC)
Normal DC Voltage / Max. DC Voltage	360VDC/500VDC
Start-up Voltage / Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Tracker / Max. Input Current	1/27A
Grid Output(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195~253VAC
Nominal Output Current	31.3A	35.6A	44.3A
Power Factor	＞0.99
Feed-in Grid Frequency Range	49~51±1HZ
Efficiency
Max. Conversion Effeciency(DC/AC)	98%
Two Load Output Power
Full Load	7200W	8200W	10200W
Max. Main Load	7500W	8200W	10200W
Max. Second Load(Battery Mode)	2400W	2733W	3400W
Main Load Cut Off Voltage	44VDC	44VDC	44VDC
Main Load Return Voltage	48VDC	48VDC	48VDC
Off Grid Operation
AC Input
AC Start-up Voltage / Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC/170-280VAC
Max. AC Input Current	40A	40A	50A
Nominal Operatiing Frequency	50/60HZ
Super Power	14400W	16400W	20400W
PV Input(DC)
Max. DC Voltage	500VDC
MPPT Voltage Range	90VDC~450VDC
Number Of MPPT Tracker/Max. Input Current	1/27A
Battery Mode Output(AC)
Normal Output Voltage	48VDC
Output Waveform	Pure Sine Wave
Efficiency(DC to AC)	94%
Battery & Charger
Nominal DC Voltage	48VDC
Max. Solar Charging Current	160A	160A	160A
Max. AC Charging Current	120A	140A	140A
General
Physical
Product Dimension	420310110mm
Carton Dimension	588463205mm
Net Weight	14.2KGS	14.2KGS	14.5KGS
Gross Weight	15.7KGS	15.7KGS	16KGS
Interface
Communication Port	RS232 / WIFI / RS485 /GPRS
Enviroment
Operating Temperature	-10~50°C

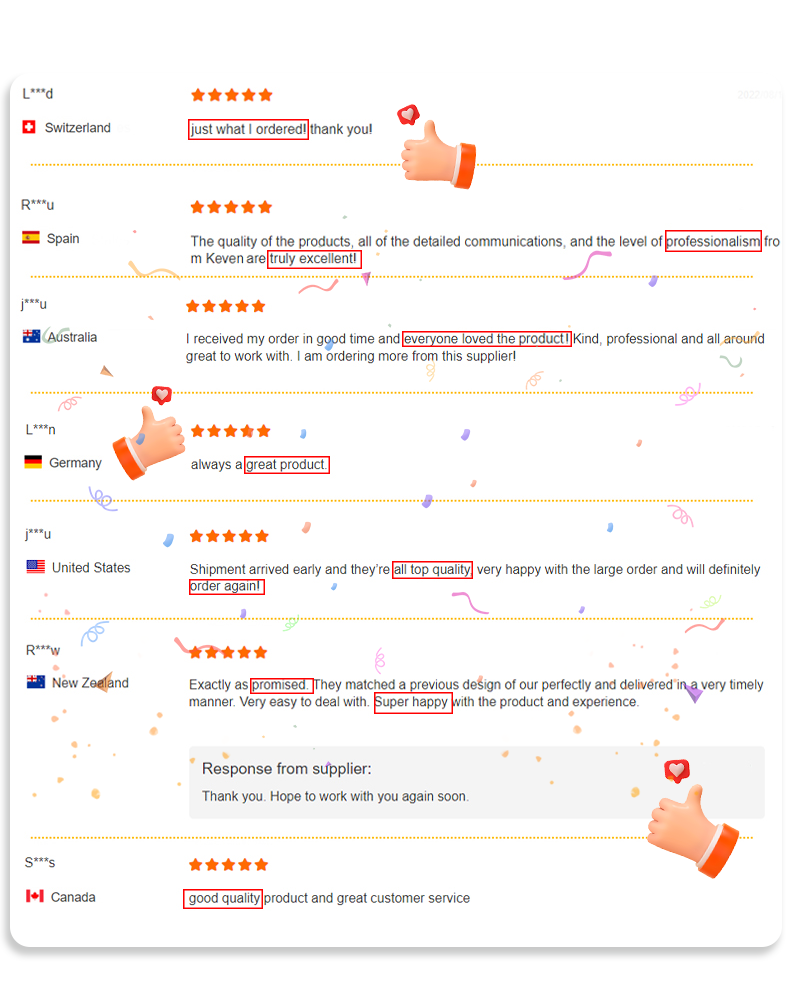

Customer Reviews

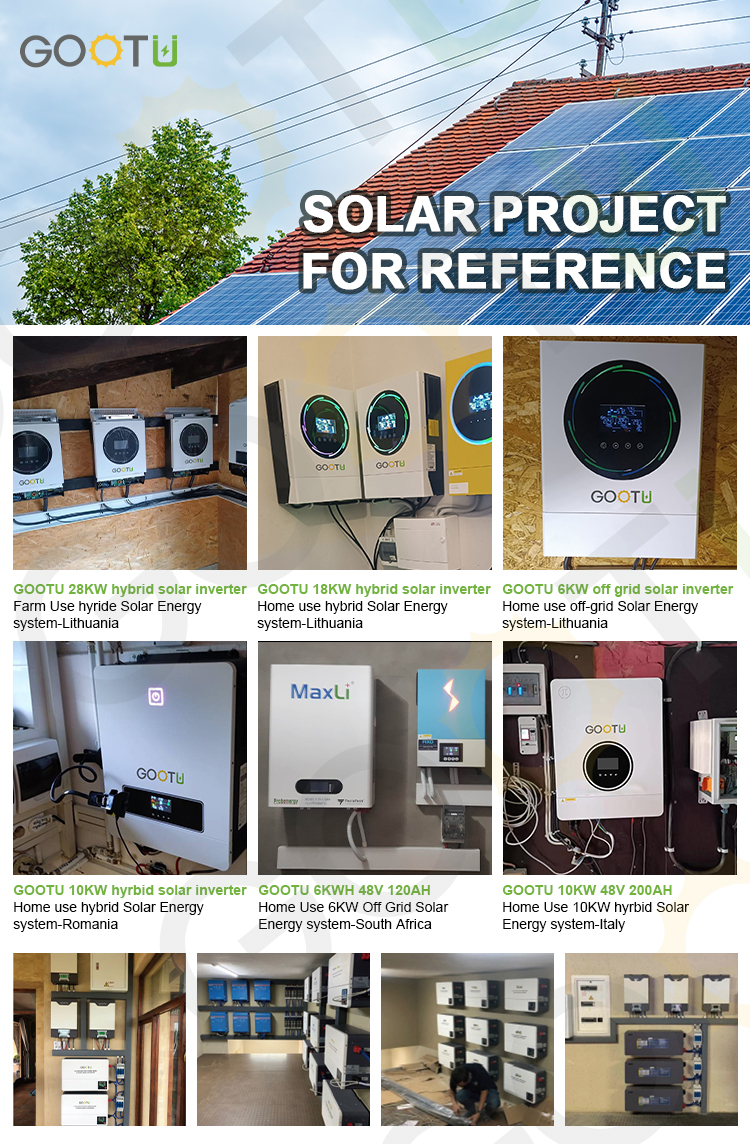

Project

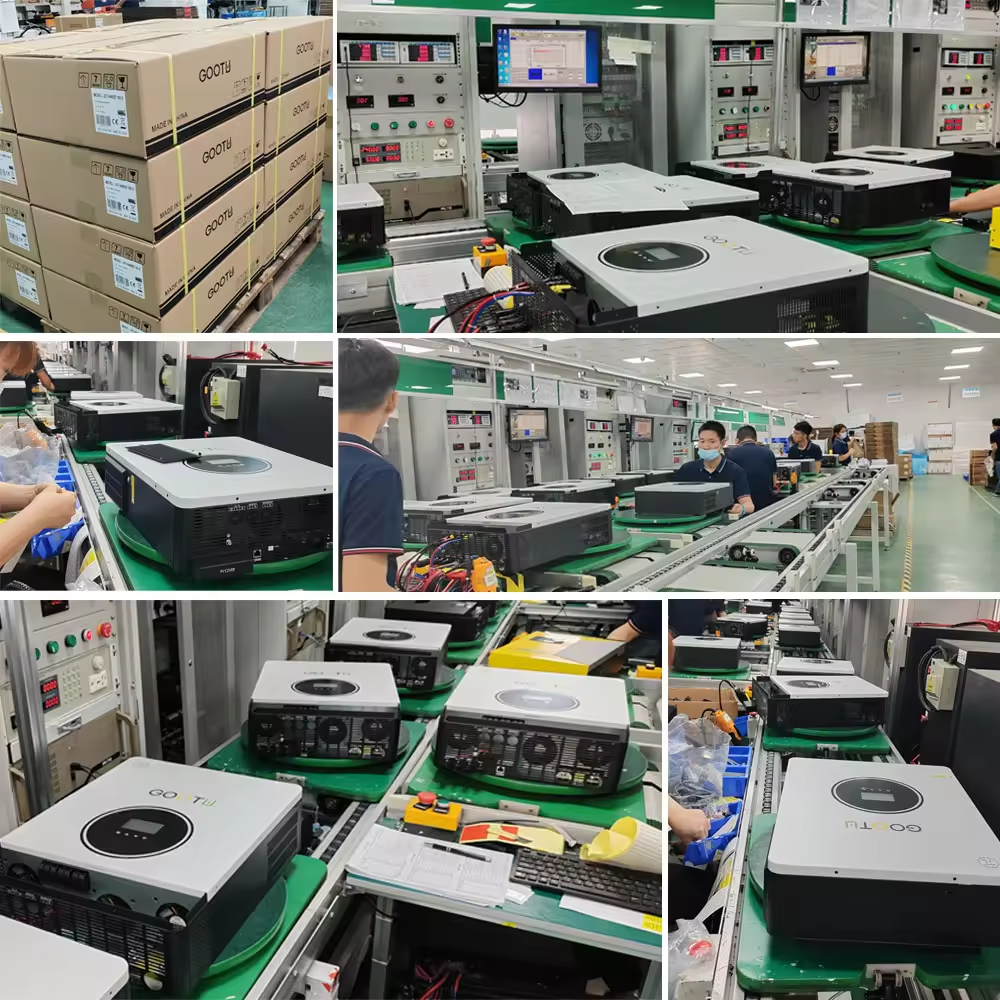

Company Profile

Shenzhen Jiesaiyuan Electricity Co., Ltd.,

Shenzhen Jiesaiyuan Electricity Co., Ltd is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters, energy storage battery. We always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter & battery technology, rigorous quality control and continuous improvement of customer service, and enjoys a high reputation in the industry with excellent product quality, good reputation and advanced innovation consciousness. We can provide different application systems, engineering services and optimal system solutions according to our customers requests. Our company has a professional R&D team which is composed of experienced professors, senior engineers and technical persons. We have abundant technical strength and rich experience in engineering design and construction.We always adhere to provide customers with quality products and services, and actively work with customers around the world to create a better future.

FAQ

Q: How about the warranty? What you will do if the inverter in problem during 1 or 2 years? If refund should i return the goods?
A: The inverters are of 5 years warranty, during the warranty we offer you free replacements for parts,no need to send back to
china. The warranty period has expired , we will offer support but you need to pay for the parts component cost.
Q: How long the delivery time if i order? How soon can you send out the goods?
A: Some of the inverters in stock, and to make new inverters take 1-2 weeks time, ODM OEM take 4-5 weeks time for customization.
Q: What happen if I meet problem during instalation? Will you support and how?
A: Yes that we are 24hours online to help, pls contact us by email or other way should anything need help,no matter technical service or after sale service.
Q: Does your company also provide other solar products except Pure Sine Wave Inverter?
A: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q: What certificates do you have for your products? Can you provide sample for testing? A: Sure, please kindly contact us and we will provide sample for you. Our products have acquired RoHS, CE, FCC, UL, PSE
certificates, which is able to satisfy most country’s importing requirements. Q: How do you ship the goods and how long does it take?
A: Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6days to arrive. By air, by sea are also acceptable. EXW, DDU, DDP, FOB,CIF, DAP, etc. All terms are available.
