GOOTU 380V IP65 10KW Low Voltage 10000W Three Phase Hybrid Solar Inverter With WiFi Module And MPPT Solar Charge Controller

Name: GOOTU 380V IP65 10KW Low Voltage 10000W Three Phase Hybrid Solar Inverter With WiFi Module And MPPT Solar Charge Controller
Brand: Shenzhen Jiesaiyuan Electricity Co., Ltd.
SKU: Tradewheel_2735592
Availability: InStock

FOB Price 1118 - 1118 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Model Number	GT-3PH-10K-EU
Brand Name	GOOTU	Input Voltage	3/N/PE, 380V/400V
Output Voltage	220-240V	Output Current	16.7A
Output Frequency	50Hz/ 60Hz	Output Type	Triple, Three Phase
Size	422702281mm	Type	DC/AC Inverters, DC/DC Converters
Inverter Efficiency	99%	Weight	38KG
Product name	IP65 Three Phase Hybrid Solar Inverter	Application	Home Solar Power System
Inverter type	Hybrid Solar Inverter	Protection	Short Circuit Overload Overvolt Overtemp
Display	LCD Display	Certificate	CE FCC ROHS,IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1
Rated power	10000W	Communication	WIFI/RS485/CAN
Waveform	Pure Sine Wave	OEM/ODM	Warmly Welcomed

Product Details

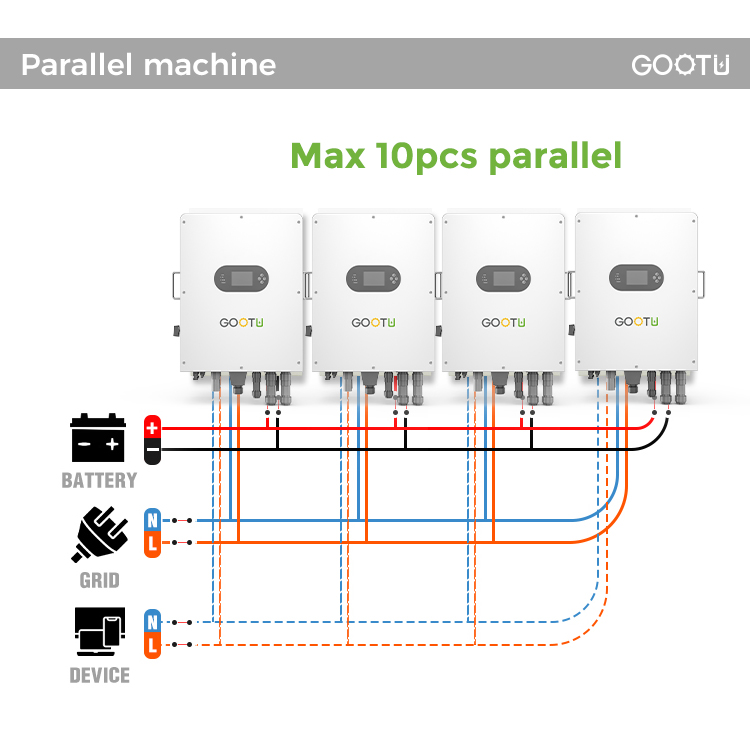

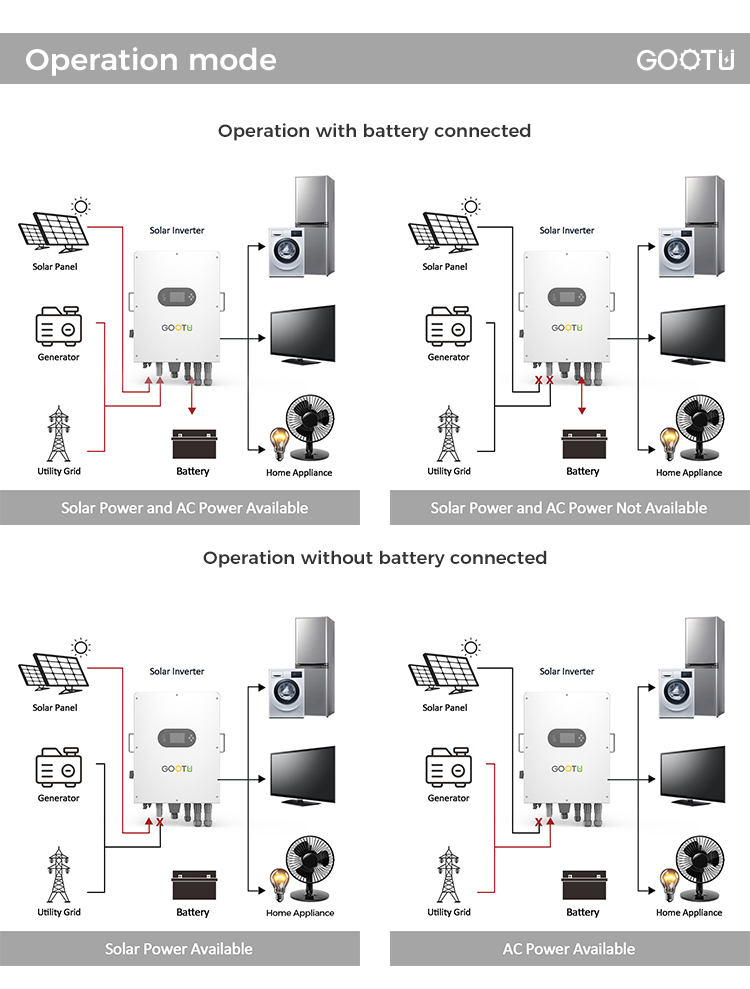

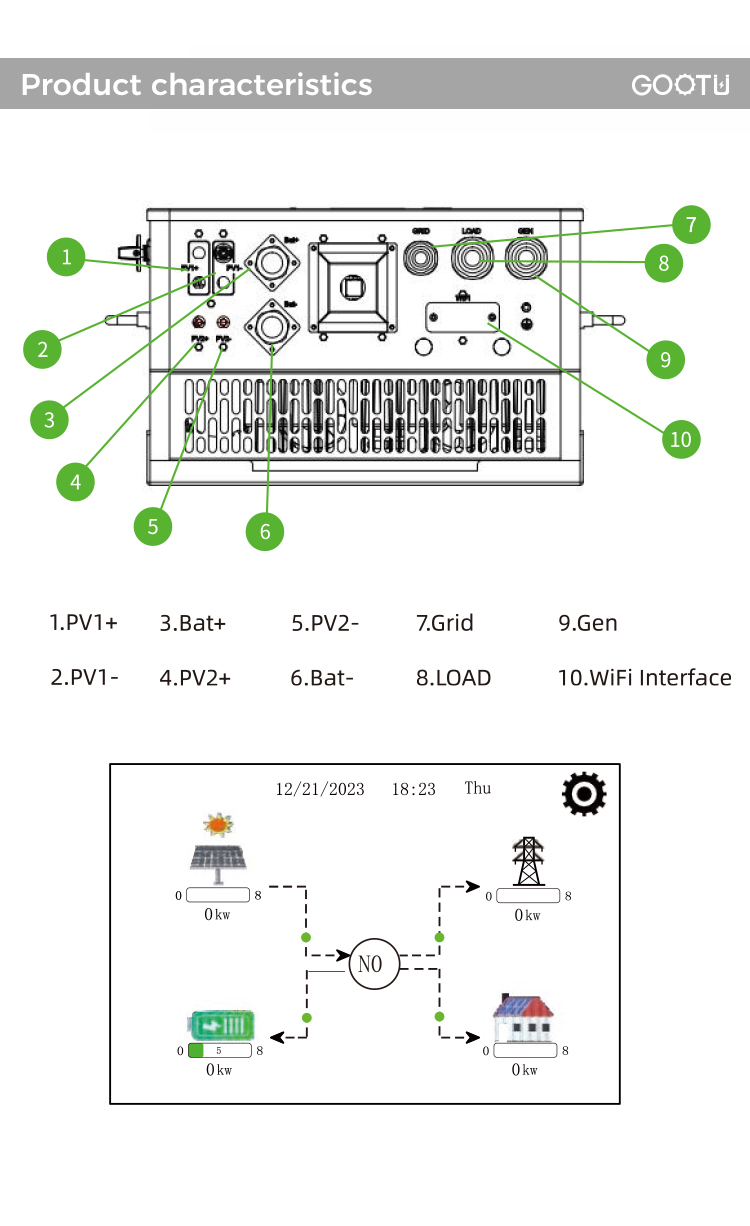

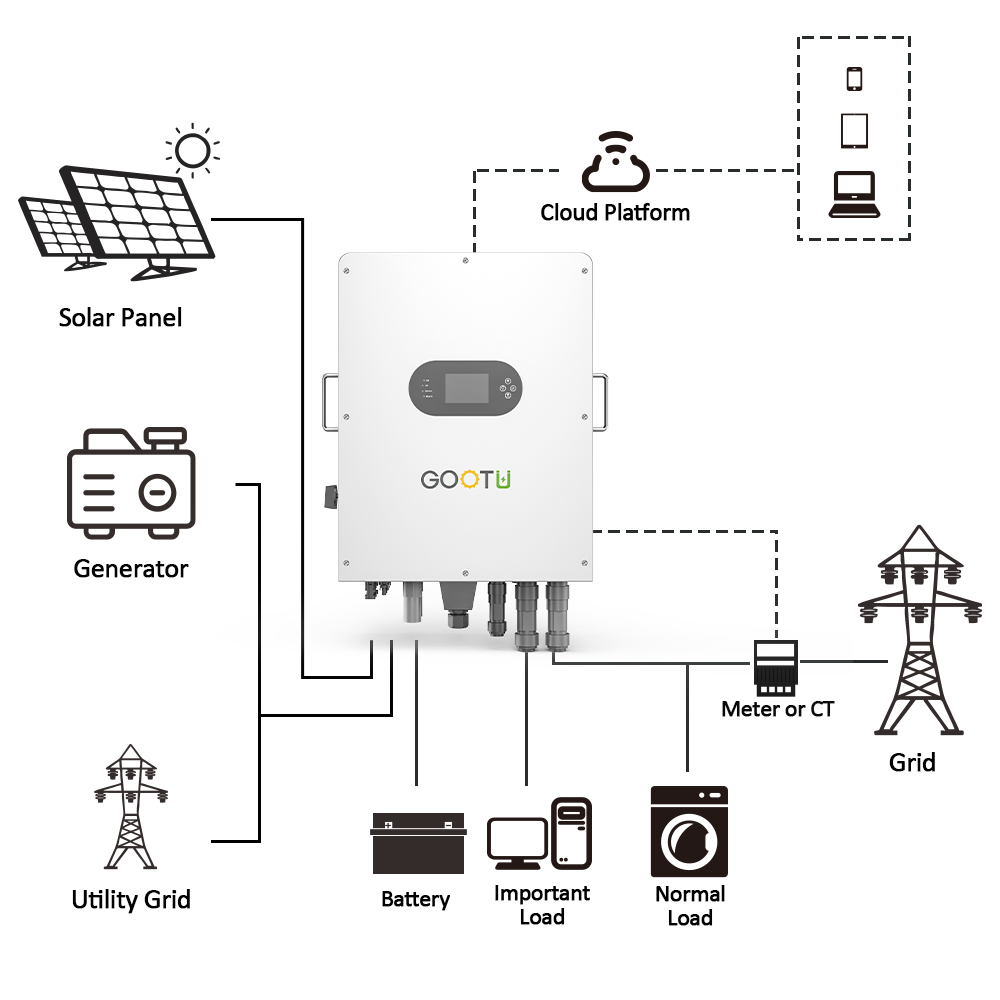

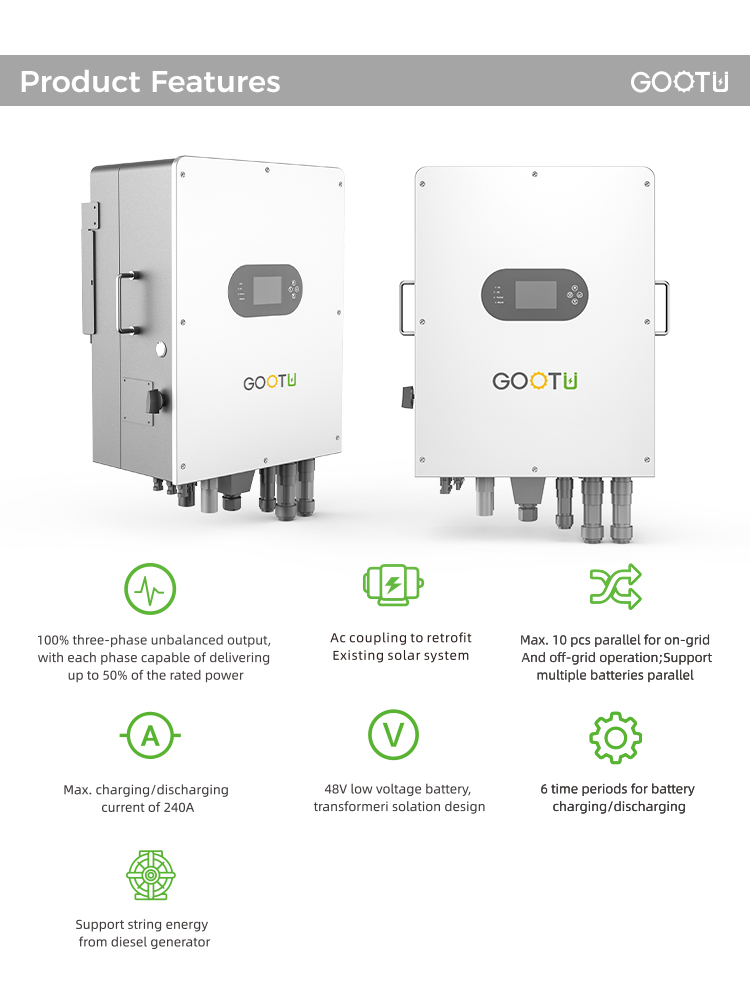

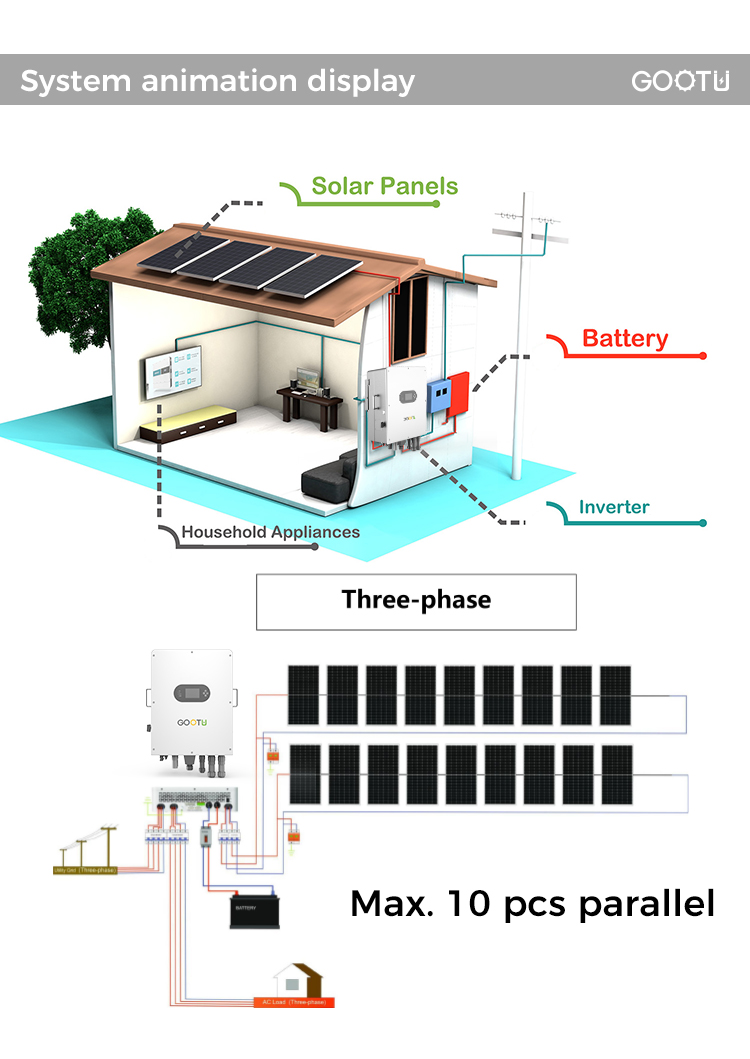

Details Images

Data Sheet

Model	GT-3PH-6K-EU	GT-3PH-8K-EU	GT-3PH-10K-EU	GT-3PH-12K-EU
PV String Input
Max. DC Input Power (W)	7800	10400	13000	15600
Rated PV Input Voltage (V)	550 (160-800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load MPPT Voltage Range (V)	350-650
Max. DC Input Current(A)	13+13			26+13
Max. DC Short Circuit Current(A)	17+17			34+17
No.of MPPT Trackers	2
No.of Strings per MPPT Tracker	1+1			2+1
AC Output
Rated AC Output Power (W)	6000	8000	10000	12000
Max AC Output Power (W)	6600	8800	11000	13200
AC Output Rated Current (A)	9.1	12.1	16.7	18.2
Max AC Output Current (A)	10	13.4	18.4	20
Max Output short circuit current (A)	75
Max. Continuous AC Passthrough(A)	45
Peak Power (oﬀ grid)	2 times of rated power, 10 S
Power Factor	0.8 leading - 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac
Grid Type	Three Phase
Total Harmonic Distortion (THDi)
