Gas Detector RS485 1- 4 Channel CO2 / CO / H2S / O2 Controller Control Panel Gas Alarm Control System

Name: Gas Detector RS485 1- 4 Channel CO2 / CO / H2S / O2 Controller Control Panel Gas Alarm Control System
Brand: Yaoan (shenzhen) Electronic Technology Development Co., Ltd.
SKU: Tradewheel_2583036
Availability: InStock

FOB Price 148 - 269 USD / sets

Contact Now

Quick Details (View All)

Warranty	12 months, 12 Months Gurantee	Type	Gas alarm system
Customized support	OEM, ODM, OBM, Software reengineering	Place of Origin	Shandong, China

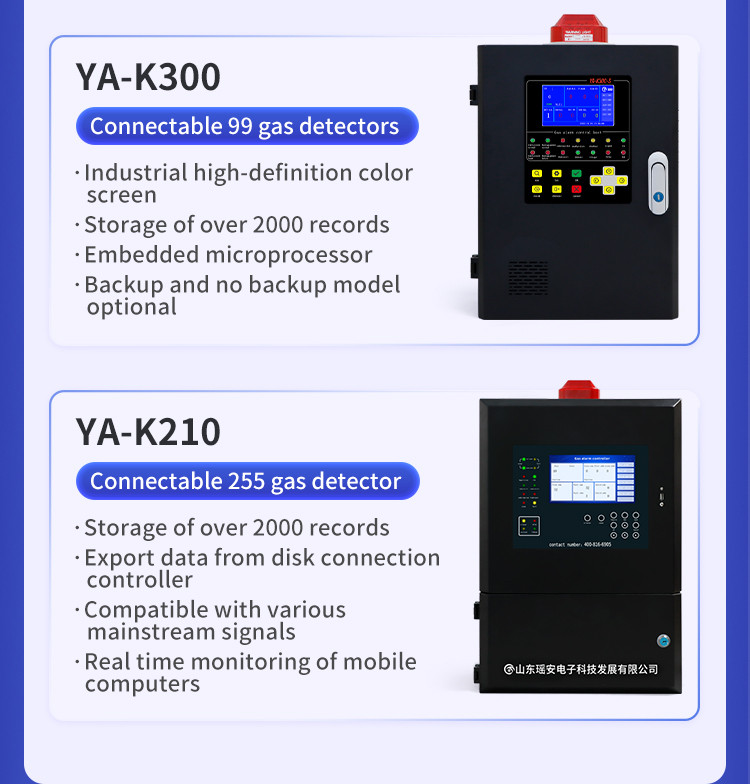

Brand Name	Yaoan	Model Number	YA-D400+YA-K300
Power	Electric Power	Material	Die-casting aluminum
Usage	Industrial, laboratory, Household	Product name	Detector Controller Matching
Certification	CE	Power supply	AC220Vu00b115% 50~60Hz
Language support	ENGLISH	Alarm Output	RS485,4-20mA
Display	LCD display	Backup Battery	Optionable
Operating Temperature	-20~50u2103;<95%RH	Keyword	Gas Alarm Detection Controller

Product Details

Product Discription

VOC Gas Detector

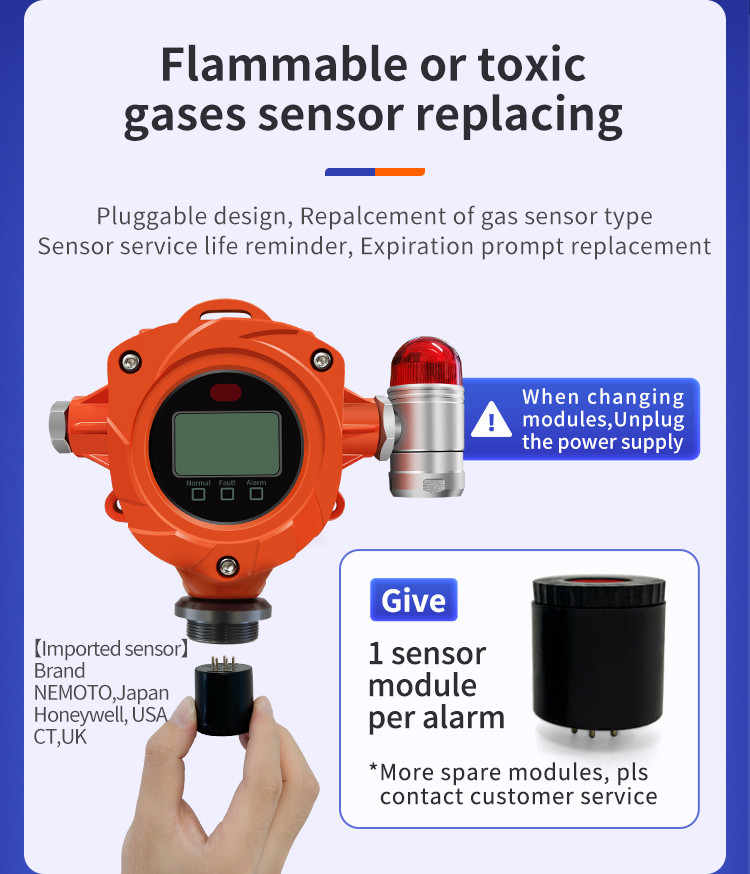

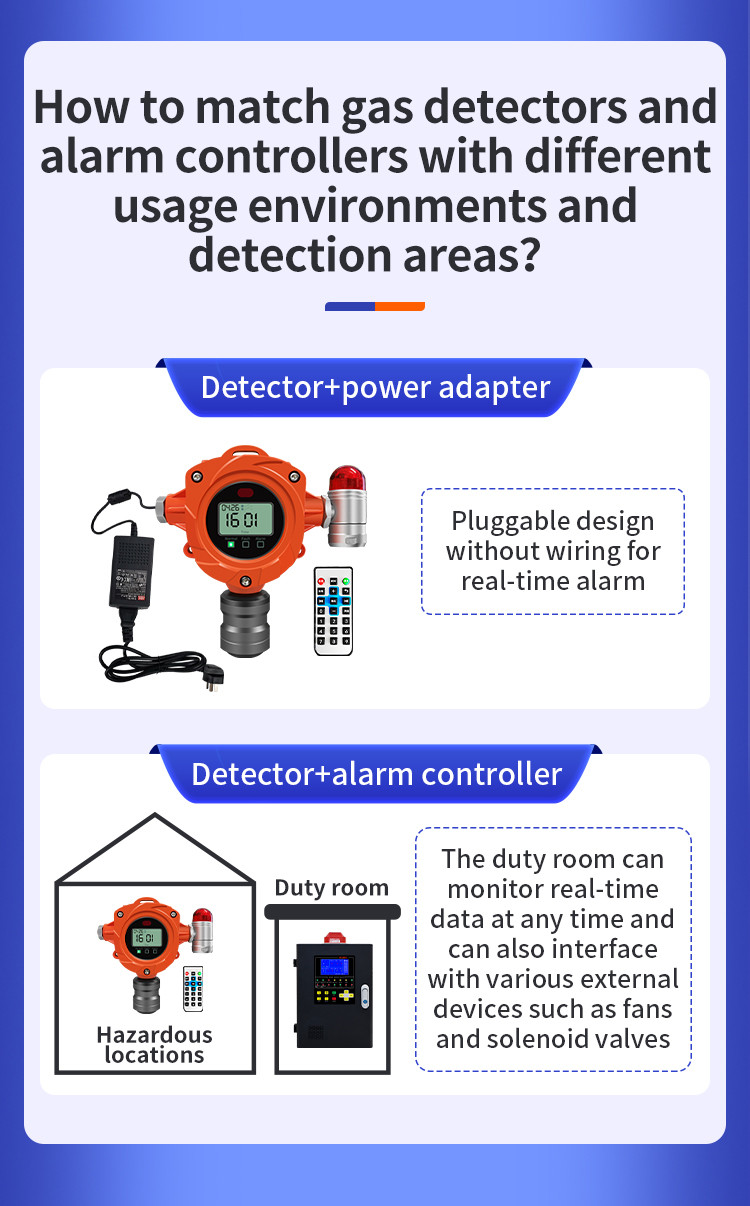

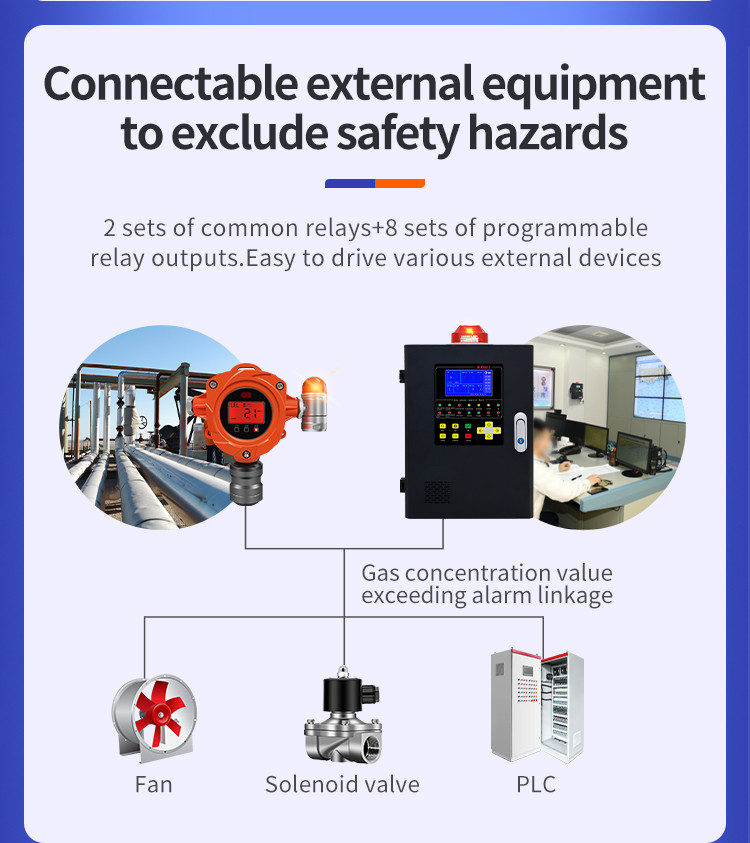

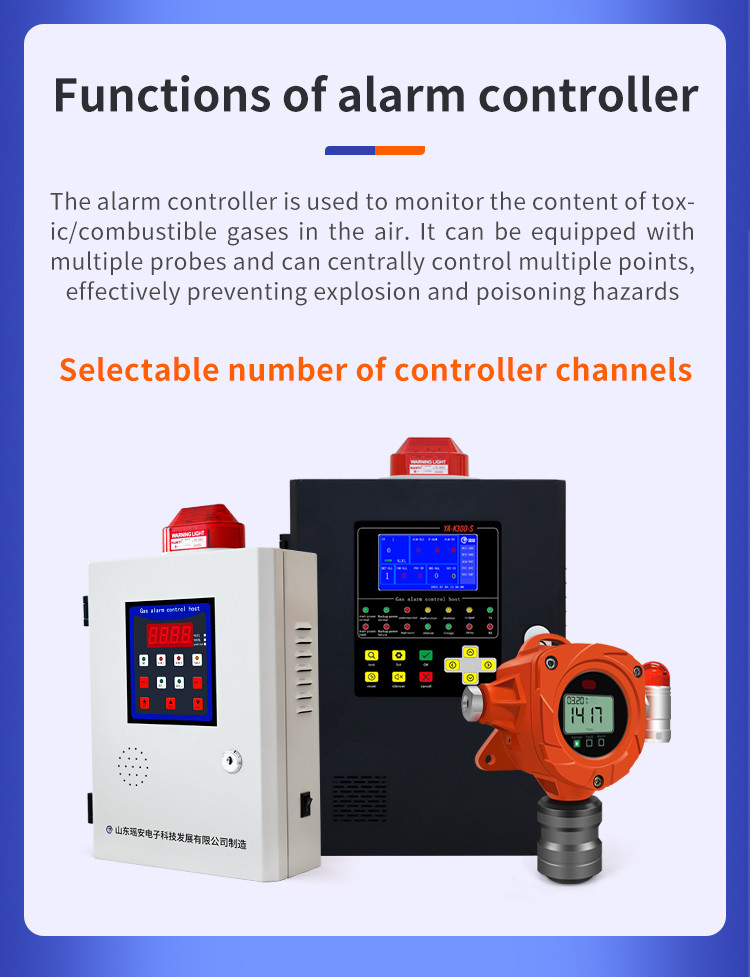

The gas detector consists of a world-famous brand of gas sensors to enhance the precise operation of the signal processing module, the output of the standard signal can be easily introduced into the DCS, PLC system or other data acquisition systems. The gas alarm controller produced by our company can be used in combination to realize the function of gas detection and alarm system.

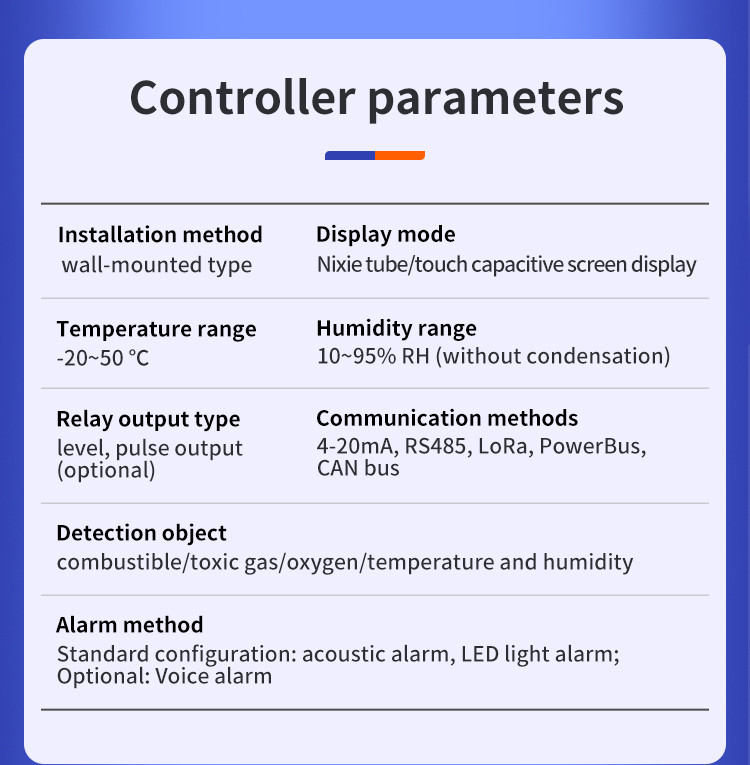

ITEM	VALUE
Power supply	AC220V±15% 50~60Hz; backup power supply: optional
Certification	CE ROHS FCC EX, SIL, ISO9001
Measuring range	PPM %VOL %LEL
Power	≤15W
Output power supply voltage	DC24V±25%
Supporting detector model	Supporting detector model YA-D series

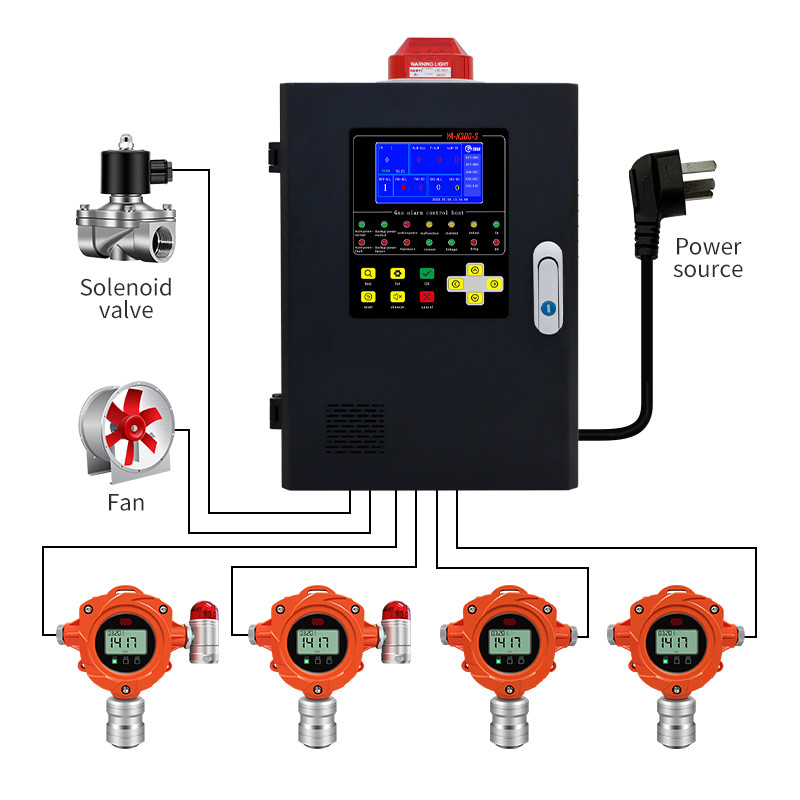

Number of mount detectors	Support up to 8 channels of 4-20mA input and 99 channels of RS485 data input
Instructions	 The indicator light indicates the status of the detector and the machine  LCD screen displays alarm concentration or alarmdetector number  Alarm and fault status are indicated by different voice alarm sounds Alarm mode Sound (sound pressure levelabove 70dB and below 115dB at a distance of 1 meter), light, voice broadcast alarm
Response time	≤30 seconds
Protection class	IP30
Detector connected to controller line requirements	Connecting split line detector: RVVP3×1.5mm² Connect 485 bus type detector: RVVSP4×1.5mm²

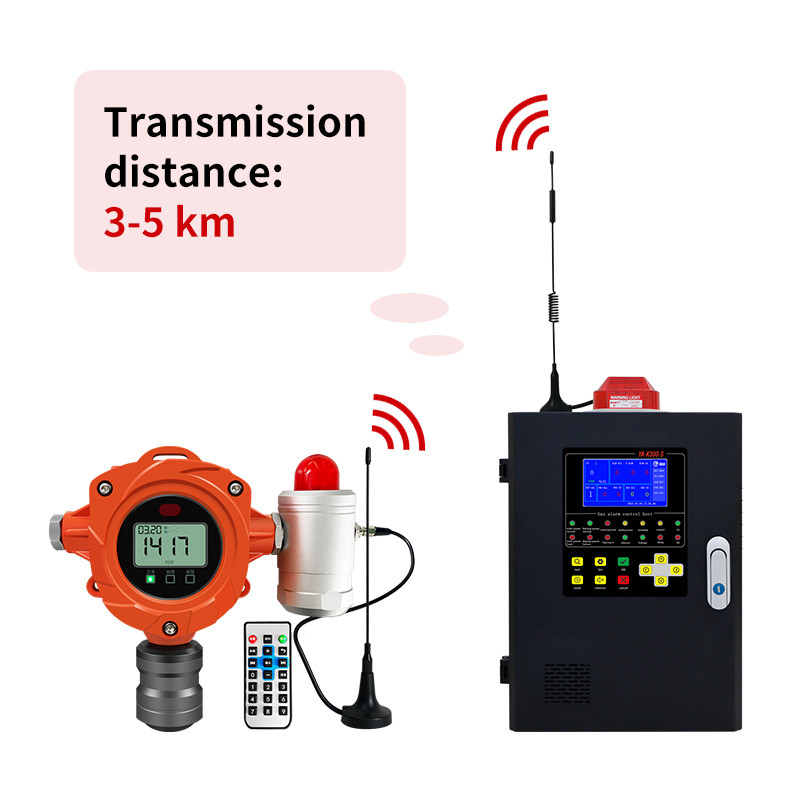

Communication between the detector and the controller distance	≤1200m
Output signal	RS485, 4-20mA
Installation method	Wall-mounted
Dimensions	Model with backup battery: 492304100mm; Model without backup battery: 43228483mm

Product Features

CLICK MORE＞＞＞

FAQ

Q1: How many MOQ?
A: MOQ= 1piece
Q2: How about the Lead time?
A: We can dispatch within 1-3 days after order confirmed.
Q3: Who take charge transportation fee?
A: We can quote it based on your order,you can choose.
Q4: Do you offer the guarantee for your products?
A:Yes, we offer 12 months warranty for our products.
Q5: What certificates can you support?
A: Explosion-proof CNEX,ISO9001, CE and ATEX.
Q6:Is it ok to print my logo on the gas detector?
A: Yes, OEM and ODE are available.
Q7:Can I get some discount?
A: Different products have different discount,please contact us for details.
Q8: Can I pay by T/T?
A: Yes,you can,T/T and paypal are supported.
Q9: Do you have after sales technical guidance?
A:Yes,any questions you can show us and our technical team will service for you at any time.
Welcome to write down your requirements in the below column and Click "Send" for more information,thank you.
