| Application | Industrial Automation, Electronic Equipment, Industrial Control, plc programming | Type | PAC, plc, Dedicated Controller |
| Place of Origin | Yunnan, China | Brand Name | LicOS |
| Memory | RAM | I/O number | 1616 |
| Communication interface | Other | Product name | PLC coupler module |
| Condition | 100%new 100%Original | Warranty | 12 Months |
| Package | Carton Package | Service | OEM.ODM |
| MOQ | 1PCS | Quality | 100% Strictly Tested |
| Product size | 50*98*94mm |
|
Product Name
|
Motion control module
|
|
Model
|
MC601-CPU3310G1616D
|
|
Brand
|
LicOS
|
|
Place Of Origin
|
Yunnan，China
|
|
Condition
|
100% New 100% Original
|
|
Series
|
MC600 series
|
|
Product Function
|
Completes the execution of user programmes, completes
logic control, and completes complex motion control.
|
|
Application
|
Medium to large PLC applications such as process
control, logic control, motion control, etc.
|
|
Core Points
|

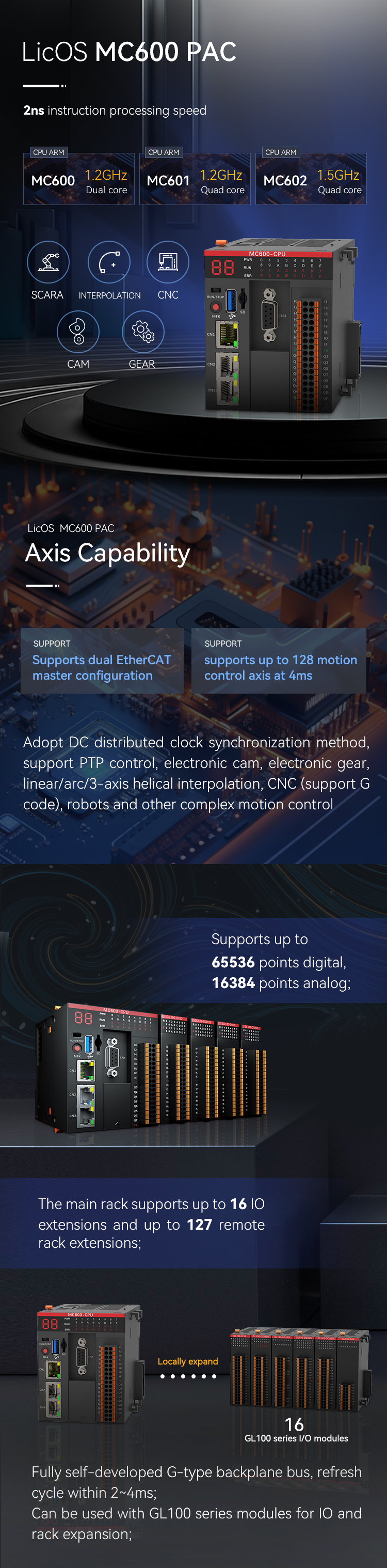

★1. CPU main frequency: dual-core * 1.2GHz.
★2. Support IEC61131-3 programming language (LD,
FBD, IL, ST, SFC, CFC).
★3. CPU module supports a variety of industrial field bus. ★4. CPU module supports a variety of industrial fieldbus protocols: Ethernet/IP, Modbus TCP, ModbusRTU, CANopen, Profinet, EtherCAT and so on. ★5. can communicate with the host computer through a variety of network protocols: support for OPC UA Server, MQTT, Modbus TCP, TCP/IP function. ★6. 128M programme storage space, 128M data storage space, 2M can achieve the data power-off hold, 32G expandable storage space. ★7. 4ns/basic instruction instruction running speed. ★8. can be configured through the Web for network information. ★9. integrated with the standard backplane bus, the body supports a maximum of 16 GL100 I/O modules (16 * 32 = 512 points), the first and last refresh time is less than 5ms. ★10. 127 remote I/O racks can be extended through fieldbus to achieve large-scale I/O point control. EtherCat supports 16 bus axes (32 axes in dual-master mode). ★11. support PTP control, electronic cam (flying shear, rotary cut, tracking shear, follow, synchronous), electronic gear, linear/arc/3-axis helical interpolation, CNC (support G code), robotics (Delta, SCARA, Portal, Tripod, gantry, Bipod and 4-axis palletising, 6-axis free-jointed robots), etc., and can be used for complex motion control. |
|
Technical consulting support
|
Yes
|
|
Warranty
|
1 year
|
|
Product Feature
|

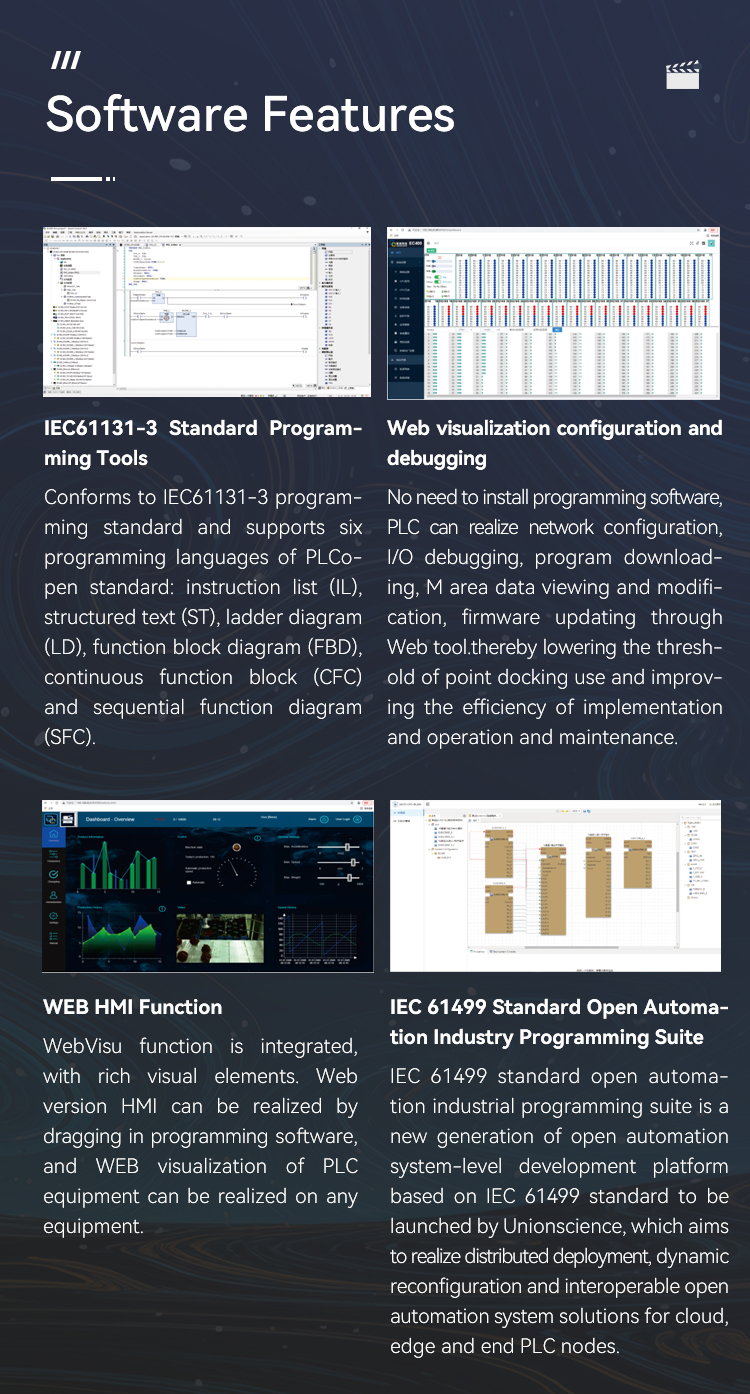

1. Support six languages (LD, FBD, IL, ST, SFC, CFC)
that comply with IEC 61131-3 programming
standards.

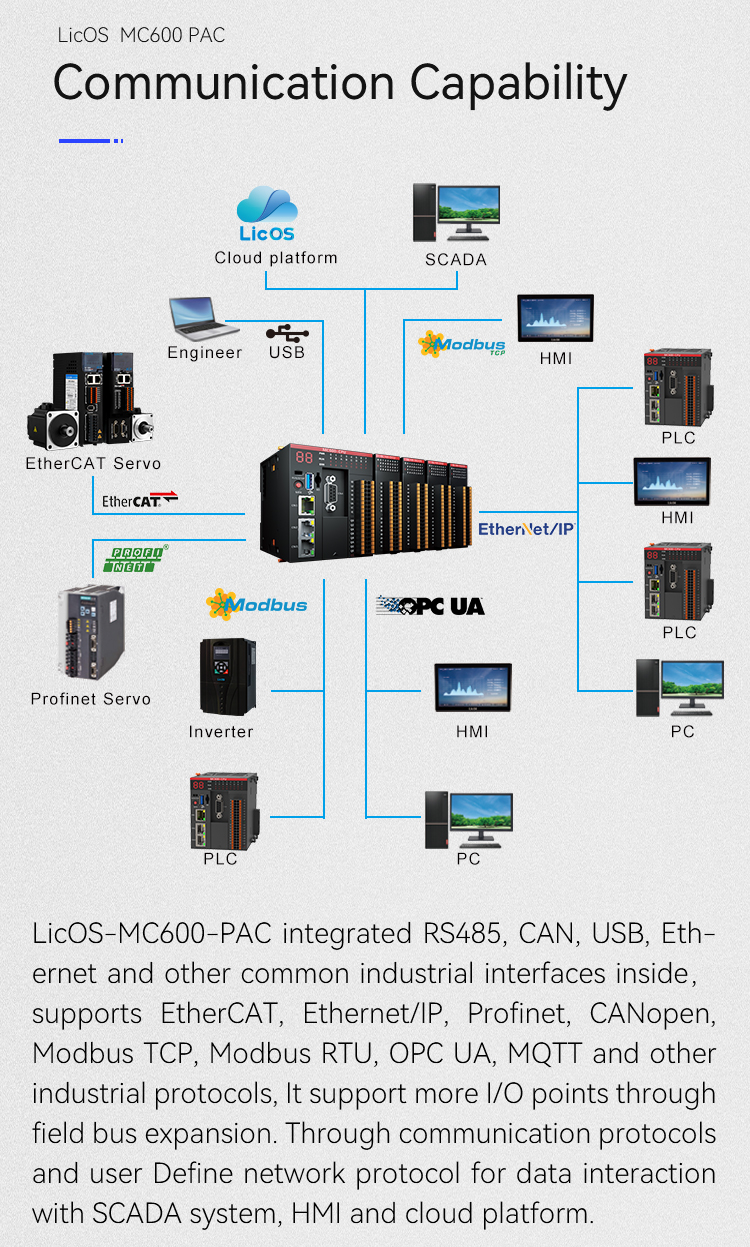

2. Support Cam, Gear, CNC, SCARA, ROBOT motion control components, Supports up to 64 axis. 3. Up to 127 remote racks can be extended via fieldbus. 4. Maximum analog channel: 8192 ~ 32768 points; Maximum digital channel: 32768 ~ 131072 points. 5. Support Profinet, EtherCAT, Modbus TCP, EtherNet/IP, CANopen and other industrial fieldbus. 6. Do not need to install programming software can be realized through Web tools PLC network configuration, I/O debugging, program download, View and modify data in Area M, update firmware, etc. 7. Integration of WebVisu function, with rich visual elements, can be achieved in the programming software by dragging, The Web version of the HMI allows you to browse PLC devices on any device via a Web browser. 8. Through OPC UA, Modbus TCP, Modbus RTU, MQTT and other standard communication protocols, as well as user Define network protocol for data interaction with SCADA system, HMI and cloud platform. |
|
Product model
|
MC611-CPU3S310G1616D
|
MC611-CPU3S310G1616S
|
MC612-CPU3A310G1616D
|
||||
|
Main frequency of processor
|
|||||||
|
Memory
|
Used in programs
|
64M
|
64M
|
64M
|
|||
|
For data
|
128M + 4M power-down holdover
|
128M + 4M power-down holdover
|
128M + 4M power-down holdover
|
||||
|
Expandable memory
|
32G, SD card pluggable
|
32G, SD card pluggable
|
32G, SD card pluggable
|
||||
|
Storage mode
|
Nand Flash permanent storage, no battery backup
required.
|
||||||
|
Programming mode
|
IEC61131-3 Programming Language
(LD/FBD/IL/ST/SFC/CFC)
|
||||||
|
Program execution mode
|
Compile and execute
|
||||||
|
Maximum capacity of IO point
|
Remote IO site
|
127
|
127
|
127
|
|||
|
Number of I/O modules
|
2032
|
2032
|
2032
|
||||
|
CPU body module integrated IO input
|
Number of channels
|
16
|
16
|
16
|
|||
|
Contact type
|
Transistor, (Source/Drain)
|
Transistor, (Source/Drain)
|
Transistor, (Source/Drain)
|
||||
|
CPU body module integrated IO output
|
Number of channels
|
16
|
16
|
16
|
|||
|
Contact type
|
Transistor, (drain)
|
Transistor, (Source)
|
Transistor, (drain)
|
||||
|
Communication interface
|
RS485
|
2
|
2
|
2
|
|||
|
RS422
|
0
|
0
|
0
|
||||
|
RS232
|
1
|
1
|
1
|
||||
|
CAN
|
1
|
1
|
1
|
||||
|
RJ45
|
2 (Switch) + 1
|
2 (Switch) + 1
|
3
|
||||
|
Communication protocol
|
EtherNet/IP
|
√
|
√
|
√
|
|||
|
EtherCAT
|
√
|
√
|
√
|
||||
|
profinet
|
√
|
√
|
√
|
||||
|
MQTT
|
√
|
√
|
√
|
||||
|
OPC UA Server
|
√
|
√
|
√
|
||||
|
Modbus TCP
|
√
|
√
|
√
|
||||
|
Canopen
|
√
|
√
|
√
|
||||
|
Modbus RTU/ASCLL
|
√
|
√
|
√
|
||||
|
Free agreement
|
√
|
√
|
√
|
||||
|
EtherCAT Motion Control Parameters
|
48 bus spool
|
48 bus spool
|
48 bus spool
|
||||
|
WebVisu
|
√
|
√
|
√
|
||||
|
Supply voltage
|
24VDC(-15%~20%)
|
24VDC(-15%~20%)
|
24VDC(-15%~20%)
|
||||
