Thank you for choosing the ezcap364 GameDock Extreme 2.1 gaming capture card. Prior to use, kindly read and retain this manual for future reference. Utilize the device to capture and stream HDMI video up to 2160p144 and 1440p144 resolutions. The card supports input and pass-through at resolutions of 4320p60 and 2160p144, while also accommodating microphone and audio line input for versatile audio mixing.

Overview
In the Box
ezcap364 GameDock Extreme 2.1x1, USB-C to A/C cable x1, Manual x1

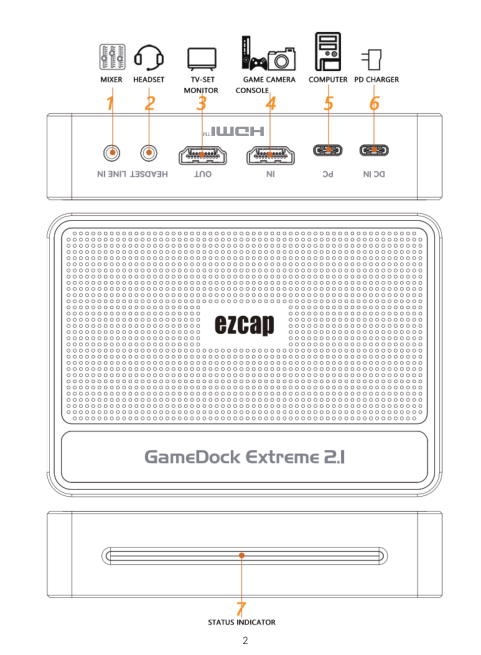

Product Overview and Connections
1. LINE IN: Connect to Audio mixer, and mix the audio with video together.
2. Headset: 3.5mm audio for output to earphone and microphone
input(CTIA).
3. OUT: HDMI output port, connect to TV or monitor.
4. IN: HDMI input port, connect to game console or other video
source.
Supports HDR and VRR input. Supports LPCM 5.1 and 7.1 channel audio
pass through.
Note: Please use the standard HDMI 2.1 cable to connect HDMI IN and OUT.
5. PC: To connect to computer USB port – USB 3.2 (Gen 1) Type-C.
6. DC IN: Charge PD3.0 protocol Device (the device – Android smartphone or
Laptop - connected to the PC port) and power supply to device.
7. Status Indicator: WHITE flashing - Power on. RED flashing - Software
detected device but no HDMI input. BLUE flashing- HDMI input. Colorful
slow flashing - Device running

Specifications:

Interface: USB 3.2 (Gen 1) Type-C

Video Input / Output (Pass-Through): HDMI™ 2.1 8K60 specification enabled

Supported Resolution: 4320p, 2160p, 1440p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Audio Input: HDMI 2.1, 3.5mm Line In (TRS 3-pole), 3.5mm headset microphone input (CTIA 4-pole)

Audio Output: HDMI 2.1, 3.5mm headset earphone output (CTIA 4-pole)

Max. HDR Pass-Through Resolution: 2160p144, 1440p144/120, 1080p240

Max. VRR Pass-Through Resolution: 3840 x 2160 – VRR(48-120 Hz), 1920 x 1080 – VRR(48-120 Hz).
Note: YCbCr420 VRR is not supported. Such as XBOX X1, please tick Allow YCC 4:2:2 settings to allow VRR

Max Record Resolution: 3840 x 2160/60fps, 2560 x 1440/144pfs, 2560 x 1080/60fps, 1920 x 1080/240fps, 1280 x 720/60fps

Video Format: YUY2, NV12, I420, RGB24, P010(HDR), MJPG

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade
dress and the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc
