Chinese 21mm Spindle Bore Cheap Small Metal Worker Manual Gap Bed Bench Dro Lathe Machine

Name: Chinese 21mm Spindle Bore Cheap Small Metal Worker Manual Gap Bed Bench Dro Lathe Machine
Brand: Yangzhou Eowin Import and Export Co., Ltd.
SKU: Tradewheel_2526870
Availability: InStock

FOB Price 1000 - 1500 USD / pieces

Contact Now

Quick Details (View All)

Automatic Grade	Manual	Setting Mode	Floor-type
Precision	Precision	Certification	ISO 9001
Condition	New	Spindle Bore	21mm
Taper of Spindle Bore	Mt3	Rang of Spindle Speeds(6 Steps)	50-2500rpm
Taper of Tailstock Quill	Mt2	Metric Threads Can Be Cut	0.4-3.5mm
Inch Threads Can Be Cut	8-44tpi	Motor Power	750W
Transport Package	Plywood Case	Trademark	HUAFEI
Origin	Jiangsu China	HS Code	845899000
Production Capacity	50000 Units/Year

Product Details

Product Description

Company Info.

Overview
Standard Accessories
Optional Accessories
Feature

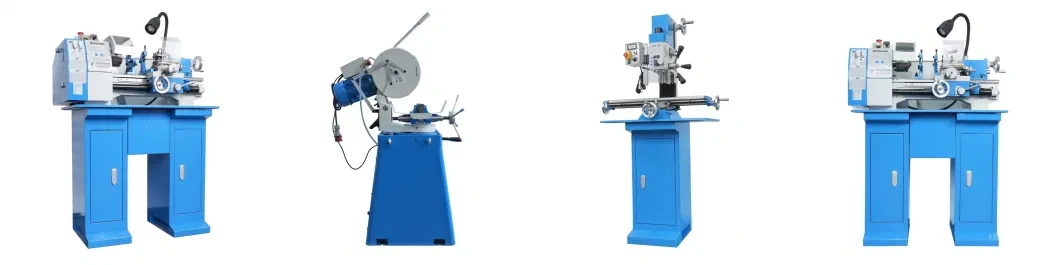

More products
Company Profile
Certifications
Packaging & Shipping
FAQ

Product Description

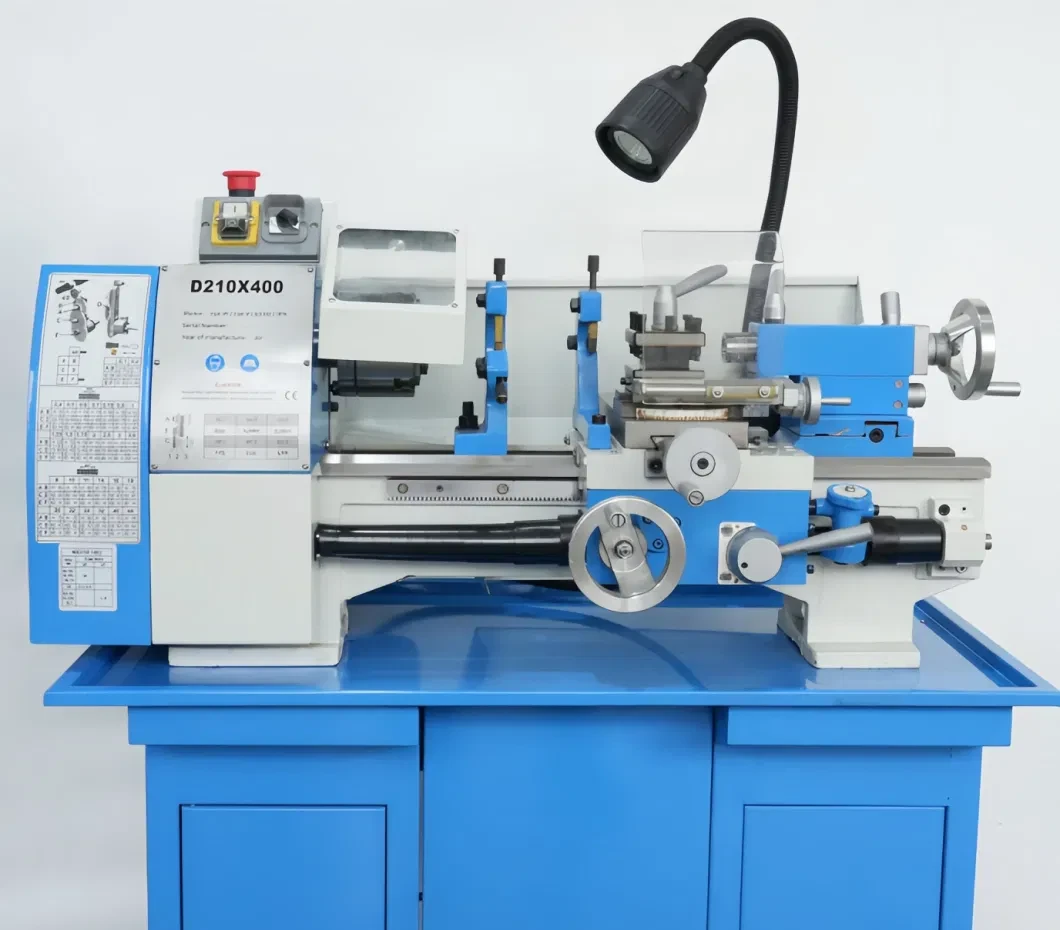

Model	TURN210x400VARIO	TURN250x550VARIO
Max.swing over bed	210mm	250mm
Distance between centers	400mm	550mm
Spindle bore	21mm	21mm
Taper of spindle bore	MT3	MT3
Rang of spindle speeds(6 steps)	50-2500rpm	50-2500rpm
Taper of tailstock quill	MT2	MT2
Metric threads can be cut	0.4-3.5mm	0.4-3.5mm
Inch threads can be cut	8-44TPI	8-44TPI
Motor power	750W	750W
Weight(NW/GW)	110/130Kg	125/150Kg
Package size(LxWxH)	980x560x580mm	1200 x 560 x 580mm

3-jaw chuck Φ100/Φ125	Splash guard	Chip pan	Lathe chunk protection	Tool holder protection

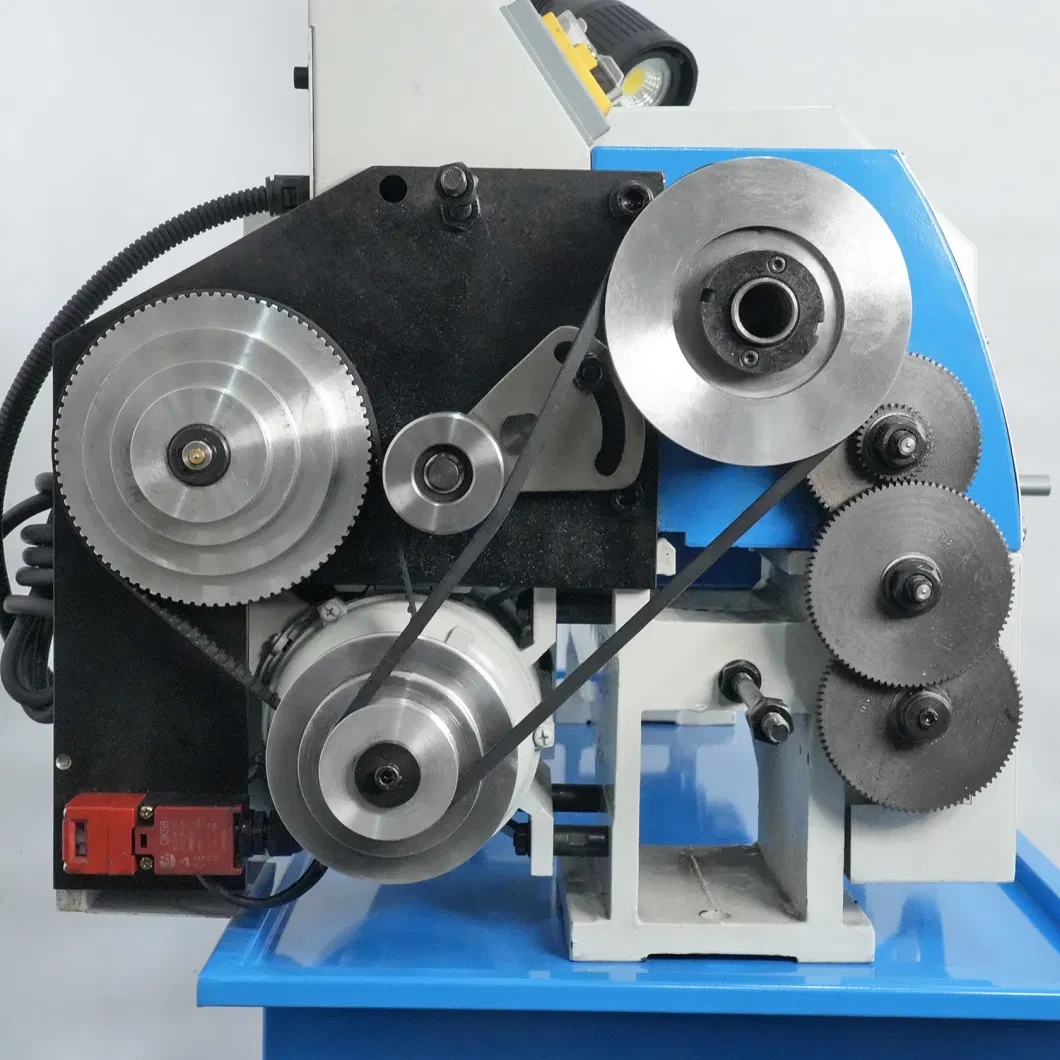

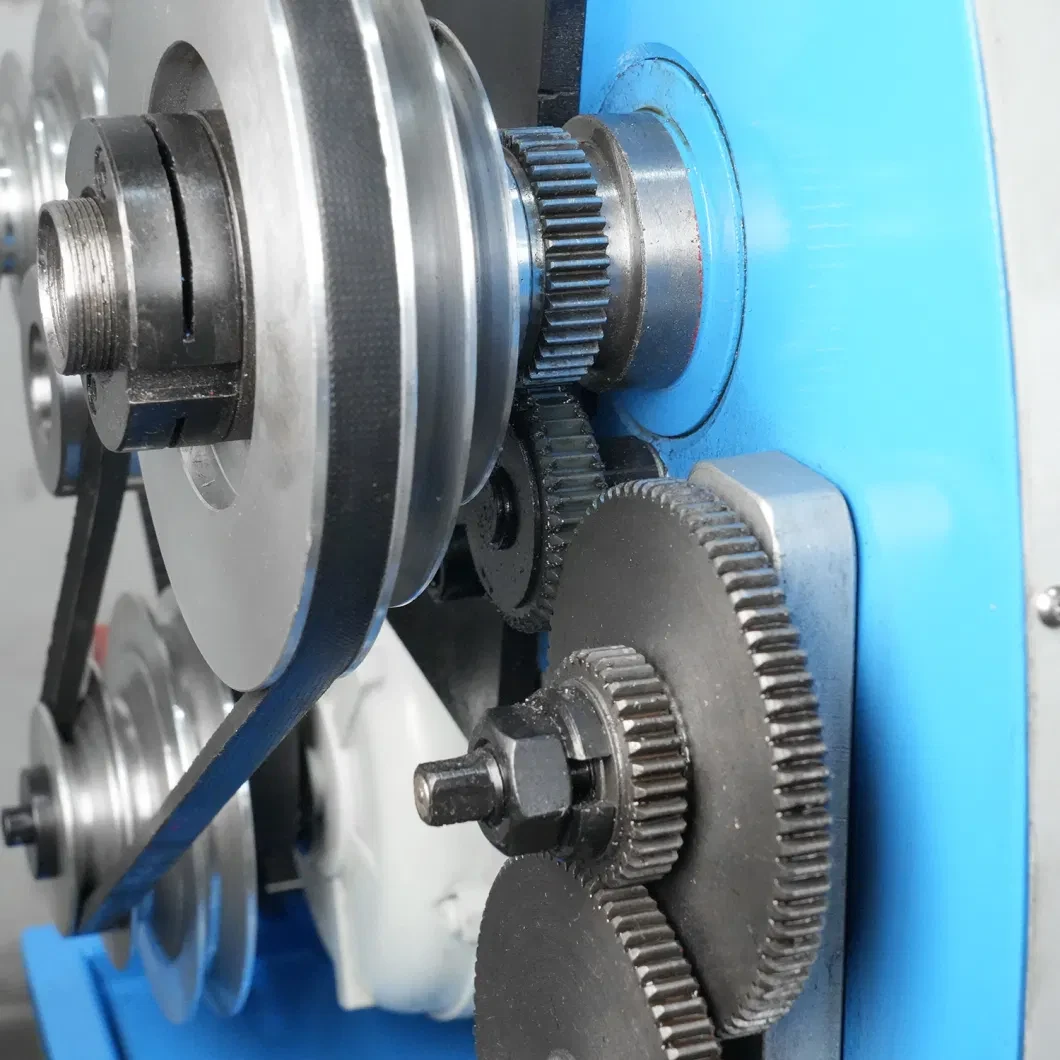

Quadruple tool holder spanner	Steady center MT3/MT2	HSS cutting tools	Change gears	Tools & Tool box

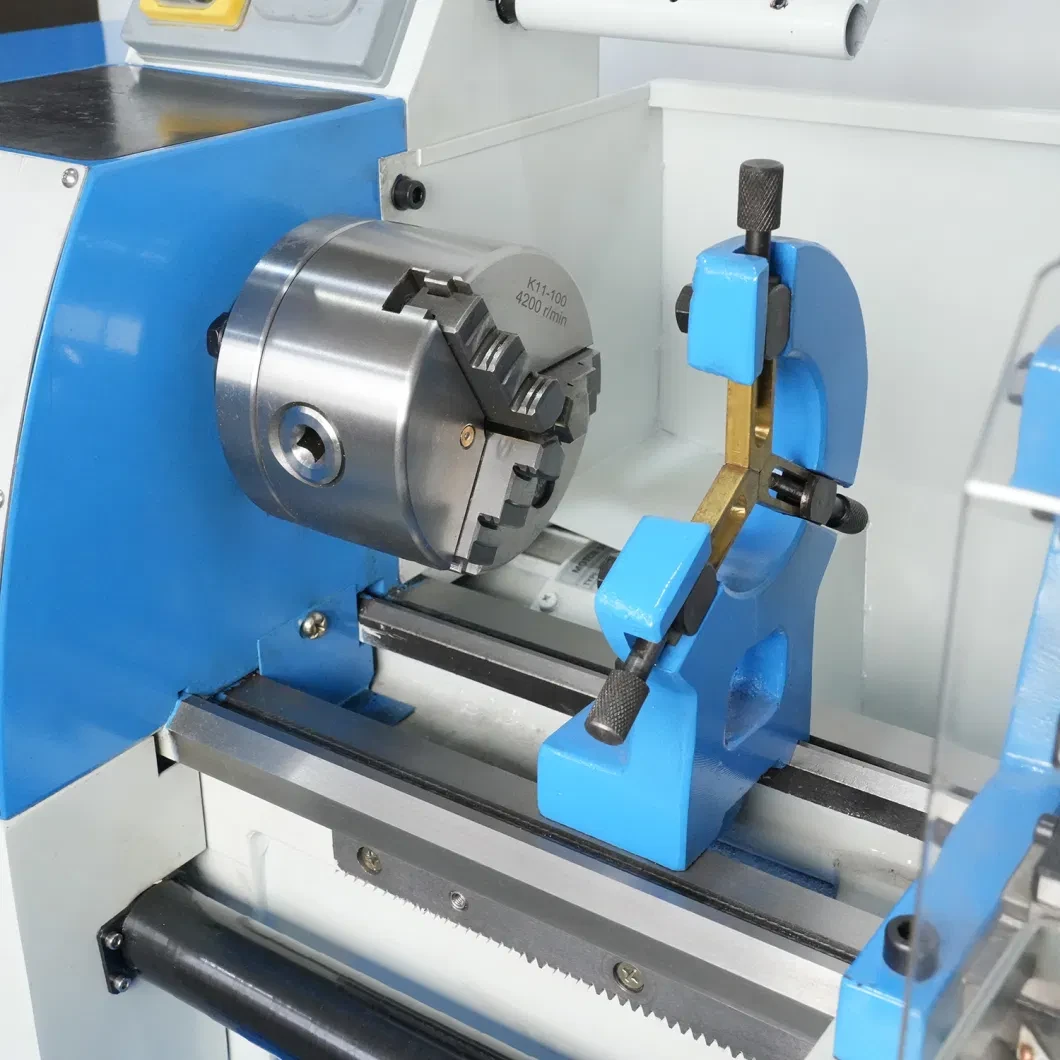

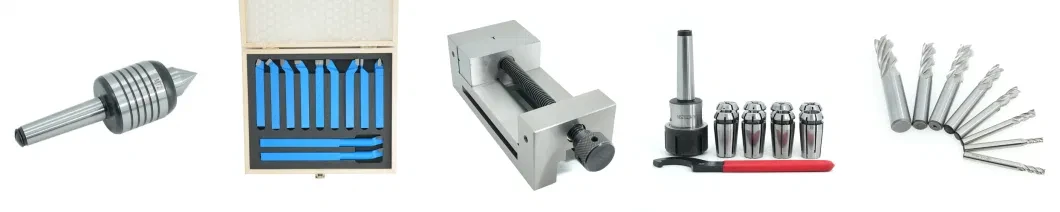

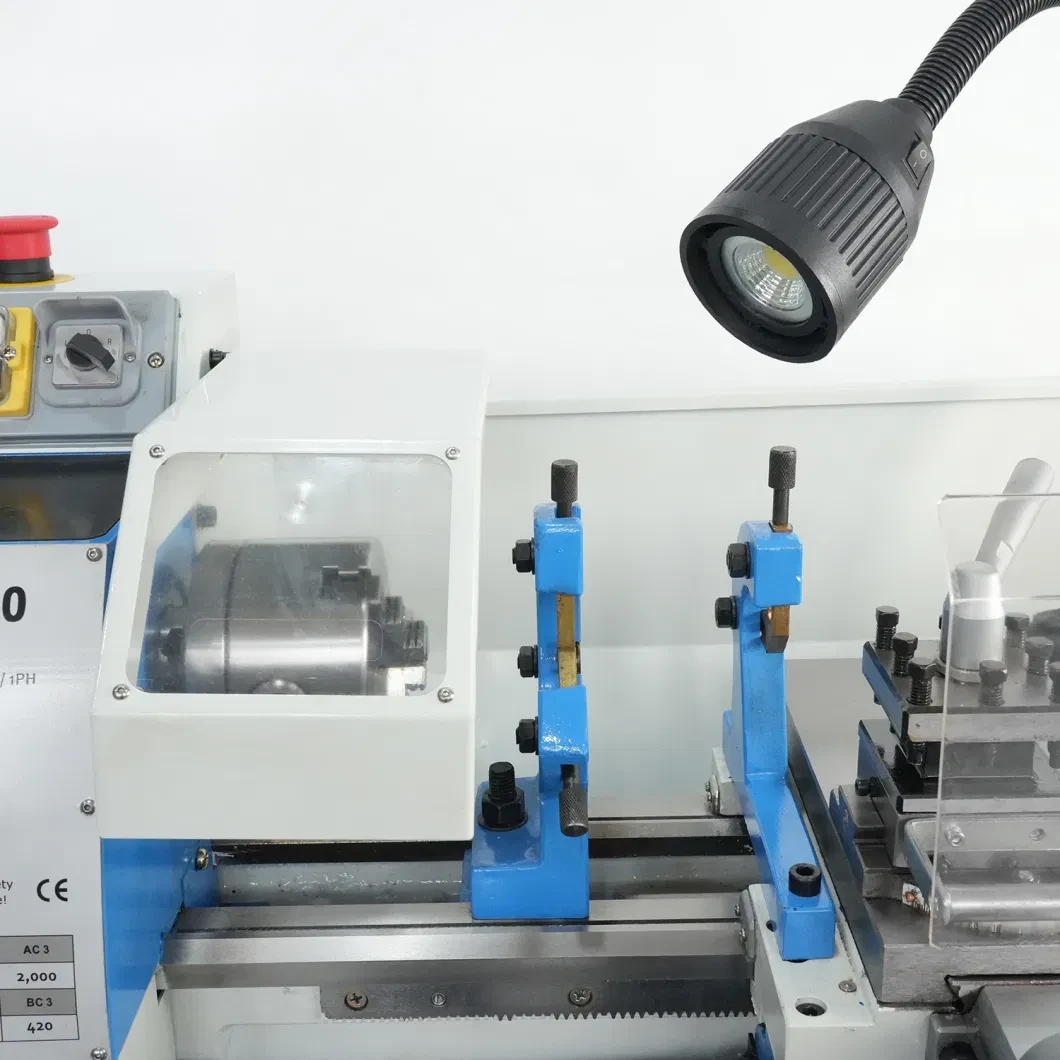

Steady rest	Follow rest	Face plate	Stand	4-jaw chuck Φ100/Φ125

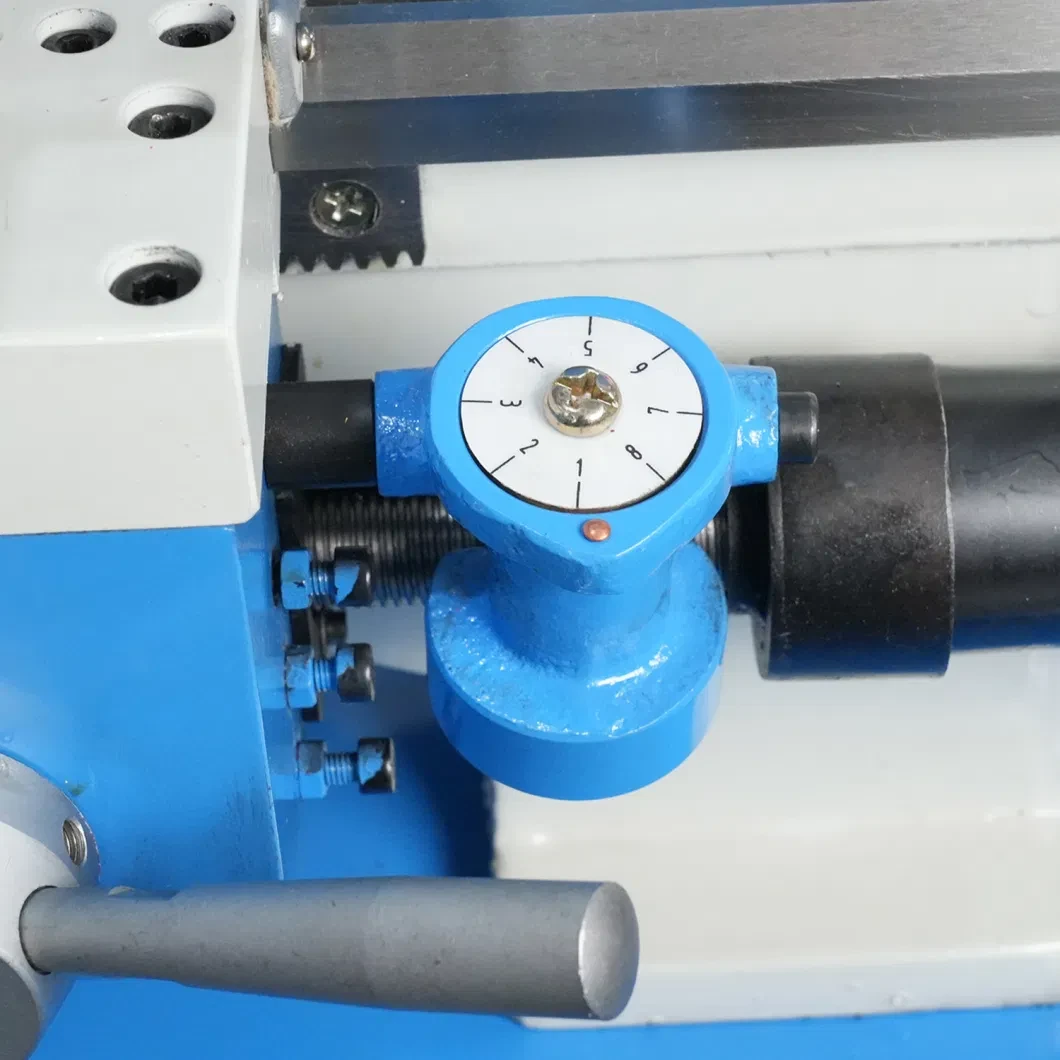

Live center MT3/MT2	Halogen Lamp	Coolant pump	Quick change tool post	Thread chasing dial

1:Widely useful, operation very easy, processing scope widespread
2:Guaranteed concentrlcity precision of the main spindle less than 0.009 mm

3:Concentlcity precision-lathe chuck smaller than 0.05 mm

4:Powerful, maintenance-free D.C.motor

5:Stepless spindle speeds from 50 to 1,250 rpm and 100 to 2,500 rpm

6:Induction-hardened and ground prismatic bed made from cast iron

7:High precision and hardened spindle

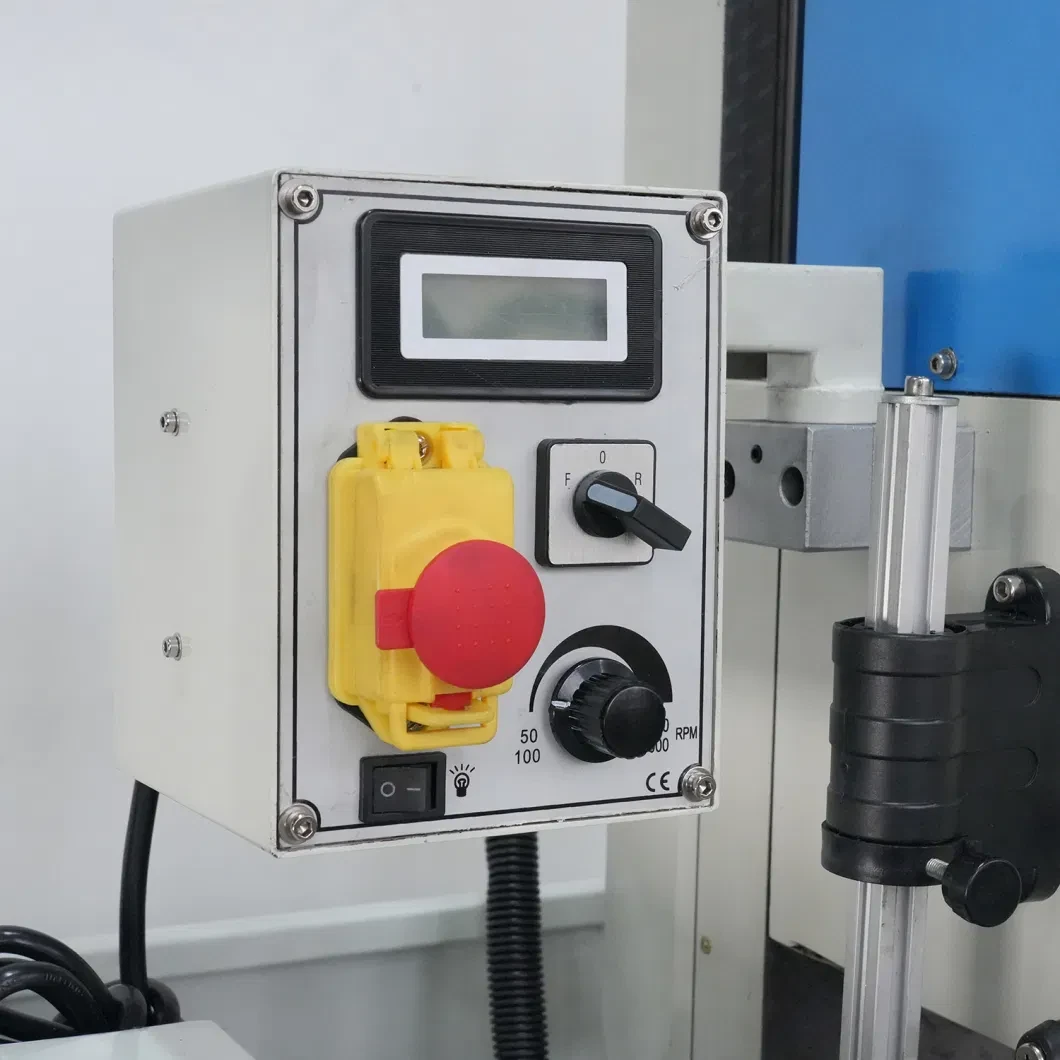

8:Safety magnetic and lock key European-standard switch

9:Cost-efficient, precise and of stable value

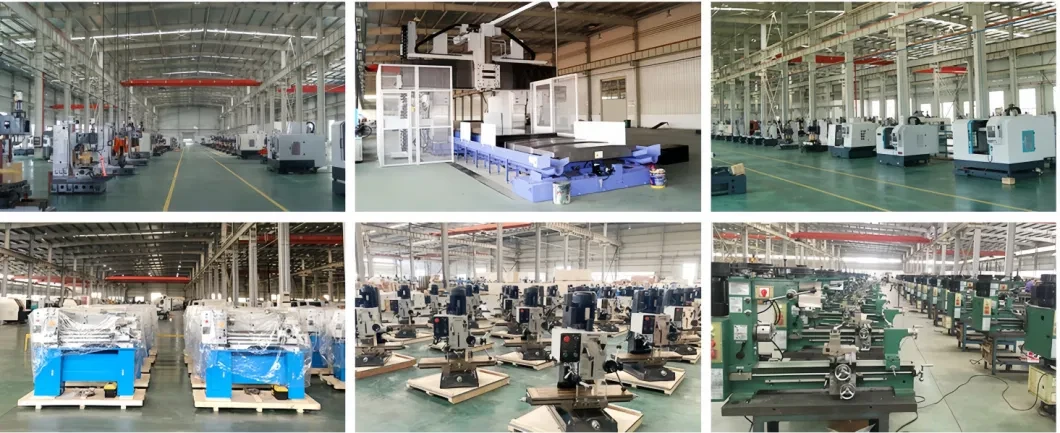

Company Profile:

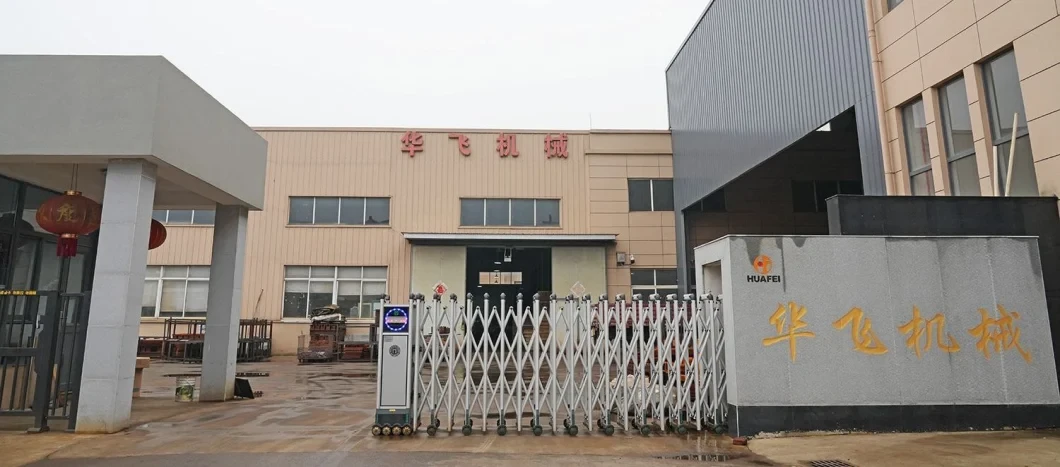

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.

Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.

Management ldea:

Take the good faith as this, depend on the scientific management, produce the first-class product, struggle the international market.
