Channel Letter Bending Machine AOK-S130

Quantity	1SET - 10SET	10SET - 100SETS
Price	USD5200	USD4200

Contact Now

Model No.	AOK-S130	Applier material	Stainless Steel ,galvanized sheet， Flat aluminum, Edged aluminum profile
Material thickness	0.3-1.4m	Material width	30-130mm / 30-200mm
Feeding	Auto feeding, manipulator feeding	Slotting	Auto slotting, slotting angle 45°- 135°
Bending	Auto bending, mini bending radius 3.5mm	Control system	LETTRO
Precision	0.05mm	Speed	60mm/s
Input file format	DXF, PLT, AI	Motor	AC Servo2 + Reducer1 Stepper 3 / AC Servo3 + Reducer1 Stepper 2
Reducer	1:16	Align	Auto
Voltage	1PH AC220V 50/60HZ	Working Power	Total 2500W Working less 1500w / Total 3000W Working less 2000w
Working Pressure	0.6-0.8mpa	Dimension	25007471494mm / 25007471564mm
Weight	500kgs / 600KG

Letter Bending Machine - Multi bending

AOK-S130

1, Applier material : Flat aluminum , Stainless steel, Galvanized sheet, Iron sheet

2, Working principle : Auto feeding, auto slotting, auto bending.

3, Cutting / bending way : front cutting and bending.

4, Bending rollers : Cast steel chrome plated

5, Two cutters :

Upper cutter - Planer knife for slotting stainless steel, Galvanized sheet, Iron sheet

Lower cutter - Milling cutter for aluminum slotting

Features

Photos	Features
	AOK-S130	AOK-S200
	Auto Feeding manipulator feeding Stepper motor support	Auto Feeding manipulator feeding AC servo motor support
	Upper cutter - Planer knife for stainless steel, Galvanized sheet, Iron sheet Lower cutter - Milling cutter for aluminum

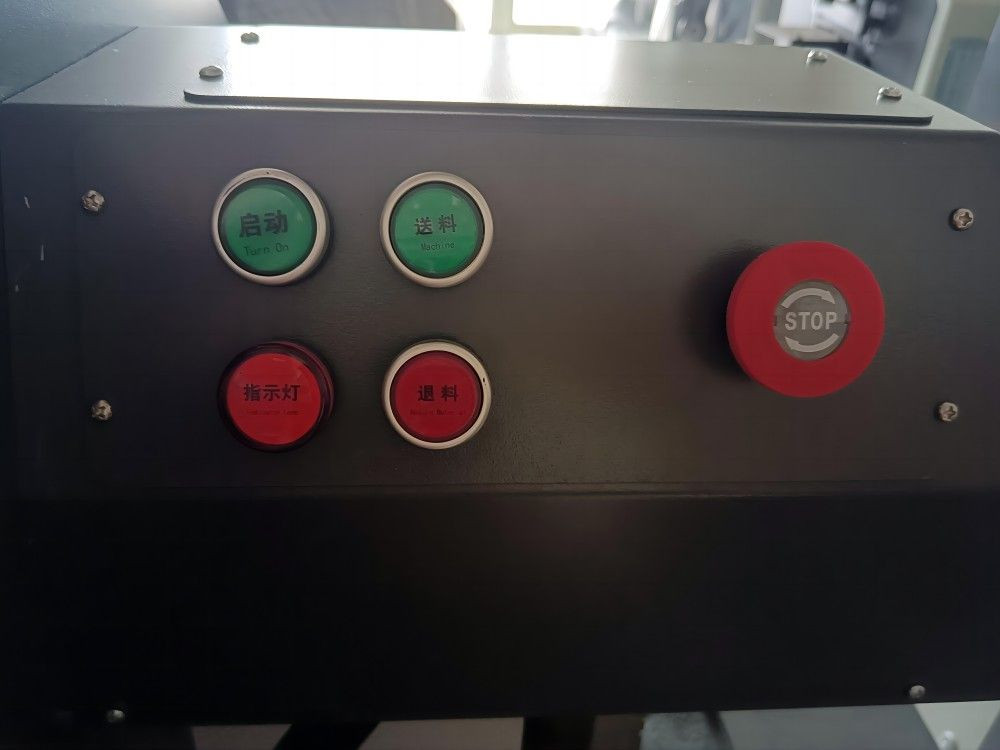

	Control buttons

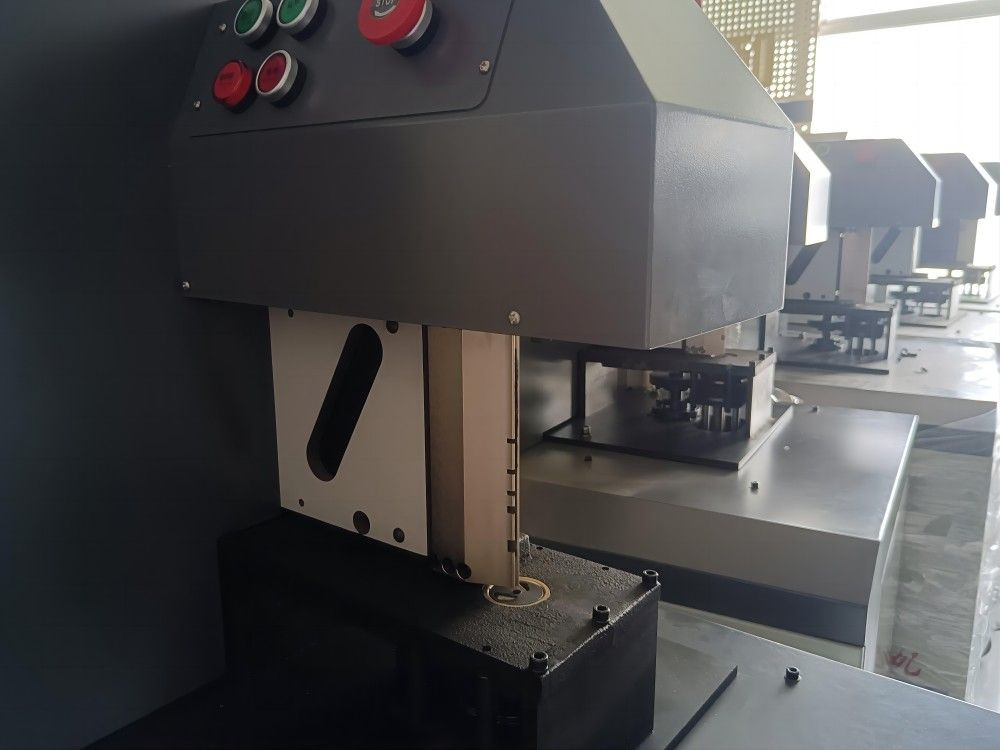

	Bending roller : Cast steel chrome plated

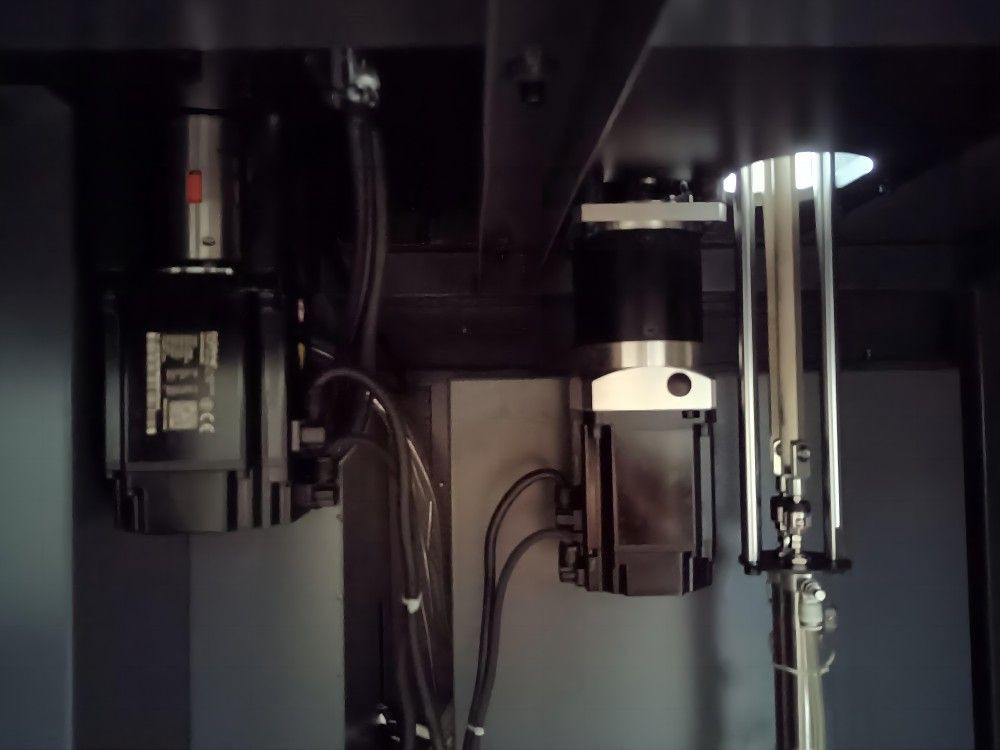

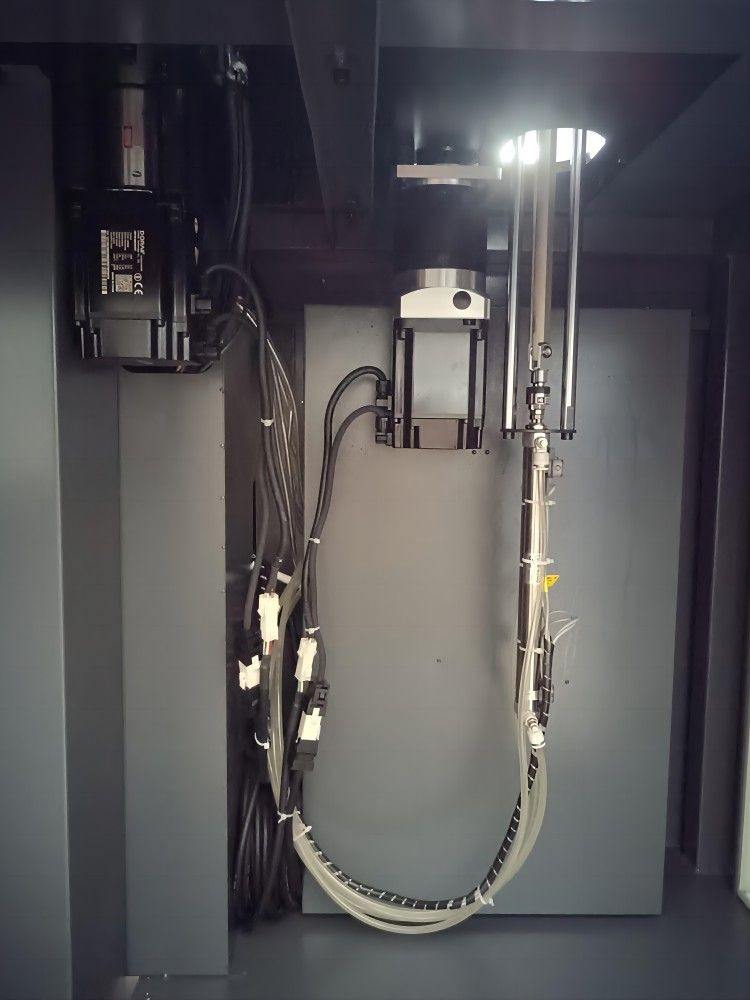

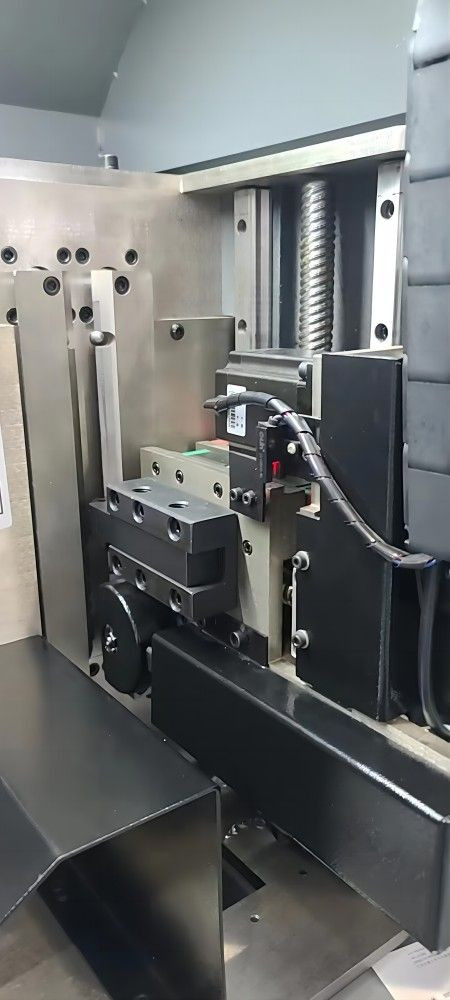

	Inside structure
	Material stand
	Slotting : AC servo DRANA 750W Bending : AC servo +Reducer Servo: DRANA 750W Reducer : 1:16	Slotting , : AC servo DRANA 750W Bending : AC servo +Reducer Servo: DRANA 750W Reducer : 1:16

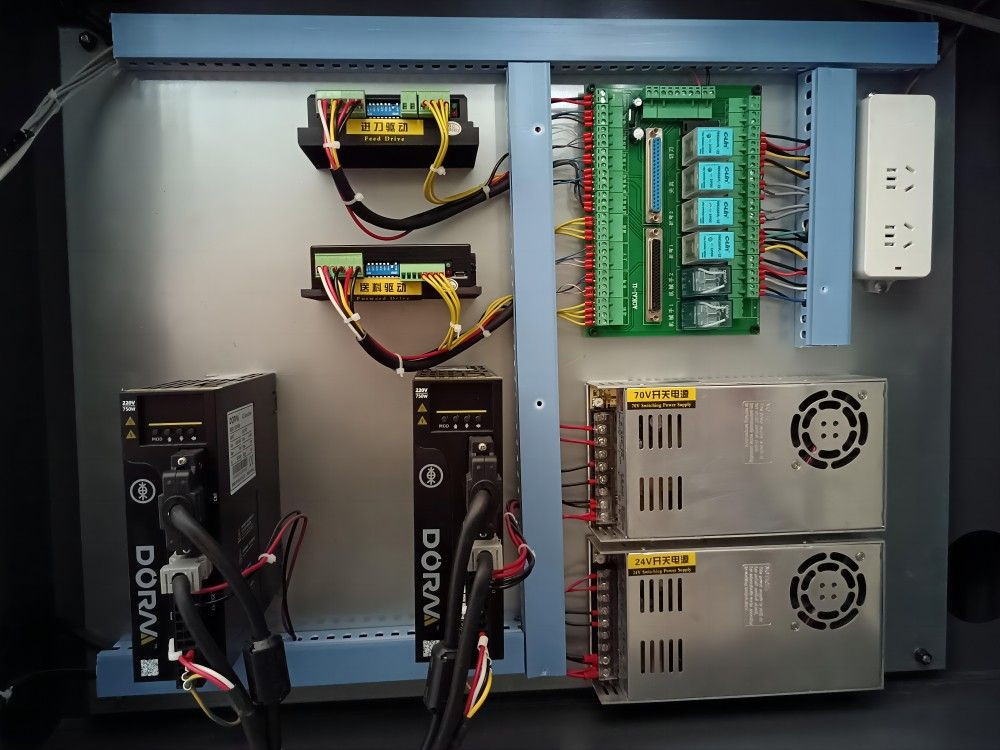

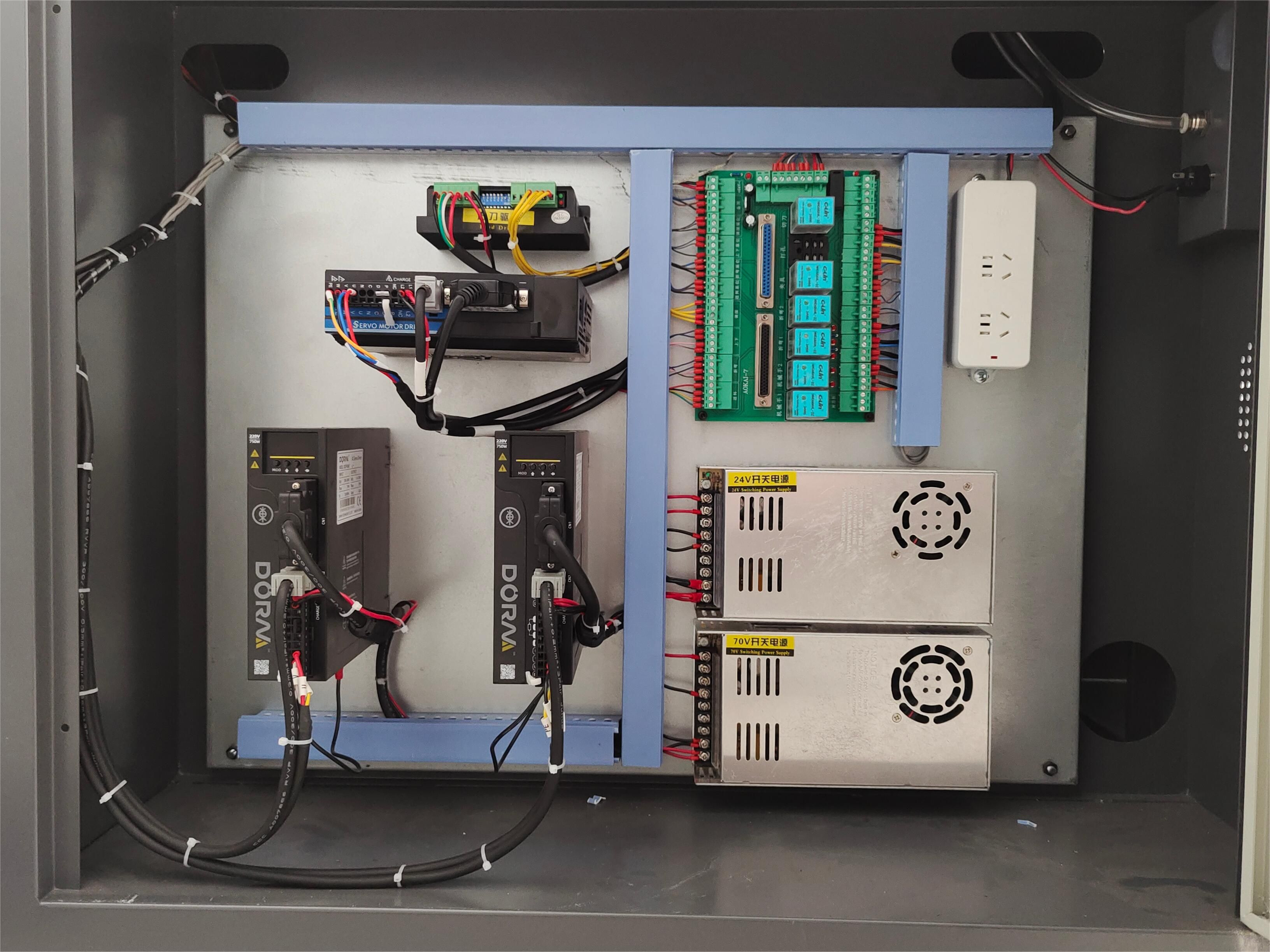

Control box
