3p/4p Automatic Transfer Switch ATS

Quantity	5 - 9	10 - 19	20+ - 20+
Price	US $800.00	US $750.00	US $700.00

Contact Now

Quick Details (View All)

Poles Number	1	Type	Circuit Breaker
Function	Conventional Circuit Breaker	Certification	VDE, ISO9001:2008
Rated Frequency (Hz)	50	Number of Pole	3
Product Name	Gw1	Rated Current	1250A
Protection	LSI	Application	Electric Power Transmission
MOQ	1 Piece	Rated Voltage	400V
Trademark	GGAOE	Origin	Zhejiang, China
HS Code	7201500010	Production Capacity	100000 Piece/Pieces Per Month

Product Details

Product Description

Company Info.

Overview
Products Description
Felds of Application
Company Profile
Certifications
Delivery
FAQ

Product Description

overview

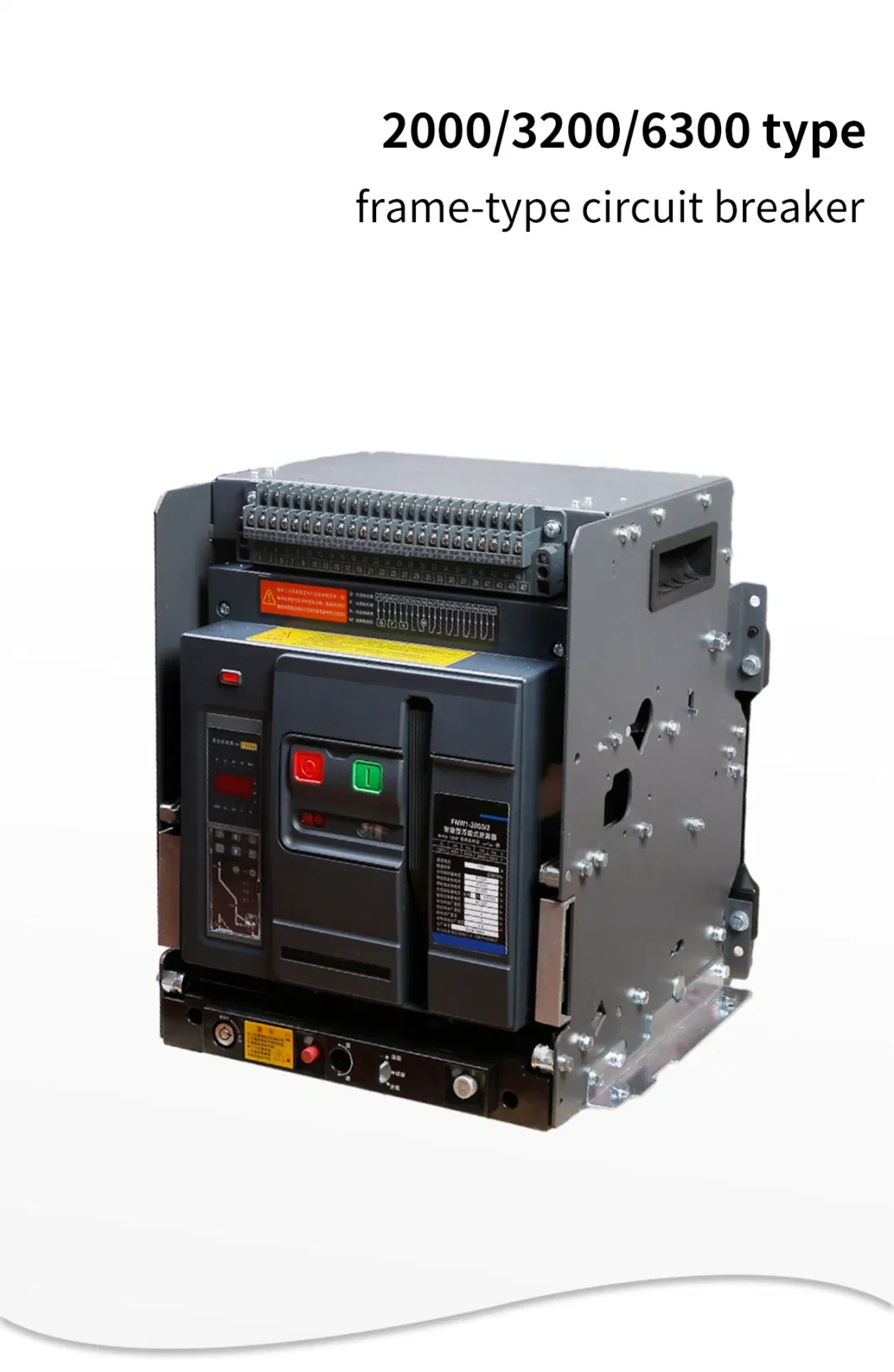

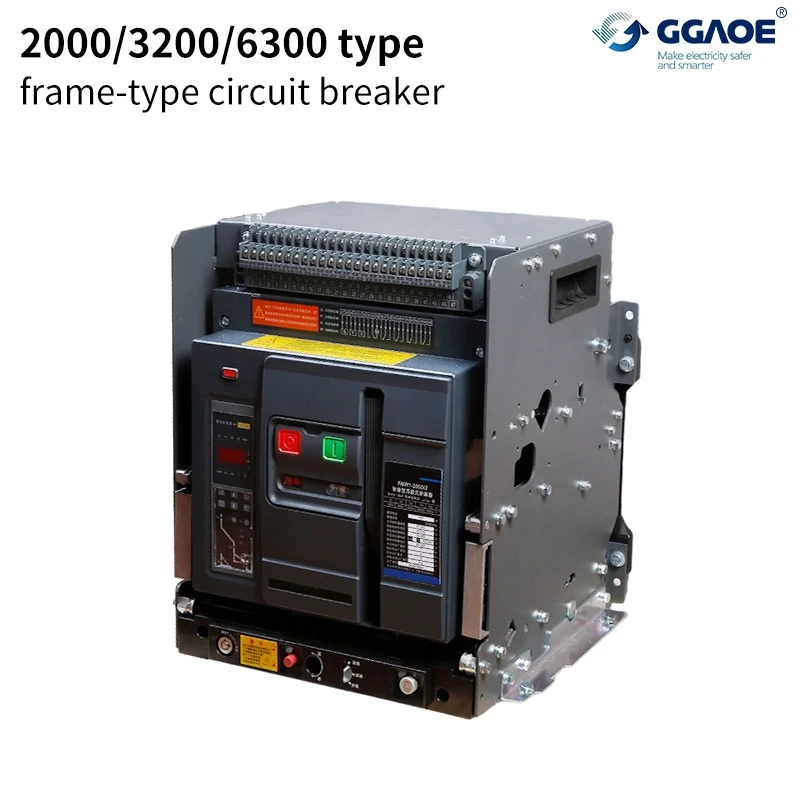

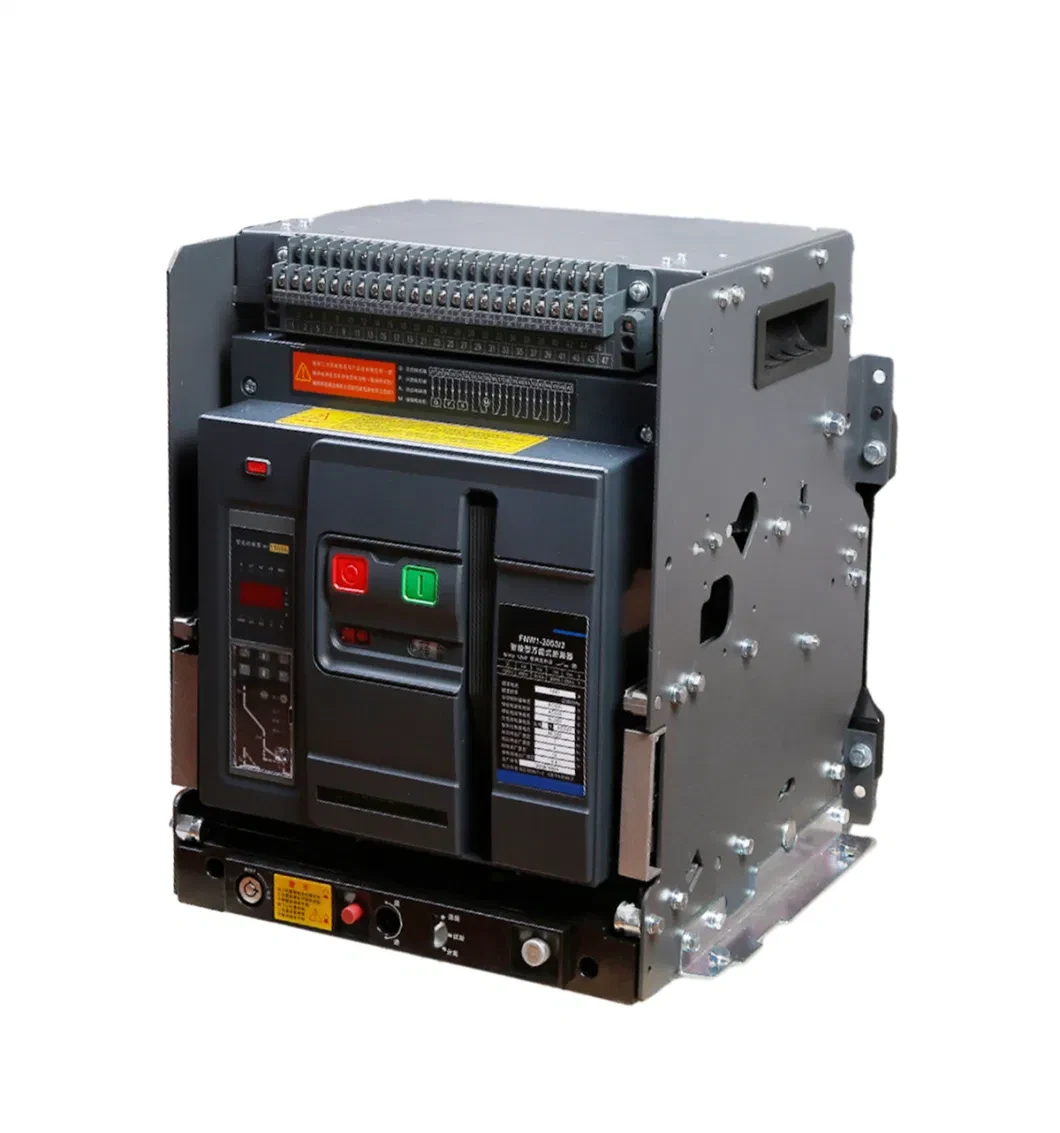

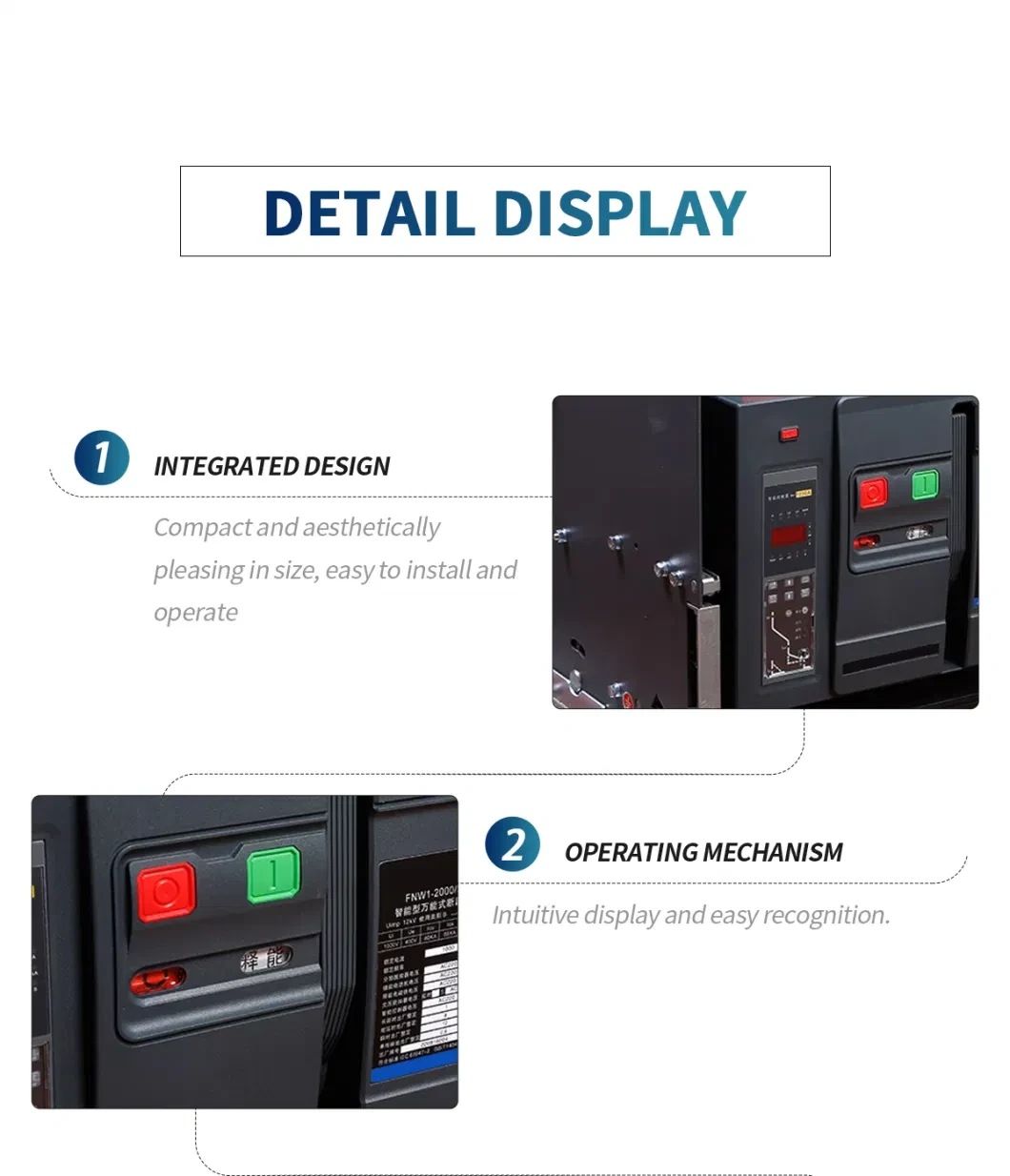

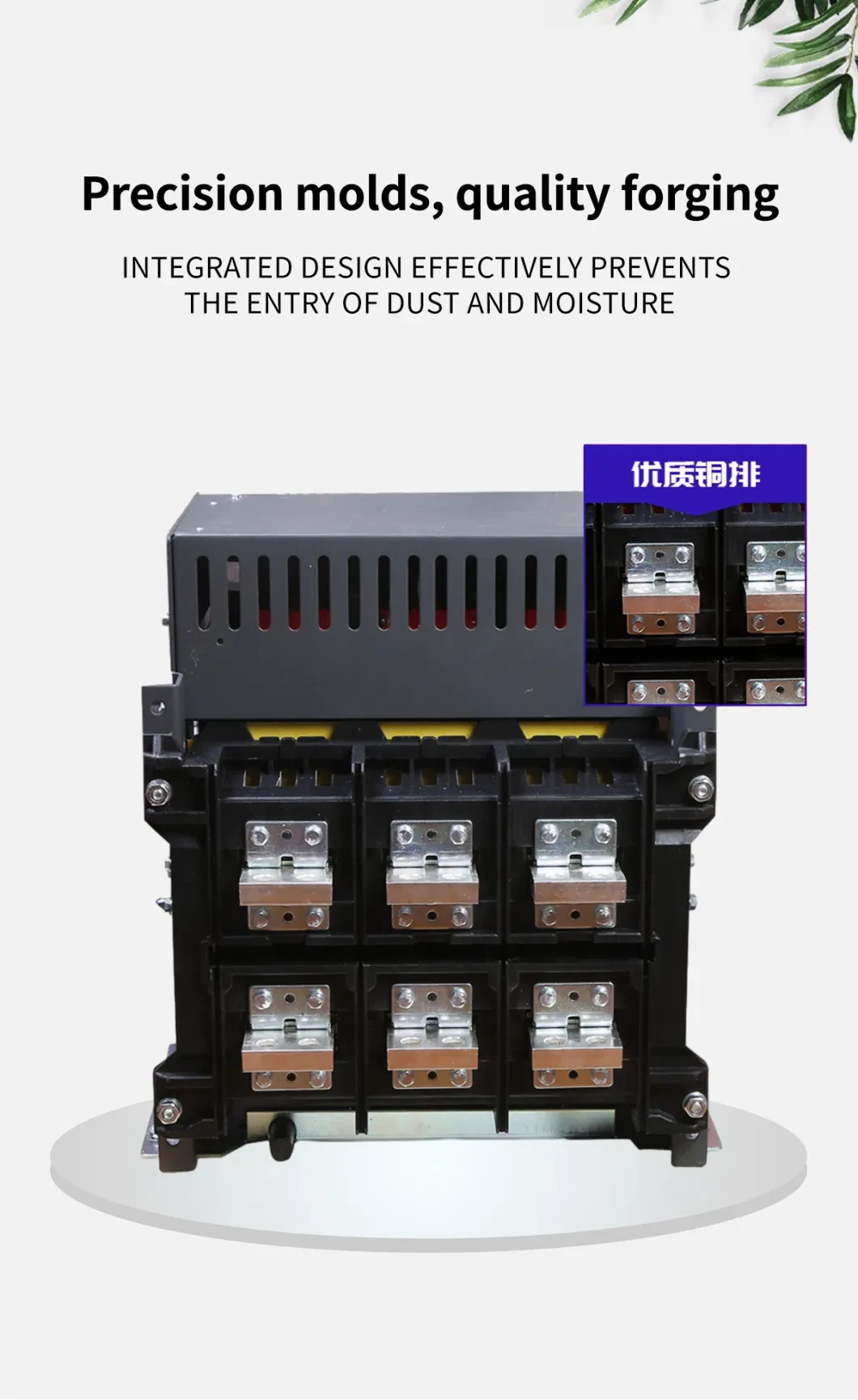

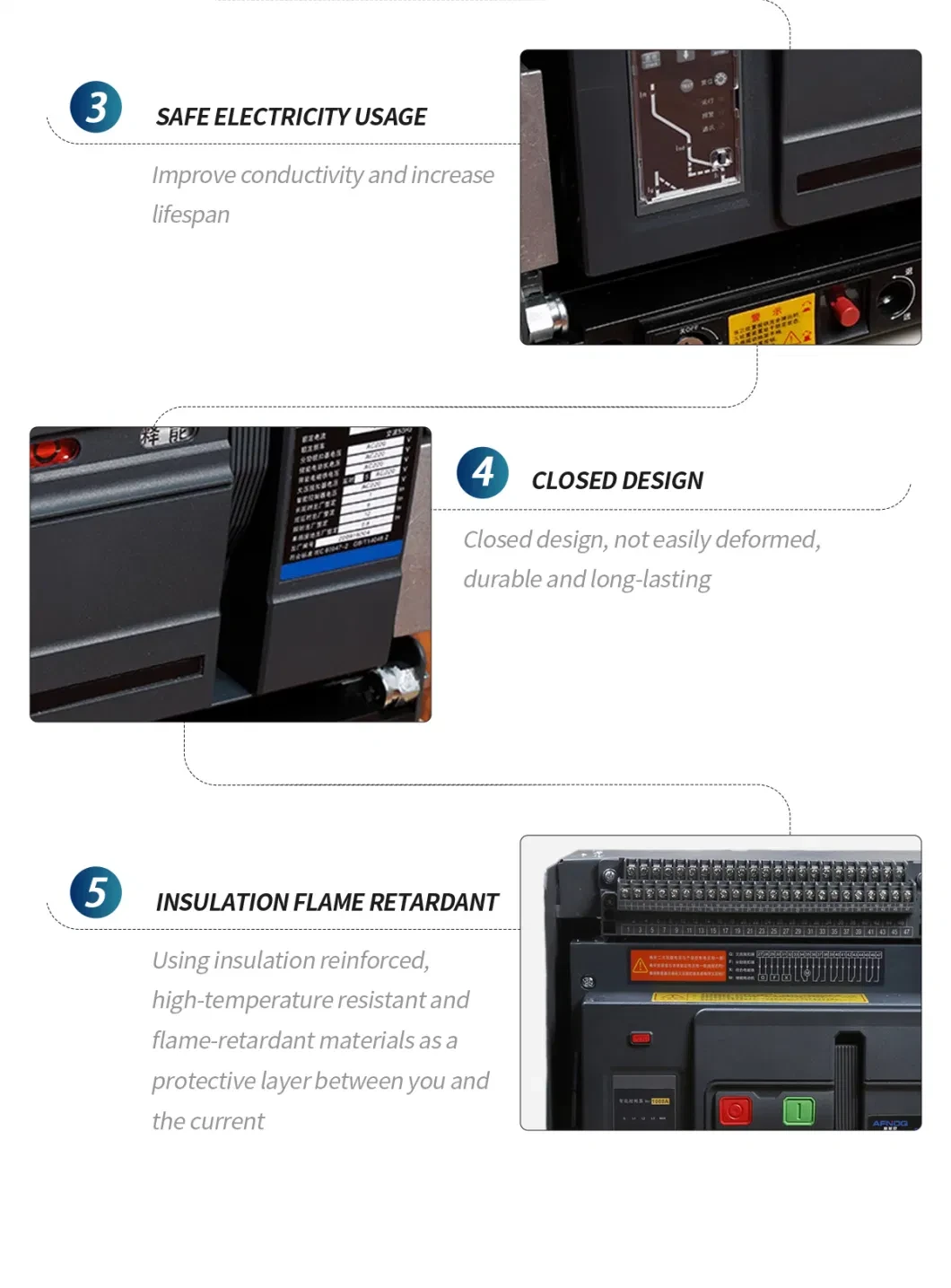

WCW1 series intelligent univeral circuit breaker (circuit breaker for short) applies at distribution network of AC 50Hz, rated voltage upto 600V( 690V), rated current 200A to 6300A, to distribute power and protect line and power supply equipments from fault demage of overload, under voltage, short circuit, single phase grounding. The circuit breaker has function of intelligent Protection with accurate selection to increase power supply reliability ths to avoid unnecessary power cut. It has open
communication interface to make "Four-remote type Control" to fulfill requirements of control center and automatic system. The circuit breakers impulse withstand voltage is 8000V when at altitude 2000 meter (Clarity according to standards of different altitude not over 12000V.)

odel					GW3-1600	GW3-2000	GW3-2500	GW3-3200	GW3-4000	GW3-6300	GW3-7400
Number of poles					3p, 4p	3p, 4p	3p, 4p	3p, 4p	3p, 4p	3p, 4p	3p, 4p
Rated current In (A)					200, 400, 630, 800, 1000, 1250, 1600	630, 800, 1000, 1250, 1600, 2000	1600, 2000, 2500	2000, 2500, 2900, 3200	2900, 3200, 3600, 4000	4000, 5000, 5500, 6300	4000, 5000, 6300, 3900, 7400
Rated voltage (V)					AC400, 690V, 50Hz
Rated Insulation voltage					AC1000V 50Hz
Rated impulse withstand voltage Uimp (KV)					12
Power frequency withstand voltage U (V)					AC3500V 1min 50Hz
Rated ultimate short-circuit breaking capacity Icu (KA)			400V	65	80	85	100	100	135	150
Rated ultimate short-circuit breaking capacity Icu (KA)				690V	42	65	65	75	85	100	100
Rated service short-circuit breaking capacity lcs (KA)			400V	55	65	85	80	100	135	150
Rated service short-circuit breaking capacity lcs (KA)				690V	42	50	65	65	85	100	100
Rated short time withstand current lcw (KA)			400V	55	65	85	80	100	135	150
Rated short time withstand current lcw (KA)				690V	42	50	65	65	85	100	100
Rated short-circuit making capacity lcm (KA)			400V	143	187	187	220	220	297	330
Rated short-circuit making capacity lcm (KA)				690V	88.2	143	143	187	187	220	220
Complete break-time					≤30
Closing time					≤50
Utilization category					B
Isolation function					Circuit breaker suitable for isolation
Intelligent controller model					L/M/H
Performance	Electrical life (times)	400V	7000	8500	8500	5000	5000	3000	2000
	Electrical life (times)			690V	5000	4000	4000	3000	3000	3000	1500
		Mechanical life (times)			16000	13000	13000	11000	11000	7000	7000
Outline dimension (mm)	Withdrawable type	3P	354×282×357	438×375×456	438×375×475	438×435×471	438×435×490	438×799×490	438×894×530
	Withdrawable type			4P	354×352×357	438×470×456	438×470×475	438×550×471	438×550×490	438×894×490	438×894×530
		Dixed type	3P	330×261×254	398×362×350	398×362×350	398×422×365	398×422×373.5	398×767×373.5	398×882×373.5
		Dixed type		4P	330×331×254	398×457×350	398×457×350	398×537×365	398×537×373.5	398×882×373.5	398×882×373.5
Standard					IEC60947-2
Certificate					CCC, CE
Operating ambient temperature					-25ºC ··+60ºC
Storage temperature					-40ºC ··+70ºC

Correction factor for temperature:

Ambient temperature			+40ºC	+45ºC	+50ºC	+55ºC	+60ºC
Allowable persistent operating current	1600A	1ln	0.99ln	0.96ln	0.90ln	0.87ln
		2000A	1ln	0.95ln	0.9ln	0.85ln	0.81ln
		2500A	1ln	0.95ln	0.9ln	0.85ln	0.81ln
		3200A	1ln	0.92ln	0.86ln	0.80l	0.74ln
		4000A	1ln	0.92ln	0.86ln	0.80ln	0.74ln
		6300A	1ln	0.94ln	0.88ln	0.82ln	0.76ln
		7400A	1ln	0.94ln	0.88ln	0.82ln	0.76ln

Correction factor for altitude:

Altitude	2000	3000	4000	5000
Power frequency withstand voltage U (V)	3500	3150	2500	2000
Correction factor for operating current	1	0.93	0.88	0.82
Correction factor for short-circuit breaking capacity	1	0.83	0.71	0.63

Ordering Instructions:

The following technical information should be provided when placing an order: Main wiring scheme number, purpose and single line system diagram, rated voltage and rated current rated short-circuit breaking current/distribution room layout plan and arrangement and configuration diagram of switchgear;
Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;
The models specifications and quantities of the main electrical components inside the switchgear;
When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;
